Delta VFD-E User Manual

Appendix B Accessories|
Revision Jan. 2009, 06EE, SW--PW V1.12/CTL V2.12 B-21

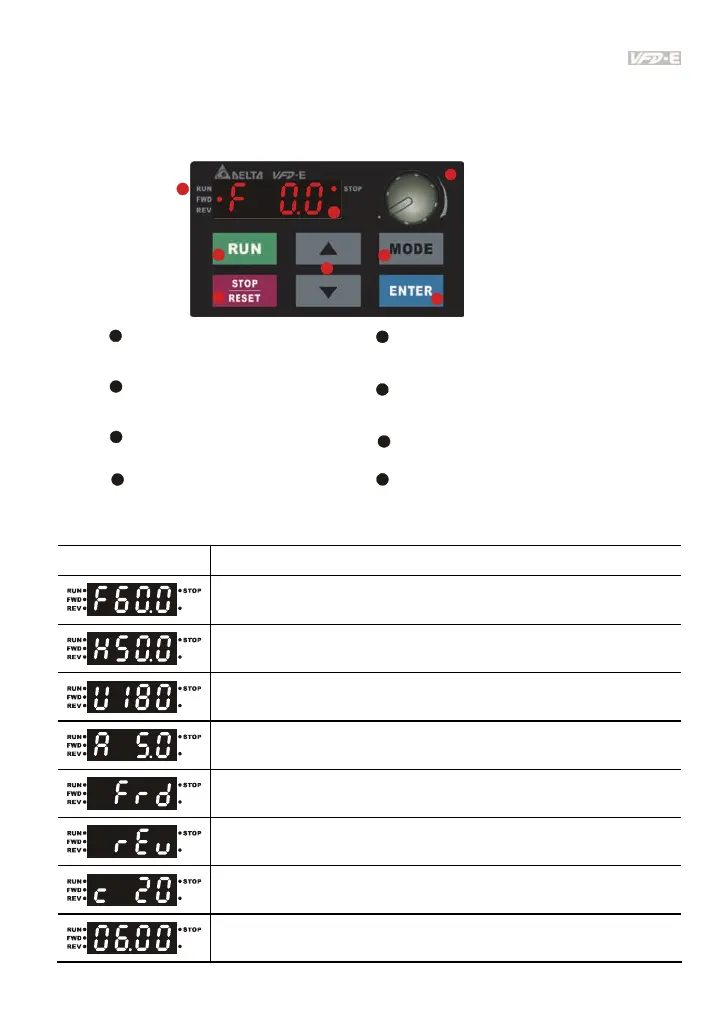

B.8 KPE-LE02
B.8.1 Description of the Digital Keypad KPE-LE02
LED Display
Indicates frequency, voltage, current, user
defined units and etc.
Status Display
Display the driver's current status.
STOP/RESET
Stops AC drive operation and reset the drive
after fault occurred.
RUN Key
Start AC drive operation.
MODE
Change between different display mode.
UP and DOWN Key
Set the parameter number and changes the
numerical data, such as Master Frequency.
Potentiometer
For master Frequency setting.
1
2
3
4
5
6
7
1
2
3
4
5
6
7
8
8
ENTER
Used to enter/modify programming
parameters
Display Message Descriptions
Displays the AC drive Master Frequency.
Displays the actual output frequency at terminals U/T1, V/T2, and W/T3.
User defined unit (where U = F x Pr.00.05)
Displays the output current at terminals U/T1, V/T2, and W/T3.
Displays the AC motor drive forward run status.
Displays the AC motor drive reverse run status.
The counter value (C).
Displays the selected parameter.

Delta VFD-E Specifications

General

Protection Features	IP20
Enclosure Rating	IP20
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Control Mode	V/F, Sensorless Vector
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	-10°C to +50°C
Analog Inputs	2 (0-10V, 4-20mA)
Analog Outputs	1 (0-10V)
Communication Interface	RS-485
Output Voltage	3-phase, equal to input voltage
Power Range	0.4kW to 7.5 kW
Storage Temperature	-20°C to +60°C
Humidity	90% RH (non-condensing)
Cooling Method	Fan cooled
Digital Outputs	1 relay output
