Chapter 4 Parameters|
Revision Jan. 2009, 06EE, SW--PW V1.12/CTL V2.12 4-67
OFF
ON
Frequency
frequency
command
increase by accel. time
Time
multi-function input
set to 10 (UP command)

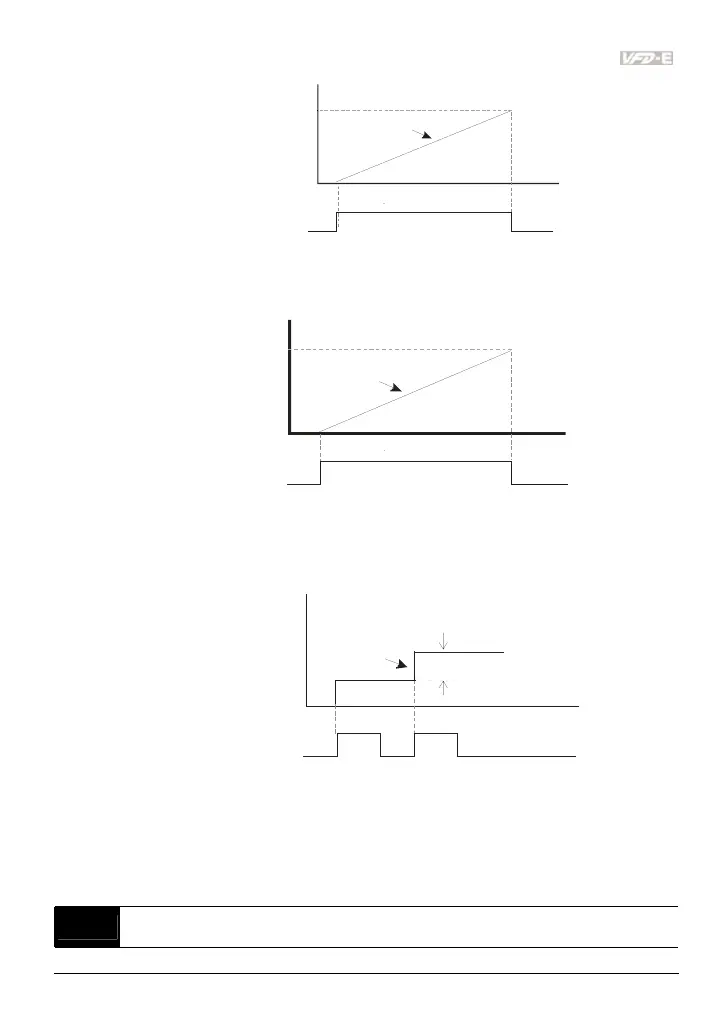

When Pr.02.07 is set to 2: use multi-function input terminal ON/OFF to increase/decrease the
frequency by Pr.02.08.
OFFON
Frequenc
frequency
command
Time
increase by 0.01-10.00Hz/2ms
multi-function input
set to 10 (UP command)
time for ON needs >2m
When Pr.02.07 is set to 3: increase/decrease the frequency by Pr.02.08 (unit: pulse input).
Every ON after OFF is regarded as a input pulse.
OFF
ON
ON
Frequency
frequency
command
by Pr.02.08 setting
Time
multi-function input
set to 10 (UP command)
Related parameters: Pr.02.08(Accel/Decel Rate of Change of UP/DOWN Operation with
Constant Speed), Pr.04.05(Multi-function Input Terminal (MI3)), Pr.04.06(Multi-function Input
Terminal (MI4)), Pr.04.07(Multi-function Input Terminal (MI5)), Pr.04.08(Multi-function Input
Terminal (MI6))
02.08
Accel/Decel Rate of Change of UP/DOWN Operation with
Constant Speed
Unit: 0.01
Settings 0.01~10.00 Hz/2ms Factory Setting: 0.01
