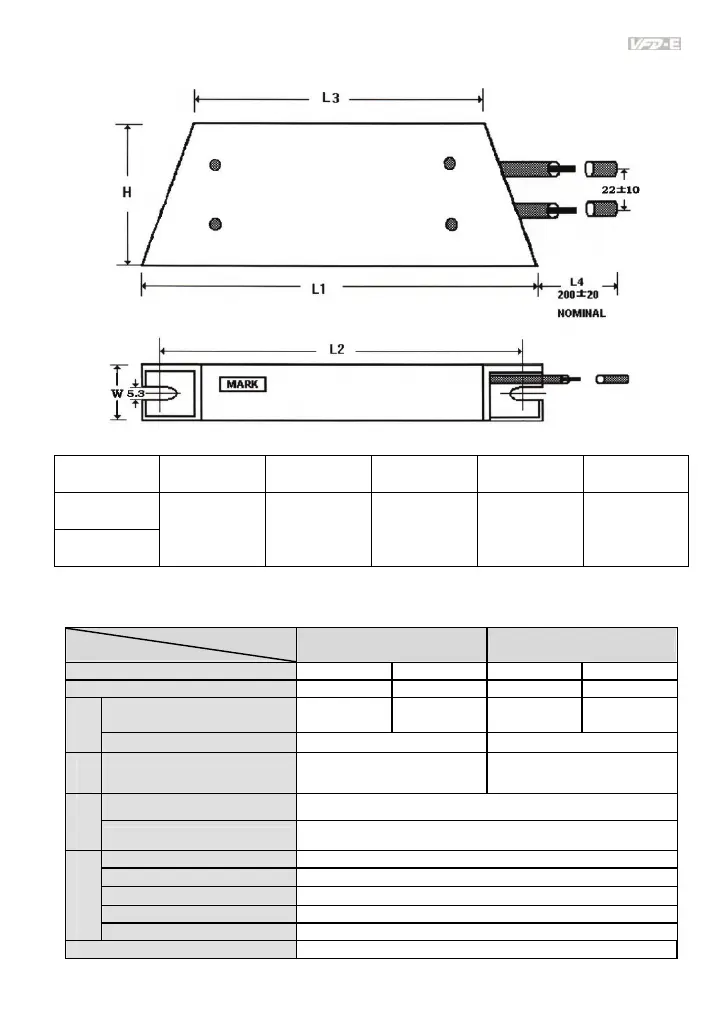

Order P/N: BR200W150, BR200W250
Model no. L1±2 L2±2 L3±2 W±1 H±1
BR200W150
BR200W250
165 150 110 30 60
B.1.2 Specifications for Brake Unit
230V Series 460V Series
Model Name BUE-XXXXX 20015 20037 40015 40037
Max. Motor Power (kW) 1.5 3.7 30 45
Max. Peak Discharge Current
(A) 10%ED
3.6 3.7 1.5 3.7
Output
Rating
Brake Start-up Voltage (DC)
328/345/362/380/400±3V 656/690/725/760/800±6V
Power
DC Voltage 200~400VDC 400~800VDC
Heat Sink Overheat
Temperature over +100°C (212
o
F)
Protection
Power Charge Display Blackout until bus (P~N) voltage is below 50VDC
Installation Location Indoor (no corrosive gases, metallic dust)
Operating Temperature
-10°C ∼ +50°C (14
o
F to 122
o
F)
Storage Temperature
-20°C ∼ +60°C (-4
o
F to 140
o
F)
Humidity 90% Non-condensing
Environment
Vibration 9.8m/s
2
(1G) under 20Hz, 2m/s
2
(0.2G) at 20~50Hz
Wall-mounted Enclosed Type IP20
