Chapter 1 Introduction|
1-2 Revision Jan. 2009, 06EE, SW--PW V1.12/CTL V2.12
1.1 Receiving and Inspection
This VFD-E AC motor drive has gone through rigorous quality control tests at the factory before
shipment. After receiving the AC motor drive, please check for the following:
Check to make sure that the package includes an AC motor drive, the User Manual/Quick
Start and CD.
Inspect the unit to assure it was not damaged during shipment.
Make sure that the part number indicated on the nameplate corresponds with the part
number of your order.
1.1.1 Nameplate Information

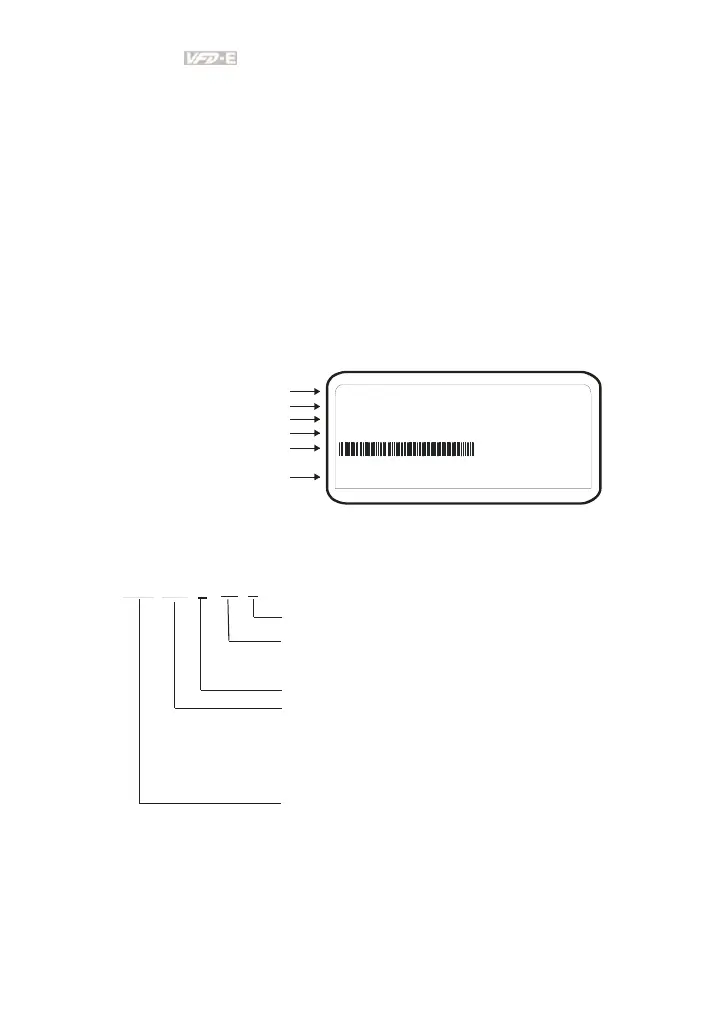

Example for 1HP/0.75kW 3-phase 230V AC motor drive
MODEL VFD007E23A:
INPUT :3PH 200-240V 50/60Hz 5.1A
OUTPUT :3PH 0-240V 4.2A 1.6kVA 0.75kW/1HP
FREQUEN CY RANGE : 0.1~400Hz
Se ria l Nu mber & Bar Code
AC Drive Mod el
Input Spec.
Output Spec.
Output Frequency Ra nge
007E23A0T8011230
01.03
02.03
Software Version
Power Board
Contr ol Board
1.1.2 Model Explanation
VFD
A
Version Type
23
Mains Input Voltage
11:115 Single phaseV
21: phase230V Single
23:230 Three phaseV
E
E Series
007
Applicable motor capacity
Series Name ( ariable requency rive)VF D
43:460 Three phaseV
A: Standard driv
C: CANopen
P: Cold plate drive (frame A only)
T: Frame A, built-in brake chopper
004: 0.5 HP(0.4kW)
007: 1 HP(0.75kW)
015: 2 HP(1.5kW)
022: 3 HP(2.2kW)
002: 0.25 HP(0.2kW)
055: 7.5 HP(5.5kW)
075: 10 HP(7.5kW)
110: 15 HP(11kW)
037: 5 HP(3.7kW)
150: 20 HP(15kW)
220: 30 HP(22kW)
185: 25 HP(18.5kW)
