Delta VFD-E

Chapter 1 Introduction|
1-8 Revision Jan. 2009, 06EE, SW--PW V1.12/CTL V2.12

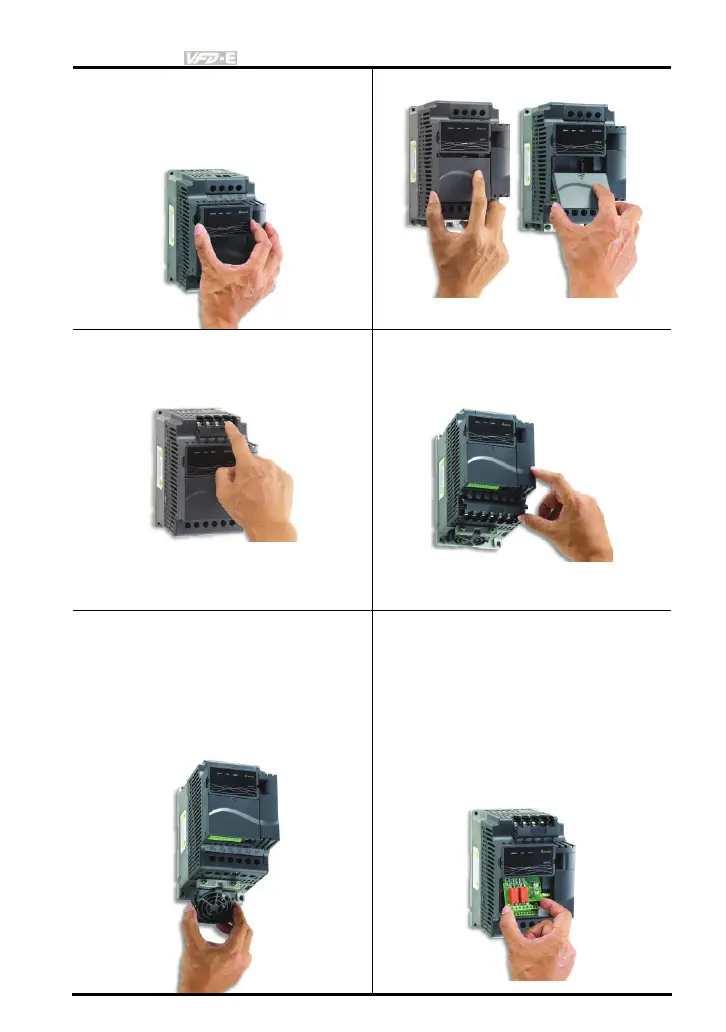

Remove Keypad
1. Press and hold in the tabs on each side
of the cover.
2. Pull the cover up to release.
Remove Front Cover
Step 1 Step 2
Remove RST Terminal Cover
For Frame B, Frame C and Frame D: it only
needs to turn the cover lightly to open it
For frame A, it doesn’t have cover and can be
wired directly.
Remove UVW Terminal Cover
For Frame B, Frame C and Frame D: it only
needs to turn the cover light to open the cover
For frame A, it doesn’t have cover and can be
wired directly.
Remove Fan
For Frame A, Frame B, Frame C and Frame
D,
press and hold in the tabs on each side of the
fan and pull the fan up to release.
Remove Extension Card
For Frame A, Frame B, Frame C and Frame
D,
press and hold in the tabs on each side of the
extension card and pull the extension card up
to release. On the other hand, it can install the
extension card into the AC motor drive with
screws.
