Address Meaning
1..0x7D Valid PROFIBUS address
0 or 0x7E..0xFE Invalid PROFIBUS address
B.10.4 CME-COP01 (CANopen)
CME-COP01 CANopen communication module is specifically for connecting to CANopen
communication module of Delta VFD-E AC motor drive.

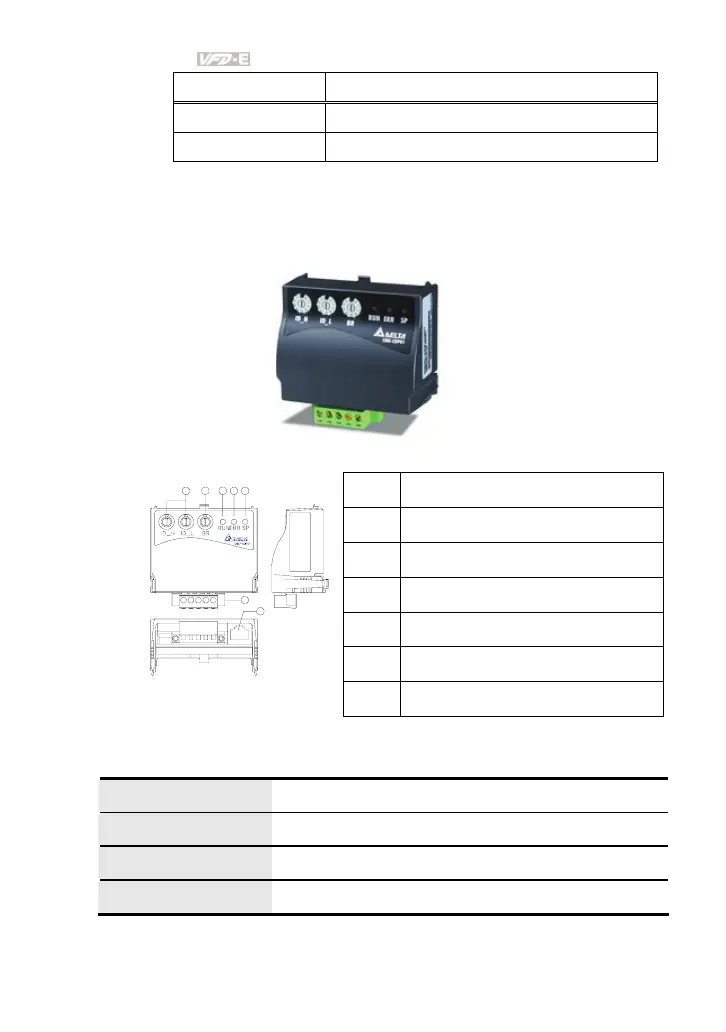

B.10.4.1 Product Profile
c
COM port
d
CANopen connection port
e
RUN indicator
f
ERROR indicator
g
SP (Scan Port) indicator
h
Baud rate switch
1
2
76345
Unit: mm
i
Address switch
B.10.4.2 Specifications
CANopen Connection
Interface Pluggable connector (5.08mm)
Transmission method CAN
Transmission cable 2-wire twisted shielded cable
Electrical isolation 500V DC

Delta VFD-E Specifications

General

Protection Features	IP20
Enclosure Rating	IP20
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Control Mode	V/F, Sensorless Vector
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	-10°C to +50°C
Analog Inputs	2 (0-10V, 4-20mA)
Analog Outputs	1 (0-10V)
Communication Interface	RS-485
Output Voltage	3-phase, equal to input voltage
Power Range	0.4kW to 7.5 kW
Storage Temperature	-20°C to +60°C
Humidity	90% RH (non-condensing)
Cooling Method	Fan cooled
Digital Outputs	1 relay output
