Chapter 4 Parameters|
4-64 Revision Jan. 2009, 06EE, SW--PW V1.12/CTL V2.12
This parameter determines the response of the drive upon power on and operation command
source is changed.
Pr.02.05 Start lockout (Run when power is ON)
Operation status when operation
command source is changed
0 Disable (AC motor drive will run) Keep previous status
1 Enable (AC motor drive doesn’t run) Keep previous status
2 Disable (AC motor drive will run)
Change according to the new
operation command source
3 Enable (AC motor drive doesn’t run)
Change according to the new
operation command source

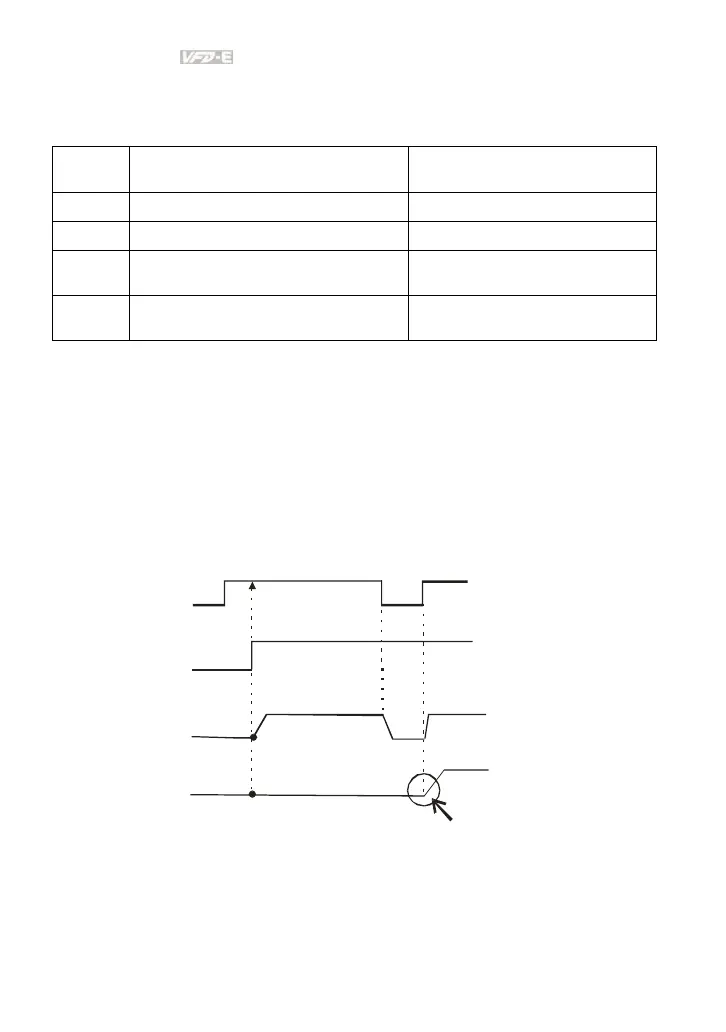

When the operation command source is from external terminal and operation command is ON
(NPN mode: MI1/MI2-DCM=closed, PNP mode: MI1/MI2+24V=closed, please refer to chapter
2 wiring for details), the AC motor drive will operate according to Pr.02.05 after power is
applied. <For terminals MI1 and MI2 only>
1. When Pr.02.05 is set to 0 or 2, AC motor drive will run immediately.
2. When Pr.02.05 is set to 1 or 3, AC motor drive will remain stopped until operation
command is received after previous operation command is cancelled.
It needs to received a run command
after previous command is cancelled
ON
OFF
MI1-DCM (close)
power is applied
output frequency
Pr.02.05=0 or 2
output frequency
Pr.02.05=1 or 3
ON
OFF
ON
it will run
it won't run
when power is applied
