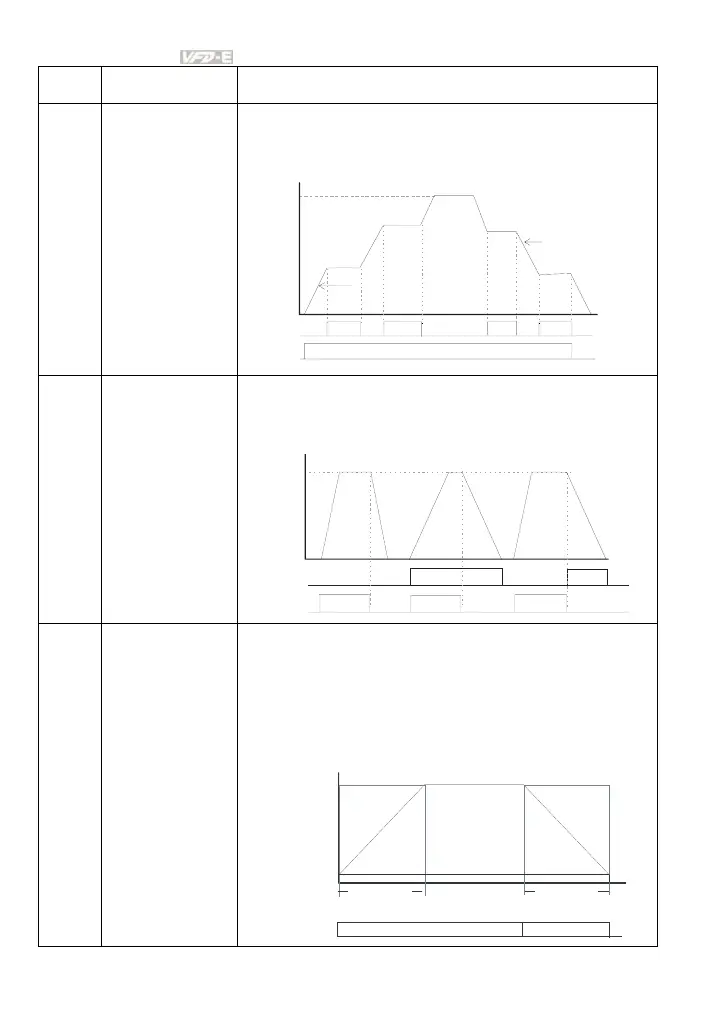

Settings Function Description
6 Accel/Decel Inhibit
When the command is active, acceleration and deceleration is
stopped and the AC motor drive maintains a constant speed.
ON
ON
ON
ON
ON
OFF
MIx-GND
Frequency
setting
frequency
operation
command
Time
actual op eration frequency
accel. inhibit
acce l. inhi bit
decel. inhibit
actual op eration
frequency
decel. inhibit
7
Accel/Decel Time
Selection
Command
Used to select the one of 2 Accel/Decel Times (Pr.01.09 to
Pr.01.12).
ON
ON
OFF
MI -GNDx
01.09
00.10
01.11
01.12
01.09
01.12
ON
ON
ON
Frequency
setting
frequency
Time
operation
command
8
Jog Operation
Control
Parameter value 08 programs one of the Multi-function Input
Terminals MI3 ∼ MI6 (Pr.04.05~Pr.04.08) for Jog control.
NOTE: Programming for Jog operation by 08 can only be
done while the motor is stopped. (Refer to parameter
Pr.01.13~Pr.01.15)
01.13
ON
OFF
MIx
-GN D
01.14
01.1
Jog frequency
01.05
Min. output
frequency
Jog accel. time Jog decel. time
