Chapter 2 Installation and Wiring|
Revision Jan. 2009, 06EE, SW--PW V1.12/CTL V2.12 2-9

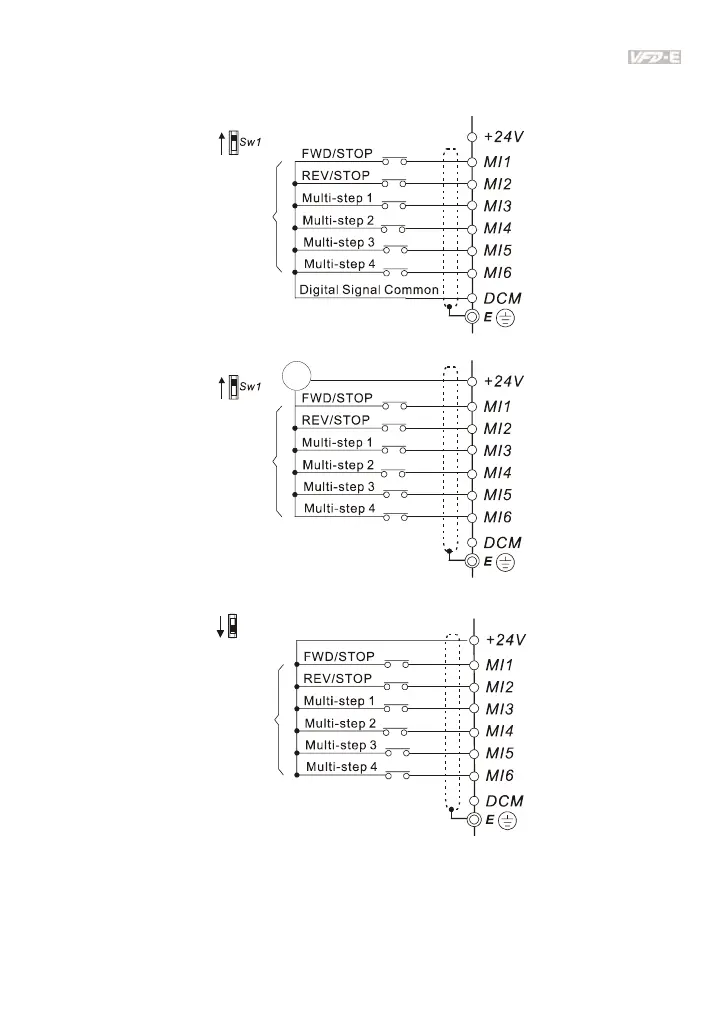

Figure 7 Wiring for NPN mode and PNP mode
A. NPN mode without external power
Factory
setting
NPN
PNP
B. NPN mode with external power
Factory
setting
NPN
PNP
24
Vdc
-
+
C. PNP mode without external power
Sw1
Factory
setting
NPN
PNP
To Next Page
