DEWESOFT SIRIUS Series User Manual

/
SIRIUS
® 
TECHNICAL REFERENCE MANUAL 


4.14.1.2. EtherCAT 

When using only DeweSoft EtherCAT devices (KRYPTON, SIRIUSe or IOLITE), the connection is             
straightforward via ECAT to ECAT cable. 

For data transmission, data synchronization, and power supply the EtherCAT protocol with 100 Mb/s bus               
speed is used. Devices are connected together with a single cable for data, power, and sync. 
All data is always perfectly synchronized down to microsecond accuracy, even though each data source               
can have different sampling rates (software selectable for each channel). 

No additional cables are needed, because the synchronization between modules runs through the             
same EtherCAT cable as power and data. This makes the system more transparent and reduces the                
chances of wiring errors,... 


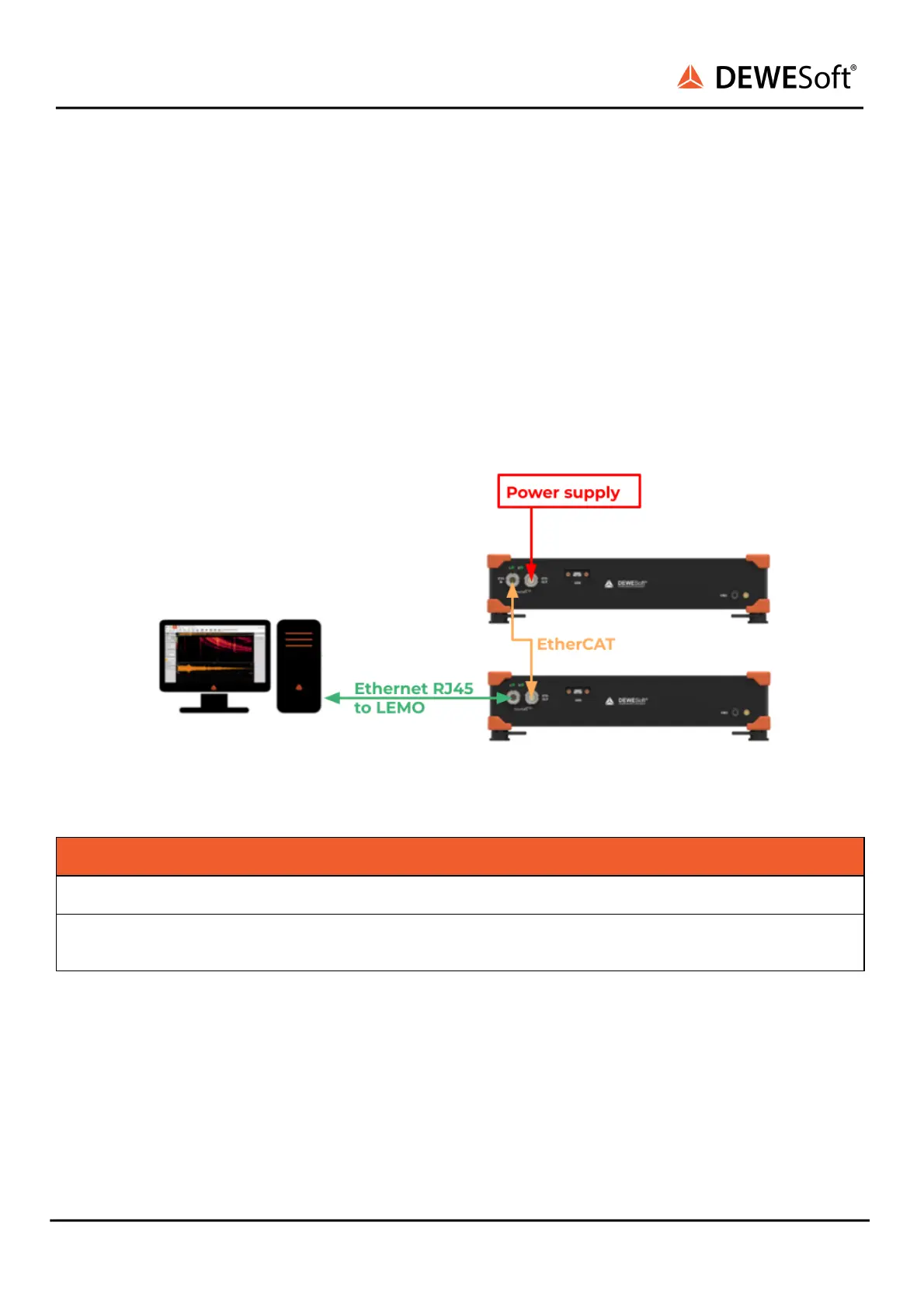

Connecting two SIRIUS EtherCAT to PC 

List of required cables: 

Function 
Dewesoft order code 
Power supply 
PS-120-L1T8m 
Ethercat 
EtherCAT to EtherCAT: L1T8m-L1T8f, 
ECAT - PC connection: L1T8f-RJ45 

 
SIRIUS
®
V20-1 103 / 336  

DEWESOFT SIRIUS Series Specifications

General

Category	Data Loggers
Manufacturer	DEWESOFT
Series	SIRIUS
Resolution	24-bit
Interface	USB, EtherCAT
Software	DEWESoft X
Channels	Expandable
Sampling Rate	Up to 200 kS/s per channel
Input Types	Voltage, Current, IEPE, Strain, Thermocouple, RTD, Resistance, Digital, Counter
Input Voltage Range	±10 V, ±200 V
Isolation	Channel-to-channel and channel-to-ground
Connectivity	Ethernet, USB
Operating Temperature	-10 °C to +50 °C
Storage Temperature	-20 °C to +70 °C
Power Supply	10 to 30 V DC
Dimensions	Varies depending on module configuration
Weight	Varies depending on module configuration
Analog Inputs	Yes, depending on module configuration
