DEWESOFT SIRIUS Series User Manual

/
SIRIUS
® 
TECHNICAL REFERENCE MANUAL 


4.12. SIRIUSm 

Main features: 

● SMALLEST DAQ: SIRIUS mini is our smallest, 4-channel data acquisition system, mainly suitable             
for acoustic, vibration, and angle measurements. 
● UNMATCHED PRICE: SIRIUS mini ships off-the-shelf with high-quality signal conditioning and           
world-leading, award-winning data acquisition software for the best price on the market. 
● USB POWERED: SIRIUS mini does not require any external power supply. It can be powered               
straight from USB connection, for example, a laptop. 
● 4 IEPE/VOLTAGE INPUTS: System is configured with 4 high dynamic analog inputs, dual             
sigma-delta ADC's with 200 kHz per channel sampling rate and up to 160 dB dynamic range. 
● COUNTER/ENCODER/DIGITAL INPUTS: System is configured with one counter/encoder input and          
is capable of 3x digital inputs, 1x event counter, encoder, period, pulse-width, duty-cycle. Precise              
frequency and angle measurement use patented SUPERCOUNTER® technology. 


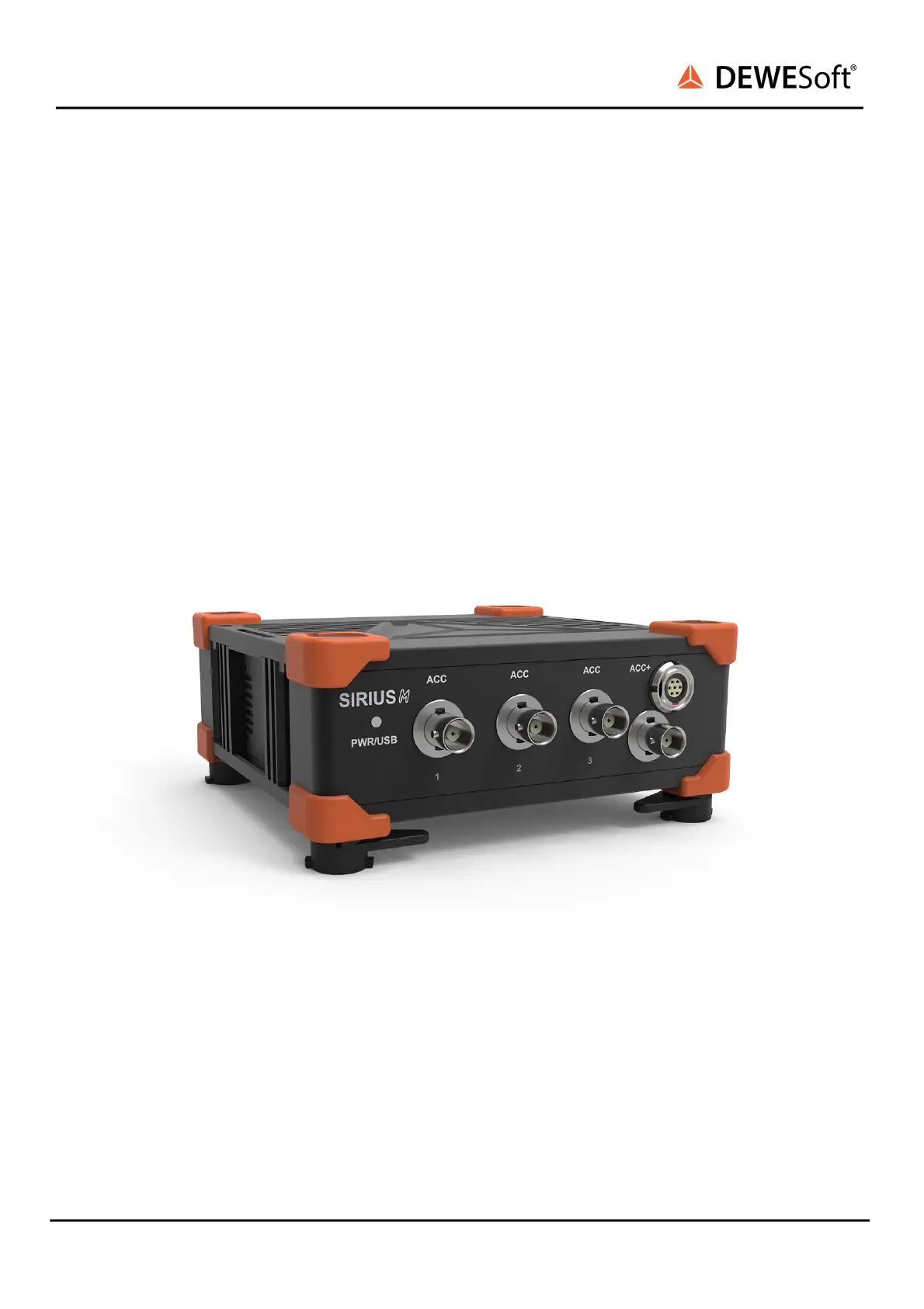

SIRIUSm-3xACC-1xACC+ 

SIRIUS
®
V20-1 95 / 336  

DEWESOFT SIRIUS Series Specifications

General

Category	Data Loggers
Manufacturer	DEWESOFT
Series	SIRIUS
Resolution	24-bit
Interface	USB, EtherCAT
Software	DEWESoft X
Channels	Expandable
Sampling Rate	Up to 200 kS/s per channel
Input Types	Voltage, Current, IEPE, Strain, Thermocouple, RTD, Resistance, Digital, Counter
Input Voltage Range	±10 V, ±200 V
Isolation	Channel-to-channel and channel-to-ground
Connectivity	Ethernet, USB
Operating Temperature	-10 °C to +50 °C
Storage Temperature	-20 °C to +70 °C
Power Supply	10 to 30 V DC
Dimensions	Varies depending on module configuration
Weight	Varies depending on module configuration
Analog Inputs	Yes, depending on module configuration
