DEWESOFT SIRIUS Series User Manual

/
SIRIUS
® 
TECHNICAL REFERENCE MANUAL 


3.2.2. EtherCAT slice 

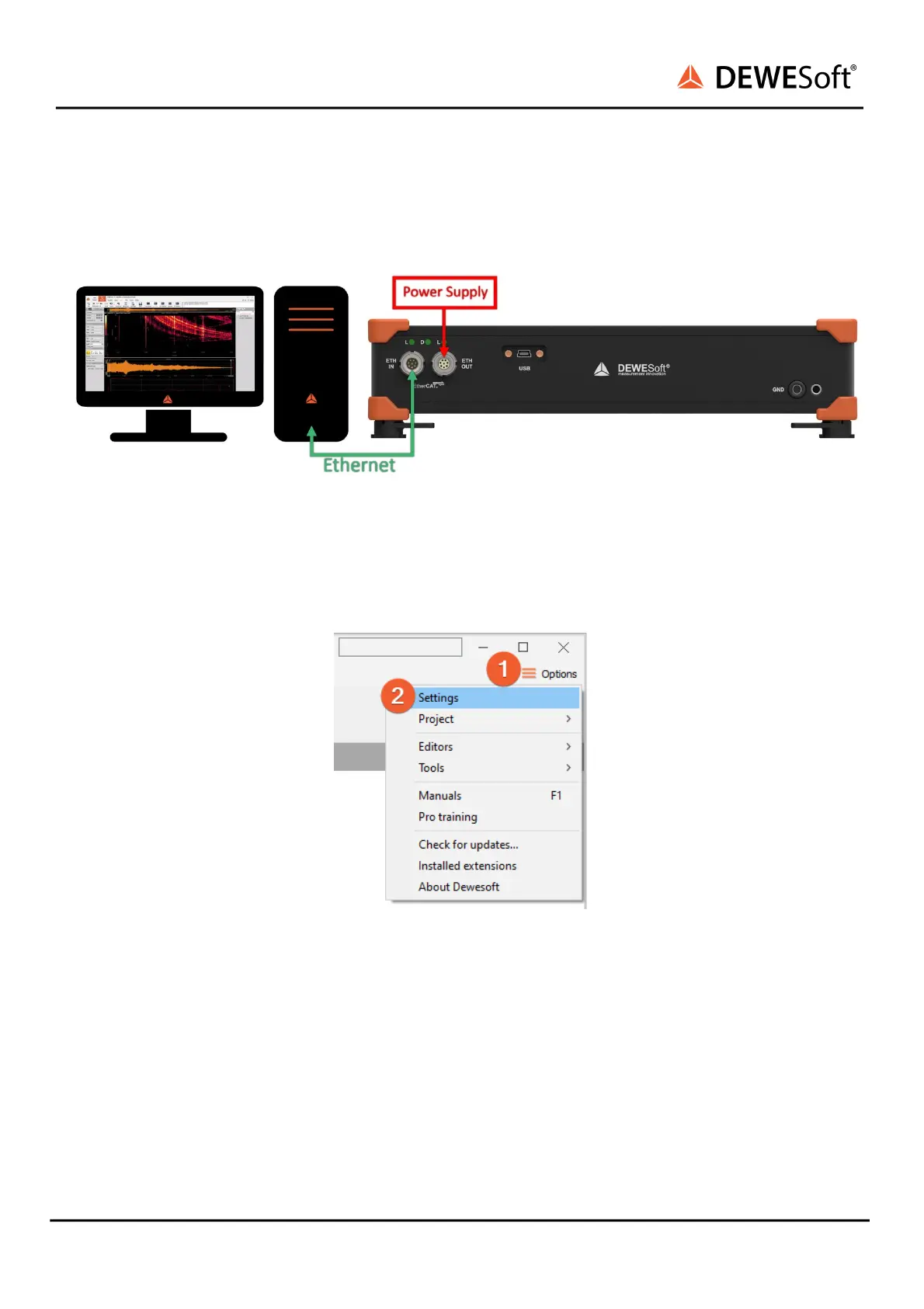

For the EtherCAT slice a RJ-45 to 8-pin LEMO connector is needed to connect the device to the PC. 


Connection of single SIRIUS EtherCAT device 
3.2.3. Dewesoft settings SIRIUS 
The connected device will show up in the Dewesoft settings. Click on the Options button at the top                  
right, and then on the Settings item in the pop-up to open the Dewesoft settings dialogue. 


Dewesoft settings 

In the Devices section, you can see the connected SIRIUS device. When you select one of them, the                  
properties pane at the right will show the related data e.g. Serial number, Firmware version, etc. 

SIRIUS
®
V20-1 15 / 336  

DEWESOFT SIRIUS Series Specifications

General

Category	Data Loggers
Manufacturer	DEWESOFT
Series	SIRIUS
Resolution	24-bit
Interface	USB, EtherCAT
Software	DEWESoft X
Channels	Expandable
Sampling Rate	Up to 200 kS/s per channel
Input Types	Voltage, Current, IEPE, Strain, Thermocouple, RTD, Resistance, Digital, Counter
Input Voltage Range	±10 V, ±200 V
Isolation	Channel-to-channel and channel-to-ground
Connectivity	Ethernet, USB
Operating Temperature	-10 °C to +50 °C
Storage Temperature	-20 °C to +70 °C
Power Supply	10 to 30 V DC
Dimensions	Varies depending on module configuration
Weight	Varies depending on module configuration
Analog Inputs	Yes, depending on module configuration
