4.5.3. SIRIUS-SBOXe: Rear side 


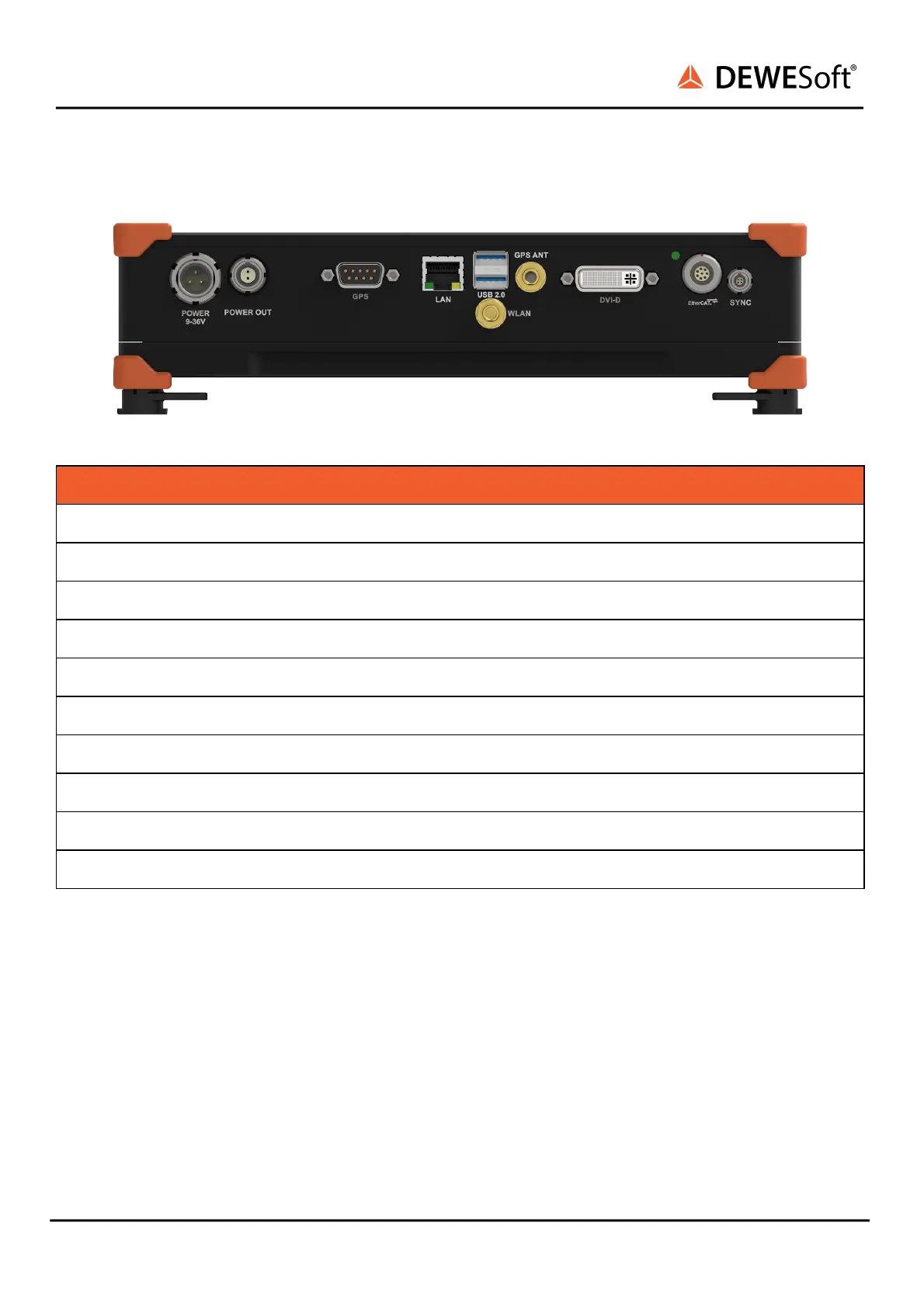

SIRIUS-SBOXe: Connectors at the rear side 
Name 
Description 
POWER 9-36V 
3-pin LEMO male connector 
POWER OUT 
2-pin LEMO female connector 
GPS 
Connection for external GPS display, PPS, Remote ON 
LAN 
1x GLAN Ethernet, RJ45 connector 
USB 2.0 
2 x USB 2.0 connector 
WLAN 
RP-SMA Female WLAN antenna: WiFi 802.11 b/g/n 
GPS ANT 
SMA Female GPS antenna 
DVI 
DVI video out (VGA and HDMI compatible) 
EtherCAT 
8-pin LEMO female connector 
SYNC 
4-pin LEMO female sync connector 

 
