5.9.3. CHG+ (Counter) 


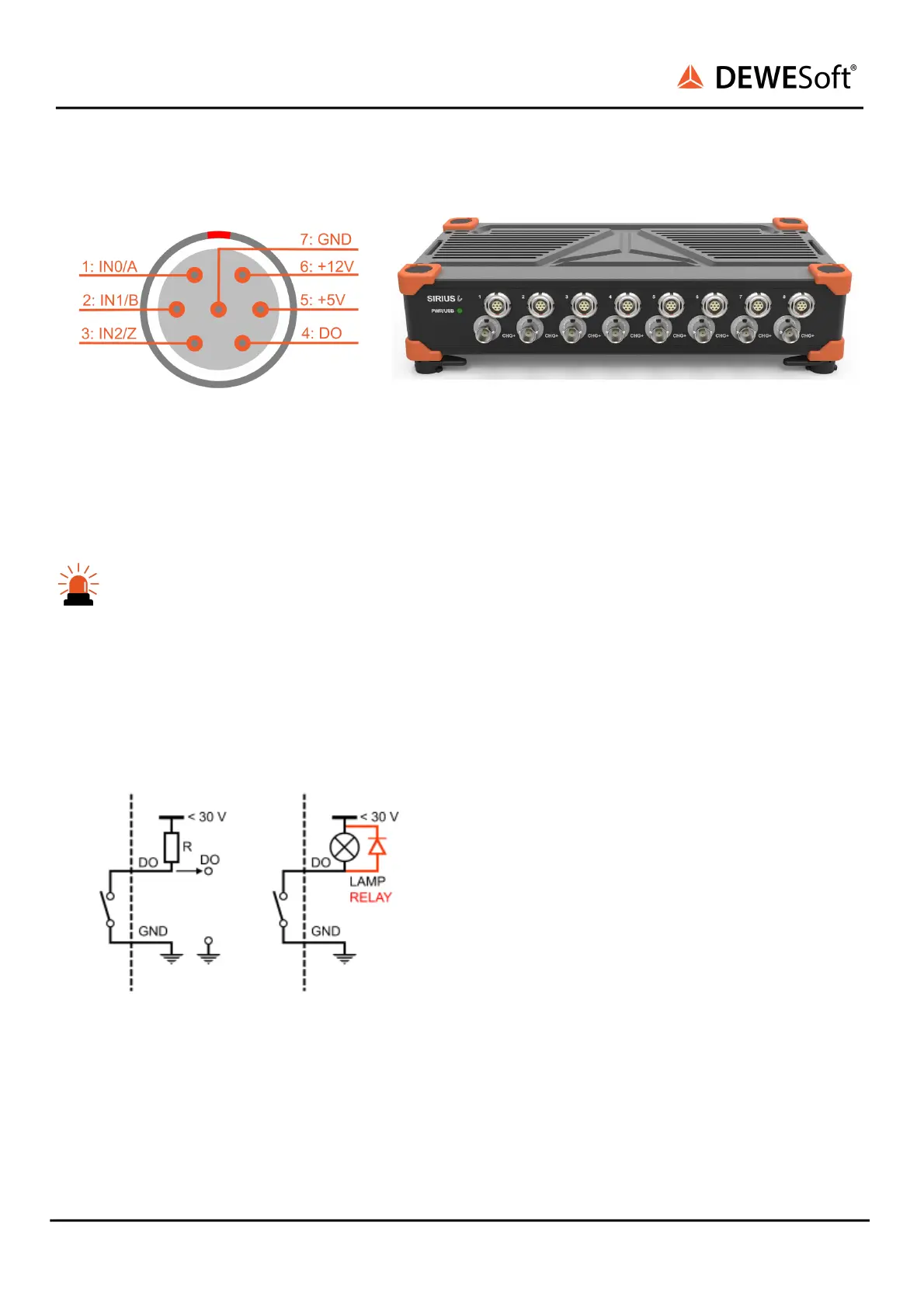

CNT connector: pin-out (7-pin LEMO) 

SIRIUSi-8xCHG+ 
Connector type L1B7f 
Connector on the module: EGG.1B.307.CLL 
Mating cable connector: FGG.1B.307.CLAD52 


Caution 
GND of the counter input is connected via a 50 Ω resistor to In- of the analog channel. 



Digital output configuration 

The “switch” of the open collector output is closed when active. 



 
