SIRIUS
®
TECHNICAL REFERENCE MANUAL
5.23.1.1. Output oversampling
The analog output channels use a special oversampling technology to produce accurate output results.

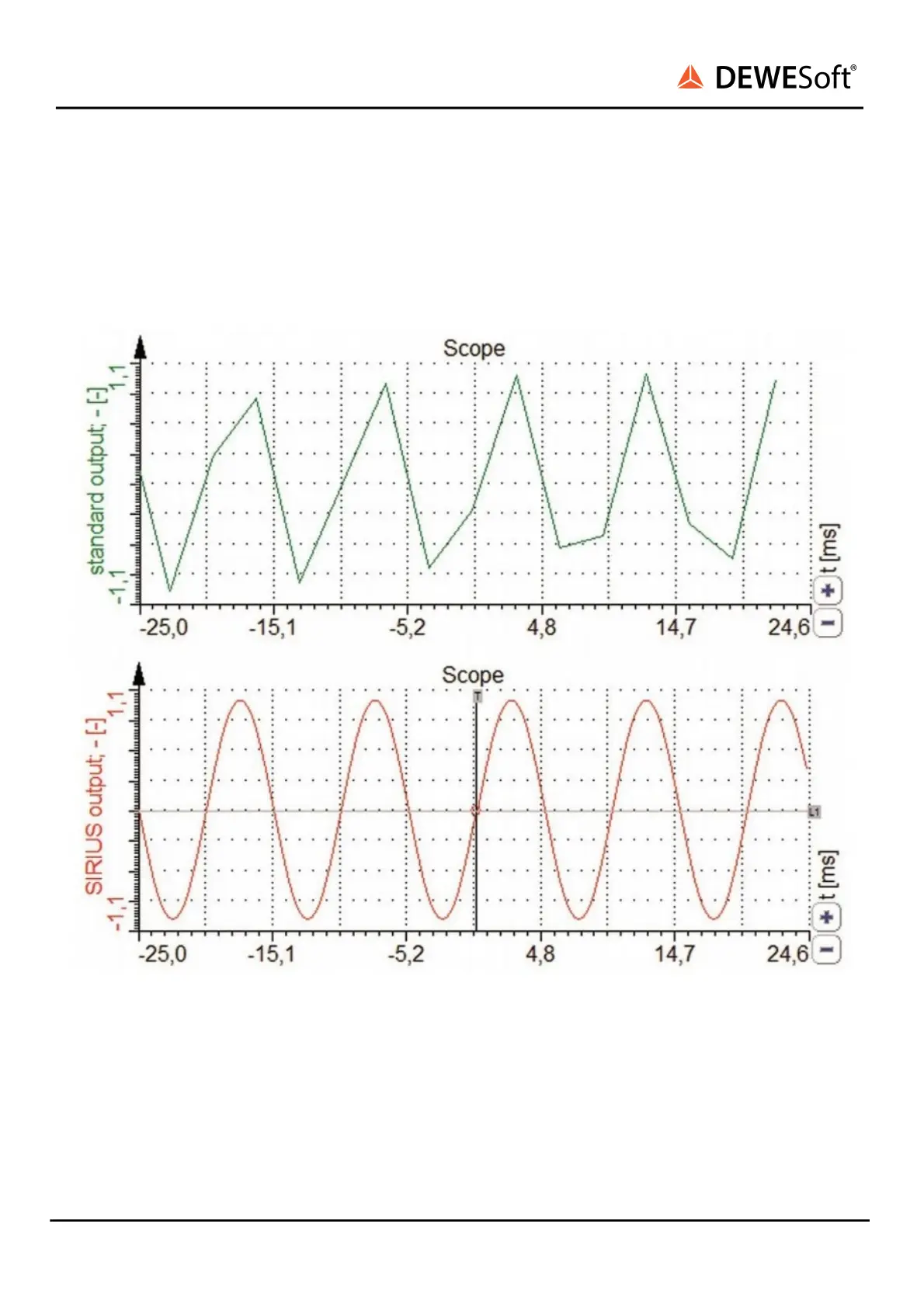

The illustration shows the output of a standard measurement system (green signal) in comparison to
the oversampled output of a SIRIUS® system (red signal). You can see that the SIRIUS® output looks like
it was sampled with 1 MHz, although the real sampling rate of the output signal is only 200 kHz.
SIRIUS
®
V20-1 255 / 336
