SIRIUS
®
TECHNICAL REFERENCE MANUAL
5.23.3. Function generator (Modal / Shaker control)
The Function Generator (DEWESoft® software feature) is able to output signals like sine, triangle,
rectangle, saw or even an arbitrary table. This can be done continuously or in Sweep / step sweep / burst
/ … and many more. Fine-tuning can be done LIVE during measurement.

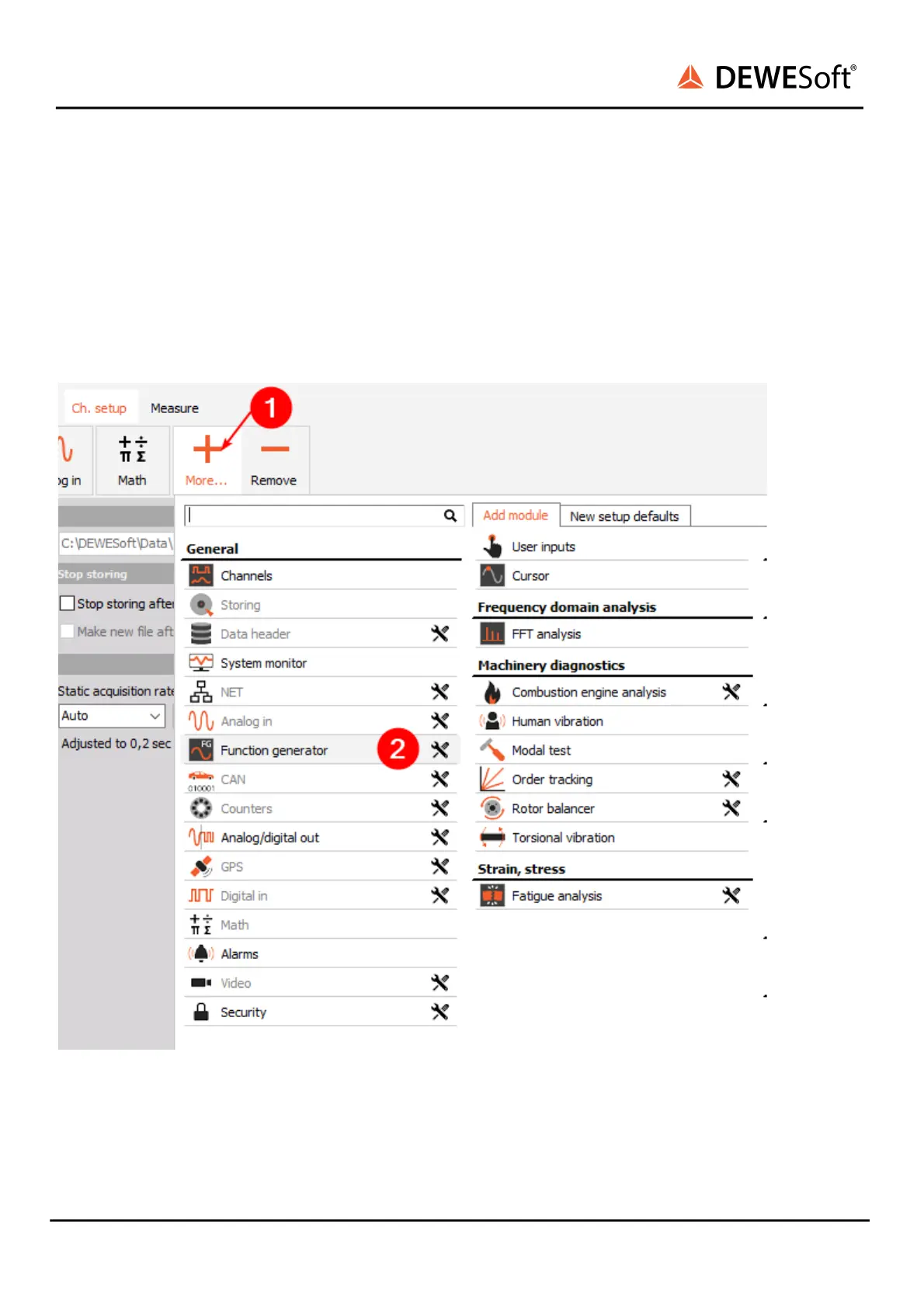

First, add the Function Generator feature to your channel setup:
Click the More… button ❶ and then select Function Generator ❷ :
SIRIUS
®
V20-1 257 / 336
