SIRIUS
®
TECHNICAL REFERENCE MANUAL

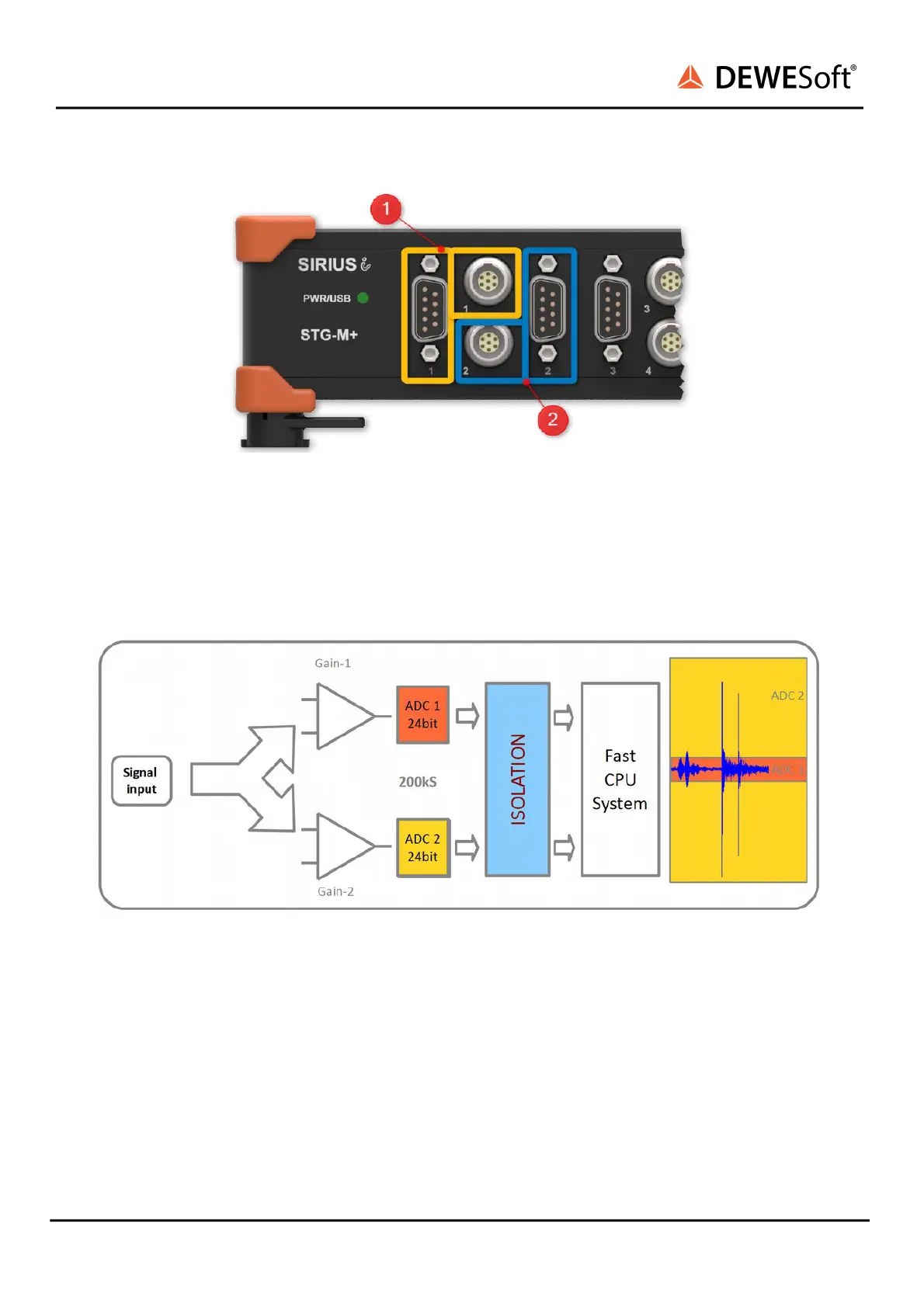

SIRIUSi-STGM+ module
5.2.1. SIRIUS® DUAL CORE series: high dynamic (up to 160 dB)
This new technology solves the often faced problem, that the signal is just much higher than expected
and therefore clipped. Dewesoft DUAL CORE ADC technology always gives you the full possible
measuring range, because the signal is measured with a high and a low gain at the same time.
SIRIUS Dual Core
SIRIUS
®
V20-1 129 / 336
