SIRIUS
®
TECHNICAL REFERENCE MANUAL

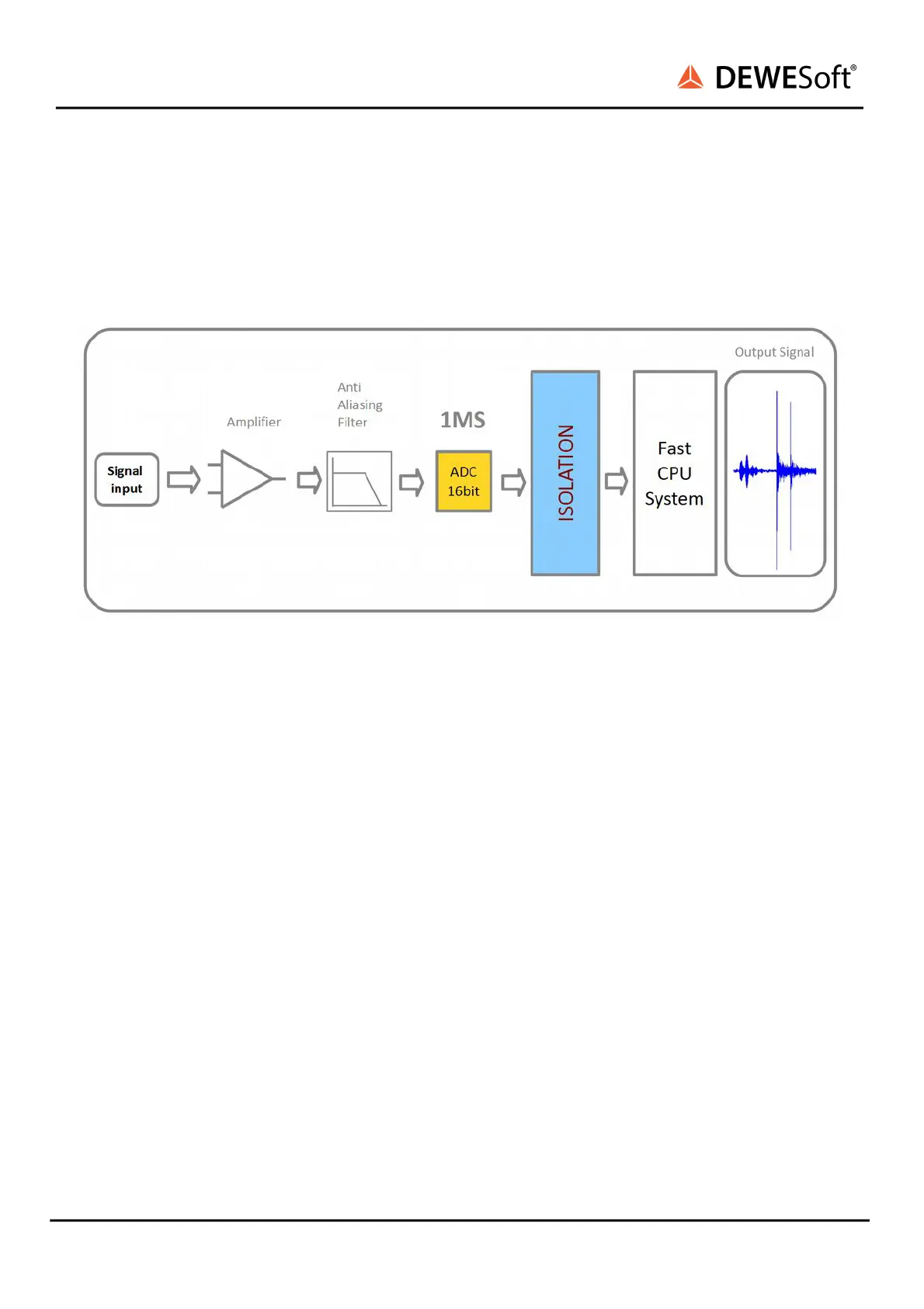

5.2.3. SIRIUS®-HS series: high speed and bandwidth
This series combines high bandwidth with alias free acquisition with 16-bit of up to 1 MS/sec acquisition
rate.The analog anti-aliasing filter (100 kHz, 5th order Bessel) is combined with a free programmable
digital IIR filter block inside the FPGA. For bandwidth requirements of up to 2 MHz the complete filter
chain can be bypassed.
SIRIUS High Speed
SIRIUS
®
V20-1 131 / 336
