SIRIUS
®
TECHNICAL REFERENCE MANUAL

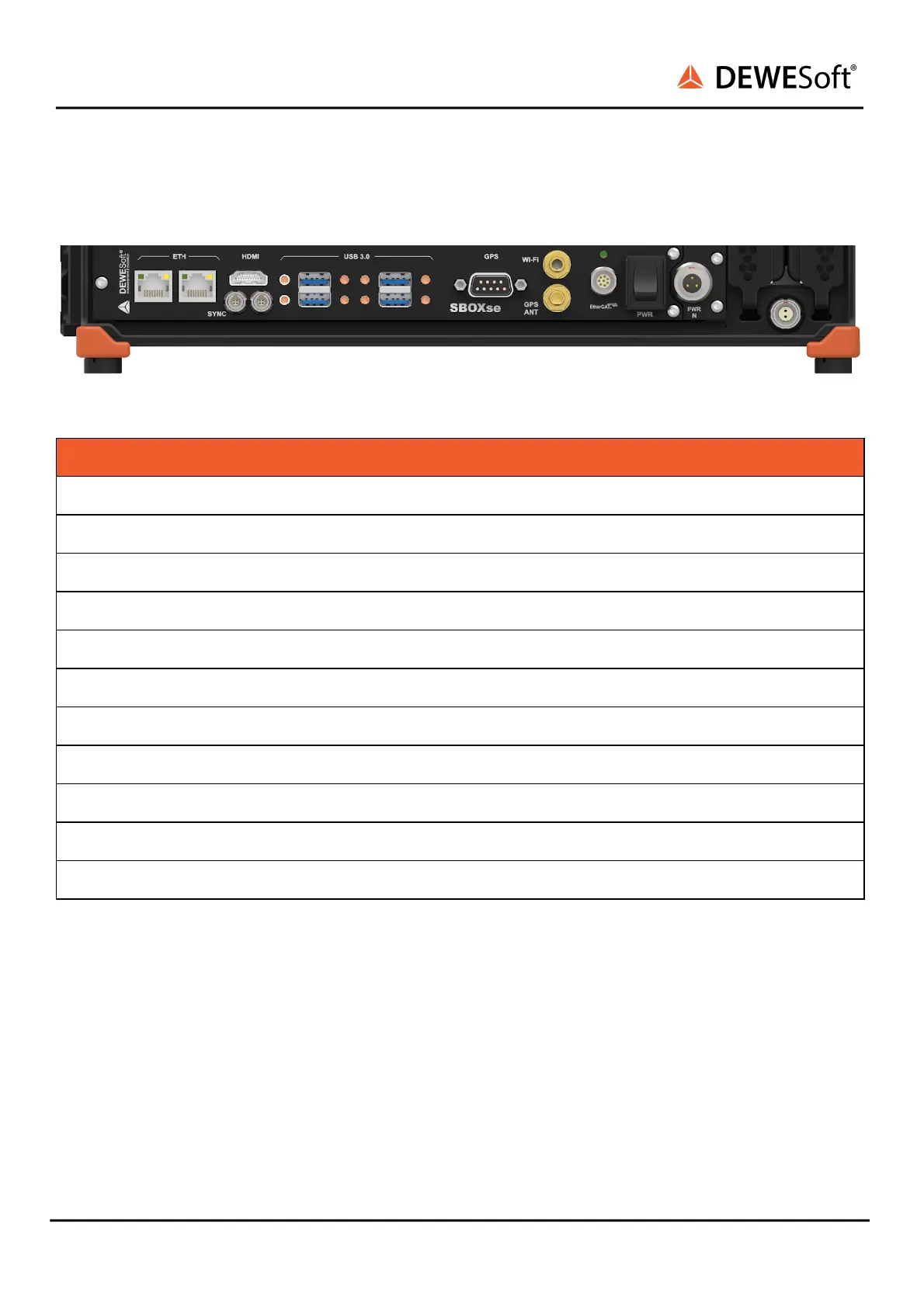

4.8.4. SIRIUS SBOXse R1DB/R2DB: Front side
SIRIUS-R1DB / R2DB Front side
On the front side of the SIRIUS-R1DB/R2DB you can find these connectors:
Name
Description
ETH
2x Ethernet 1Gbps, RJ45 connector
HDMI
HDMI Video Output
SYNC
2x 4-pin LEMO female sync connectors 
USB 3.0
4x USB 3.0
GPS
GPS output connector
WiFi
RP-SMA Female WLAN antenna: WiFi 802.11 b/g/n
GPS ANT
SMA Female GPS antenna
EtherCAT
8-pin LEMO female EtherCAT® connector
PWR switch
To switch the SBOX on/off.
PWR-IN
3-pin LEMO male
Power OUT
2-pin LEMO female
SIRIUS
®
V20-1 72 / 336
