SIRIUS
®
TECHNICAL REFERENCE MANUAL
3.2. Connecting a single slice
3.2.1. USB slice
First connect the power supply to the connector named POWER IN of your SIRIUS system.

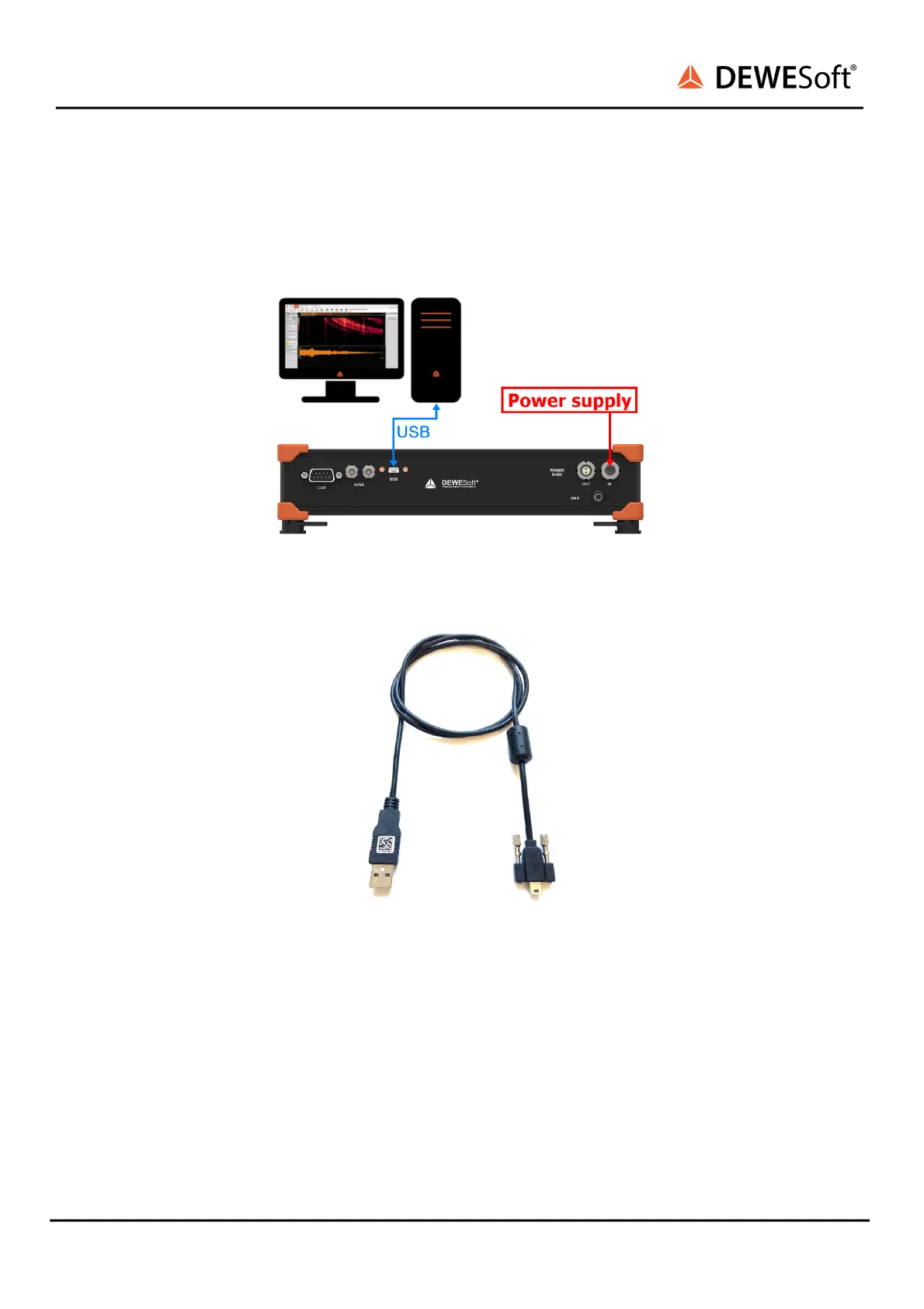

SIRIUS USB: connectors on the rear side
USB cable
Then connect the USB cable to the rear-side of the SIRIUS system (see connector named USB in
Illustration “ SIRIUS USB: connectors on the rear side ” ). Finally, connect the other side of the USB cable to
the USB port of your computer.
SIRIUS
®
V20-1 14 / 336
