5.11.5. LV+ (Counter) 
As an additional function to the ACC module, the ACC+ module also has a 7-pin Lemo connector for                  
digital counters 



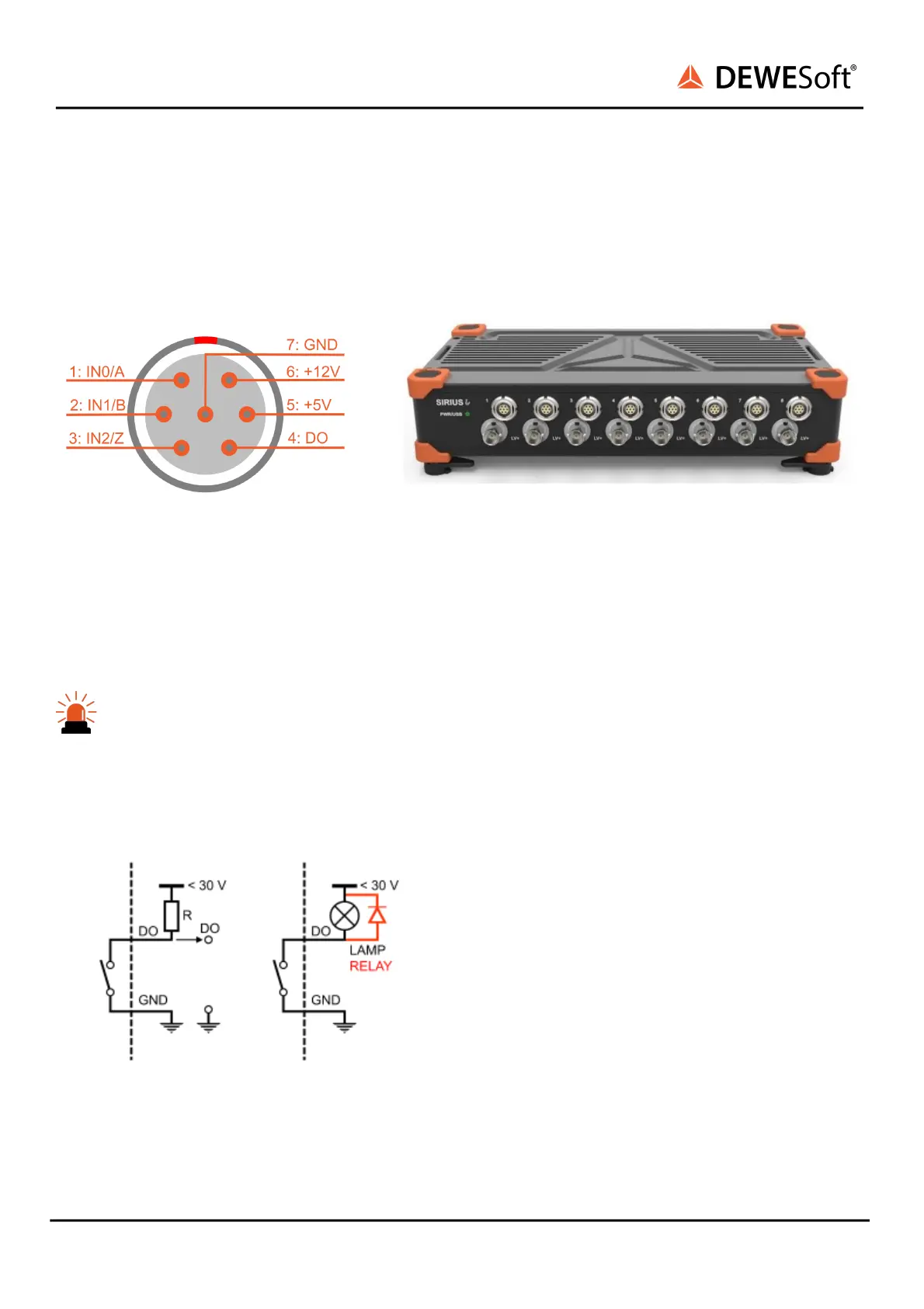

CNT connector: pin-out (7-pin LEMO female) 
SIRIUSi-8xLV+ 
Connector type L1B7f 
Connector on the module: EGG.1B.307.CLL 
Mating cable connector: FGG.1B.307.CLAD52 

Caution 
GND of the counter input is connected to the GND of the analog channel. 

Digital output configuration 
The “switch” of the open collector output is closed when active. 

 
