SIRIUS
®
TECHNICAL REFERENCE MANUAL

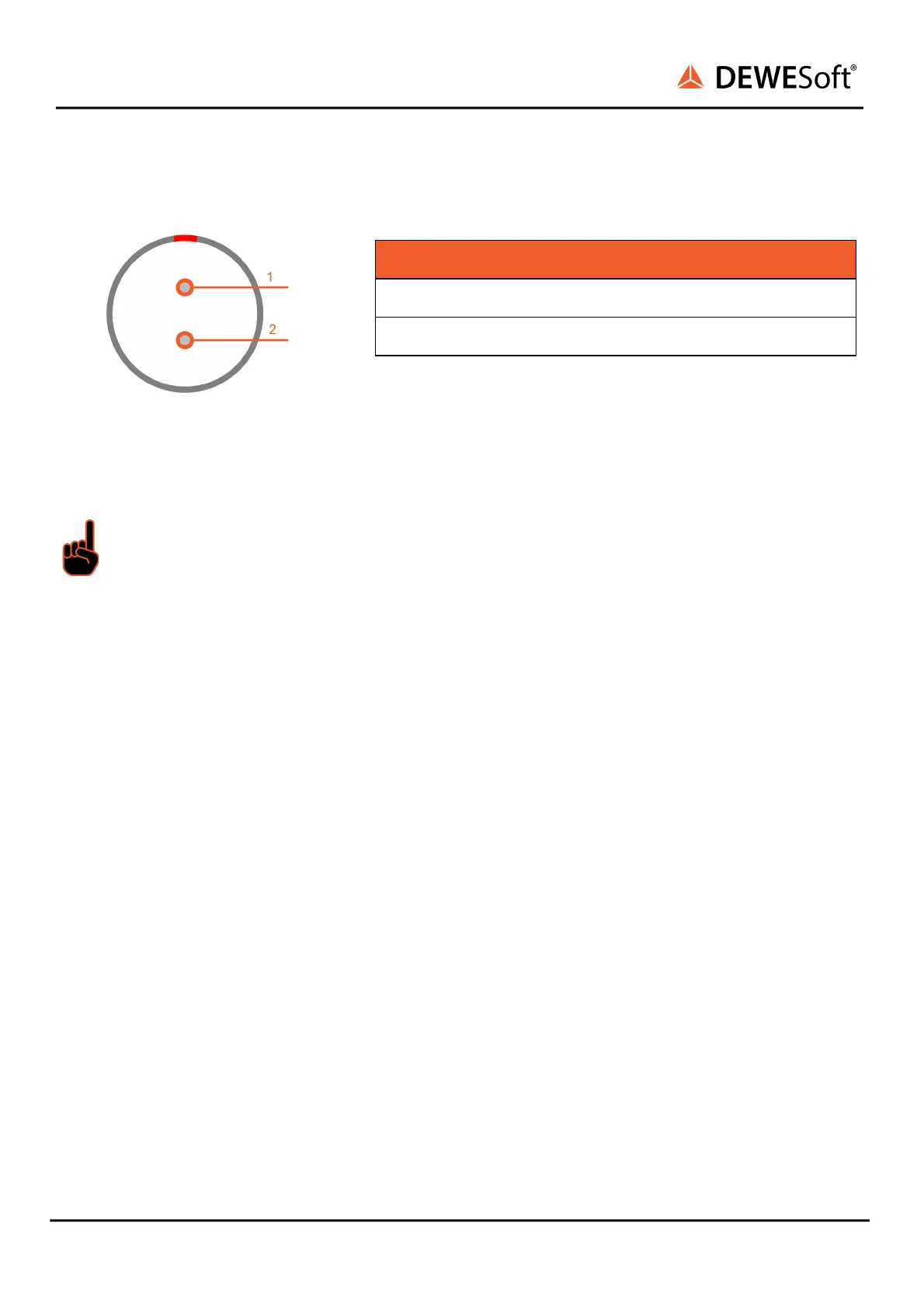

4.4.2.4.2. SBOXre power in connector 
Power in connector: pin-out (2-pin LEMO male)
Pin
Name
Description
1
V + 
Supply
2
GND
Ground
Power connector (on the SBOX): ECJ.2B.302.CLA
Mating connector (for the cable): FGJ.2B.302.CYMD92
Important
Only for R8, R8D, R8B and R8DB instruments.
SIRIUS
®
V20-1 53 / 336
