5.13.2. STGM 


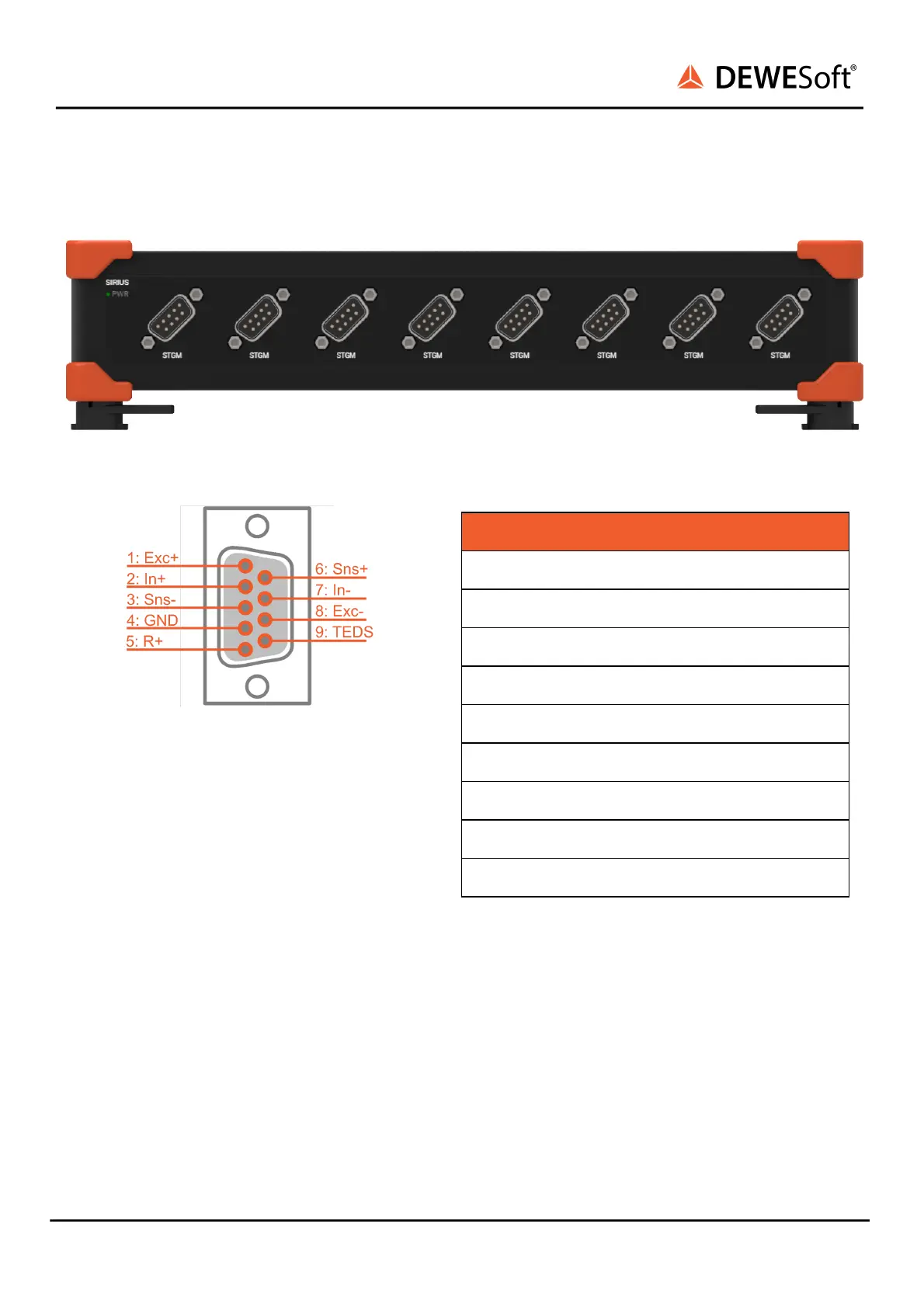

SIRIUSi-8xSTGM 


STGM connector: pin-out (DSUB-9 female) 

Pin 
Name 
Description 
1 
Exc + 
Excitation + 
2 
In+ 
Input + 
3 
Sns- 
Sense - 
4 
GND 
Ground 
5 
R+ 
¼ Bridge/Shunt 
6 
Sns+ 
Sense + 
7 
In- 
Input - 
8 
Exc- 
Excitation - 
9 
TEDS 
TEDS 

 
