5.14.4. STG-L2B10f 
SIRIUSi-8xSTG-L2B10f 


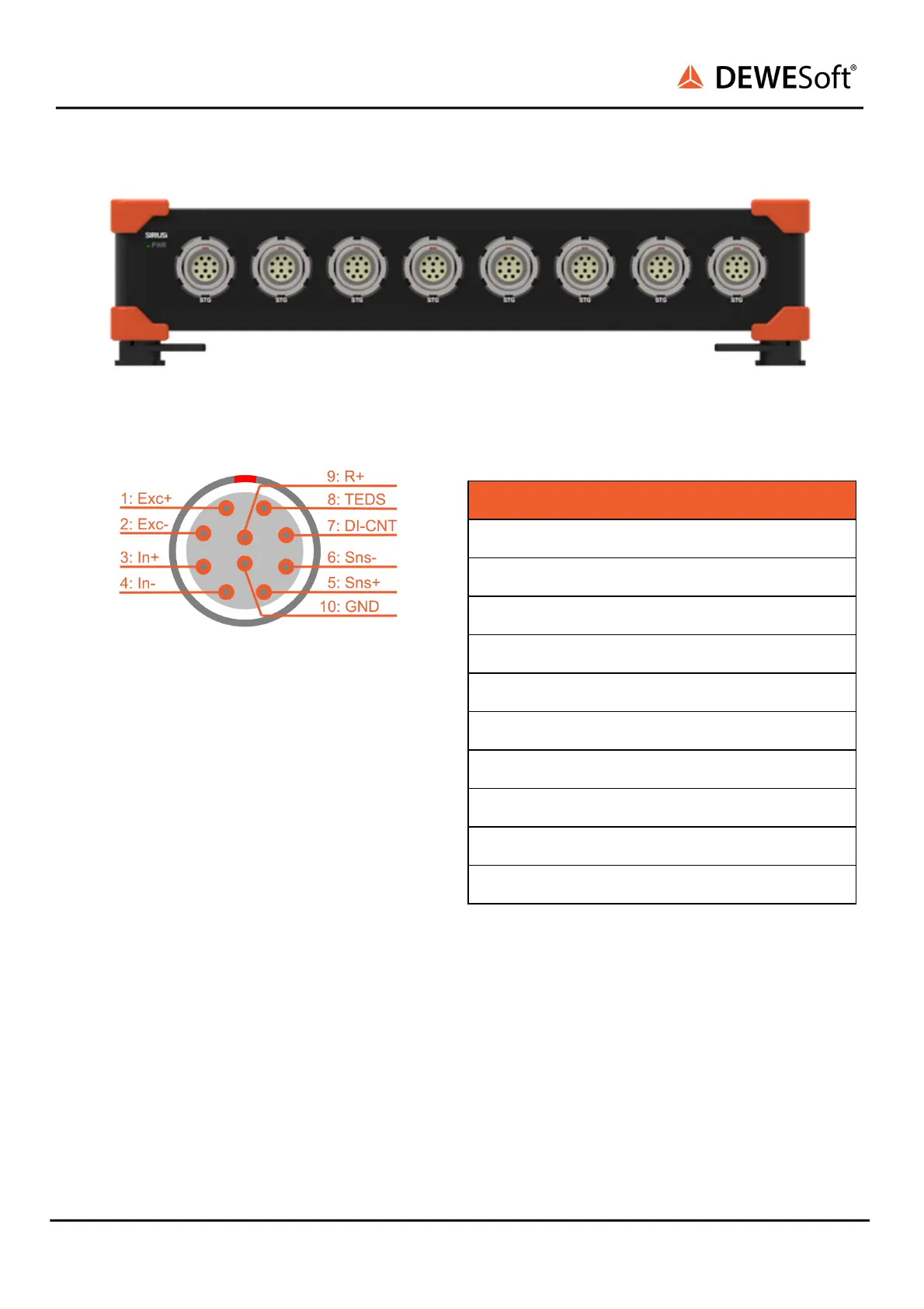

STG-L2B10f connector: pin-out (10-pin LEMO female) 


Mating Connector: FGG.2B.310.CLADxx 

Pin 
Name 
Description 
1 
Exc + 
Excitation + 
2 
Exc - 
Excitation - 
3 
In+ 
Input + 
4 
In- 
Input - 
5 
Sns+ 
Sense + 
6 
Sns- 
Sense - 
7 
Di-Cnt 
Digital I/O, Counter 
8 
TEDS 
TEDS 
9 
R+/SHUNT 
Resistance / SHUNT 
10 
GND 
Ground-iso 

 
