4.14.2.1. Rack system with EtherCAT 
Because the sync junction is already built into the IOLITE, R1DB/R2DB, R4, R8, R2 or MINITAURs DAQ                 
systems, the ECAT sync junction is not required when extending the measurement system with              
EtherCAT devices. 



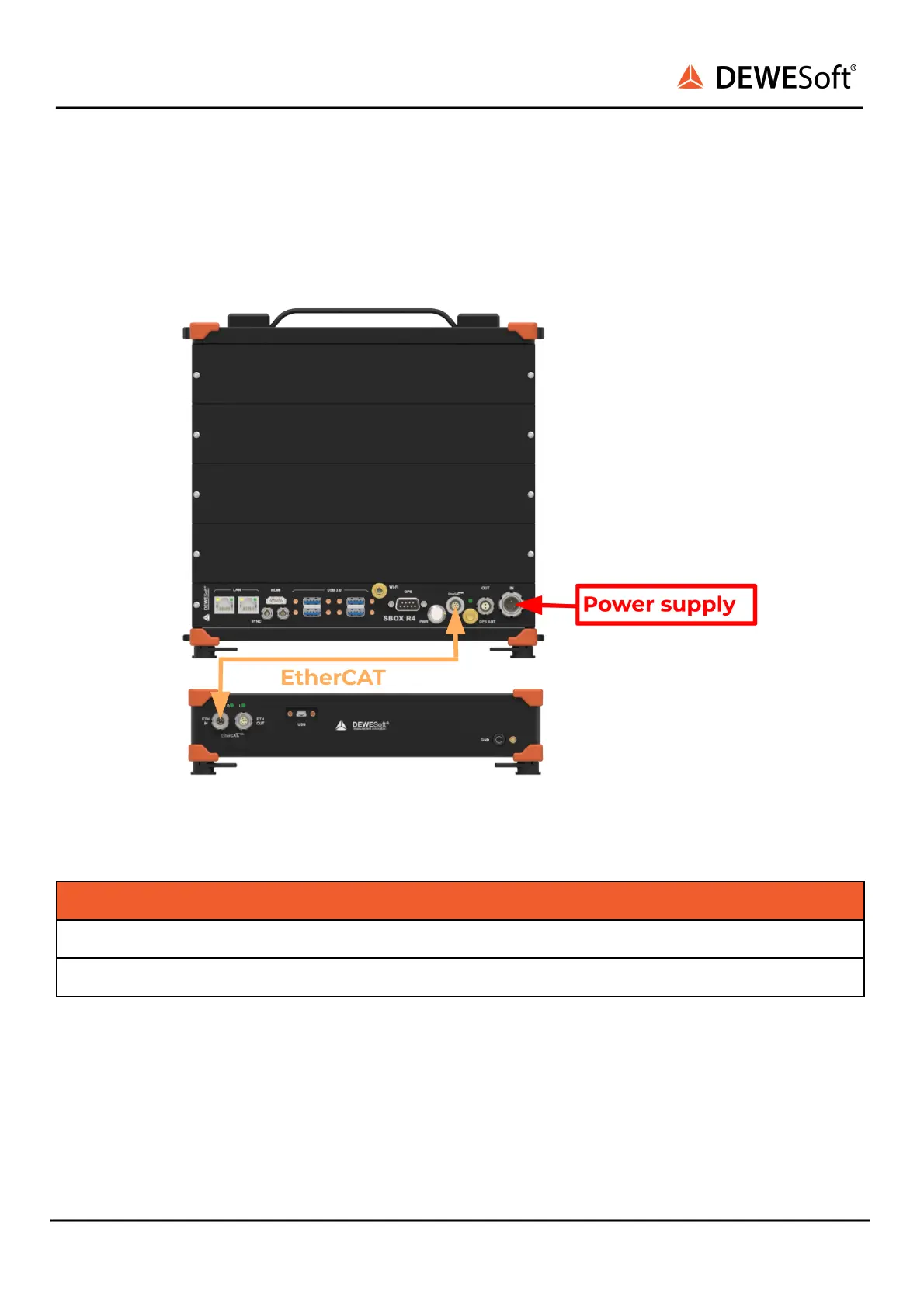

Connection between R4 and SIRIUSe 

List of required cables: 

Function 
Dewesoft order code 
Power supply 
PS-200-L2T3F 
Ethercat 
EtherCAT to EtherCAT: L1T8m-L1T8f 

 
