SIRIUS
®
TECHNICAL REFERENCE MANUAL

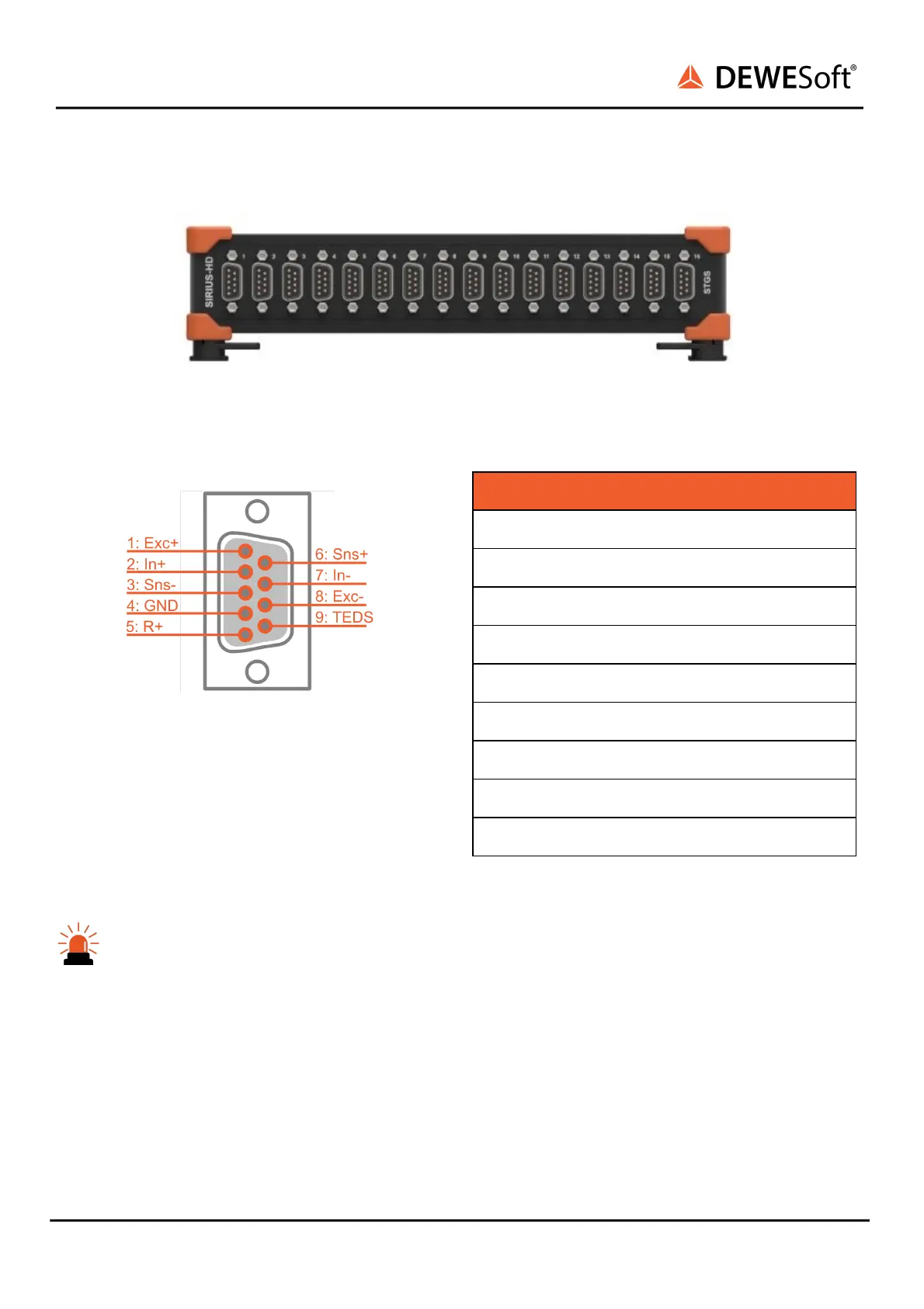

5.17.2. HD-STGS
SIRIUSi-HD-16xSTGS
HD-STGS connector: pin-out (DSUB-9 female)
Pin
Name
Description
1
Exc +
Excitation +
2
In+
Input +
3
Sns-
Sense -
4
GND
Ground
5
R+
¼ Bridge/Shunt
6
Sns+
Sense +
7
In-
Input -
8
Exc-
Excitation -
9
TEDS
TEDS
Caution
DSUB-9 mating connector backshells shall be no more than 15.0 mm wide in order to populate
all 16 channels at once.
SIRIUS
®
V20-1 220 / 336

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the DEWESOFT SIRIUS Series and is the answer not in the manual?

DEWESOFT SIRIUS Series Specifications

General IconGeneral
CategoryData Loggers
ManufacturerDEWESOFT
SeriesSIRIUS
Resolution24-bit
InterfaceUSB, EtherCAT
SoftwareDEWESoft X
ChannelsExpandable
Sampling RateUp to 200 kS/s per channel
Input TypesVoltage, Current, IEPE, Strain, Thermocouple, RTD, Resistance, Digital, Counter
Input Voltage Range±10 V, ±200 V
IsolationChannel-to-channel and channel-to-ground
ConnectivityEthernet, USB
Operating Temperature-10 °C to +50 °C
Storage Temperature-20 °C to +70 °C
Power Supply10 to 30 V DC
DimensionsVaries depending on module configuration
WeightVaries depending on module configuration
Analog InputsYes, depending on module configuration
