5.14.6. STG+ (Counter) 

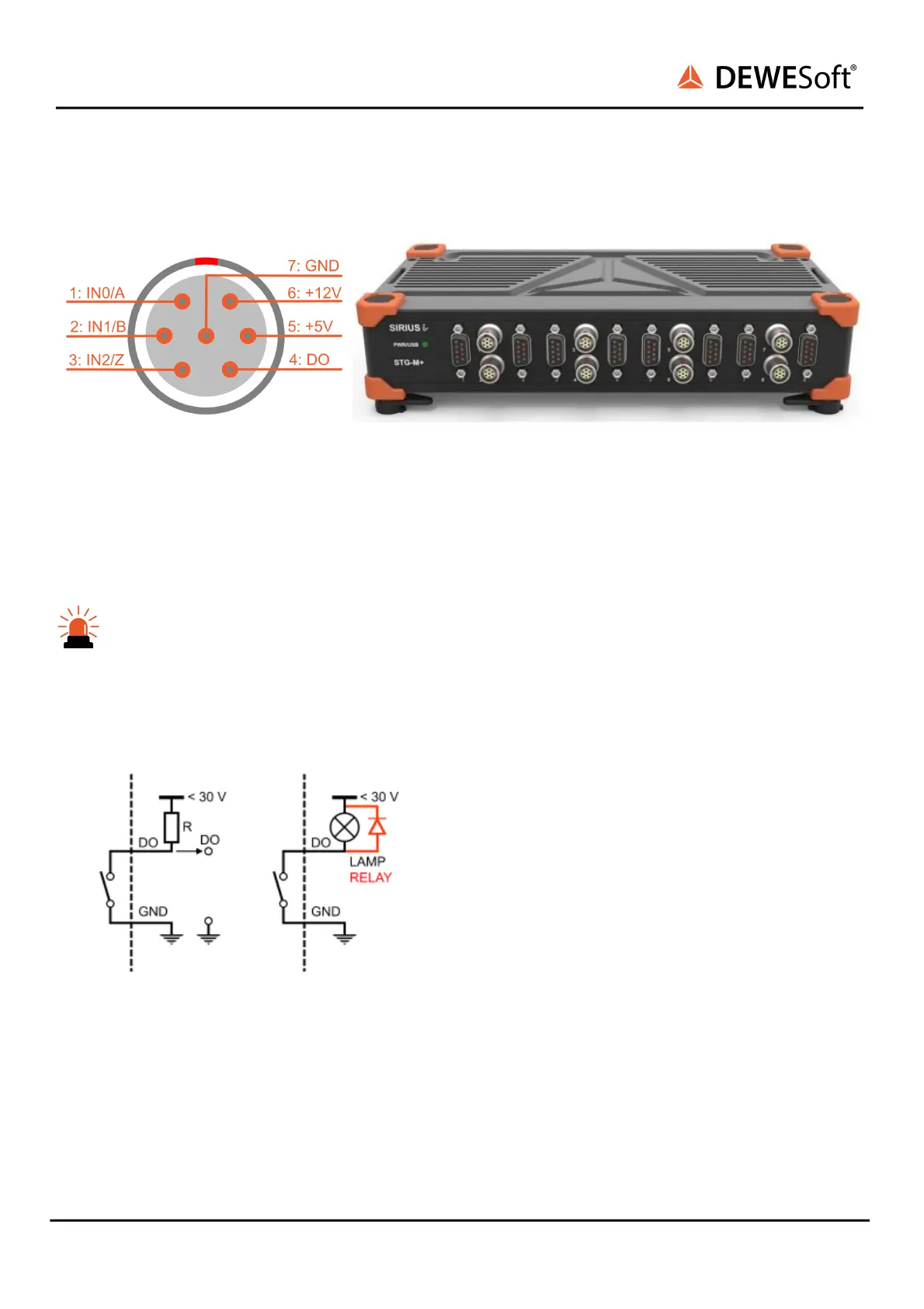

CNT connector: pin-out (7-pin LEMO 
female) 
SIRIUSi 8xSTG+ 

Connector type L1B7f 
Connector on the module: EGG.1B.307.CLL 
Mating cable connector: FGG.1B.307.CLAD52 


Caution 
GND of the counter input is connected to the GND of the analog channel. 

Digital output configuration 
The “switch” of the open collector output is closed when active. 


 
