DEWESOFT SIRIUS Series

/
SIRIUS
® 
TECHNICAL REFERENCE MANUAL 


5.22.2. HS-STG 

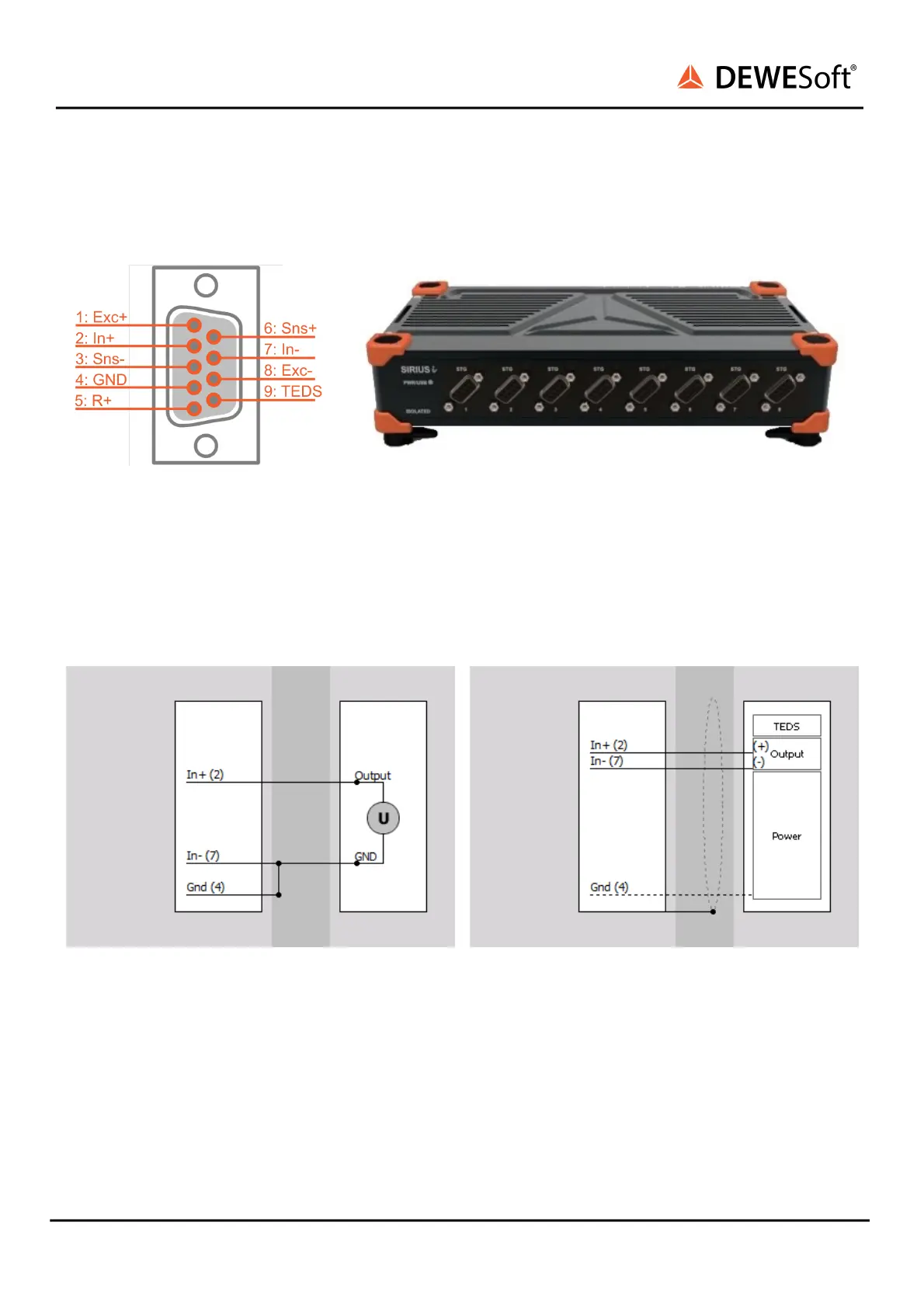

HS-STG connector: pin-out (DSUB-9 
female) 
SIRIUSi-HS-8xSTG 
5.22.2.1. HS-STG: Voltage 
Voltage - Single ended 



Voltage – Differential 
Use only when sensor Output (+) and Output (-) 
are referenced to Gnd. Gnd must be connected.

SIRIUS
®
V20-1 247 / 336  
