SIRIUS
®
TECHNICAL REFERENCE MANUAL
4.14.3. Mixed system
If a similar mixed system is being built, take into consideration that IOLITE-s has an internal sync
junction for synchronization.

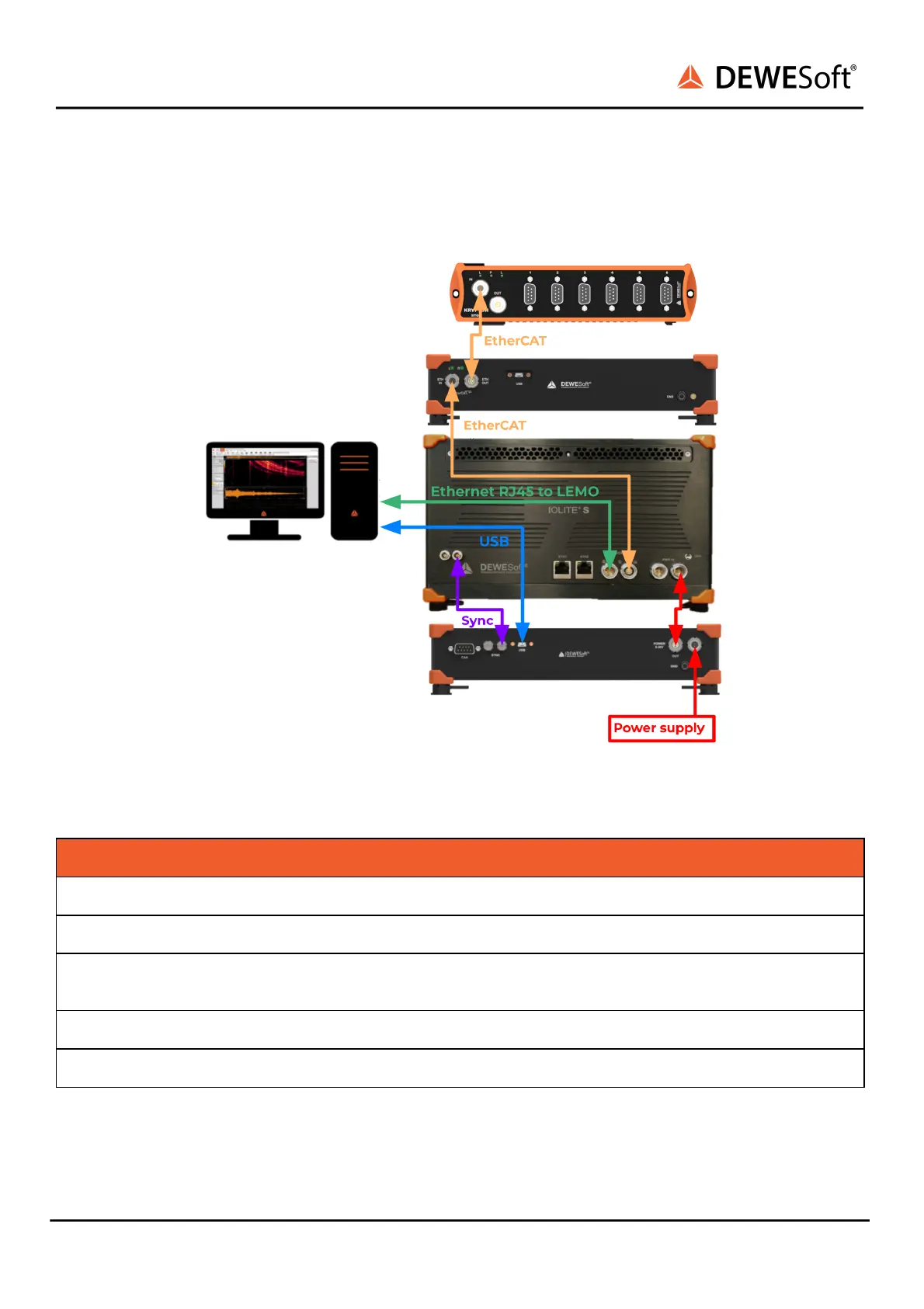

A mixed system with a built-in sync junction
List of required cables:
Function
Dewesoft order code
Power supply
PS-120-L1B2f
Supply Daisy chain
L1B2m-L1B2f
Ethercat
EtherCAT to EtherCAT: L1T8m-L1T8f,
ECAT - PC connection: L1T8f-RJ45
Synchronization
L00B4m-L00B4m
USB
USB1-USB2s or USB1s-USB2s
SIRIUS
®
V20-1 106 / 336
