DEWESOFT SIRIUS Series User Manual

/
SIRIUS
® 
TECHNICAL REFERENCE MANUAL 


5.4.1.2. EtherCAT® connector 
The EtherCAT® connector can provide power and transfer the measurement data plus synchronisation             
signal in one single cable. SIRIUS® EtherCAT® slices have 2 connectors, so that you can easily chain                 
multiple slices together. 



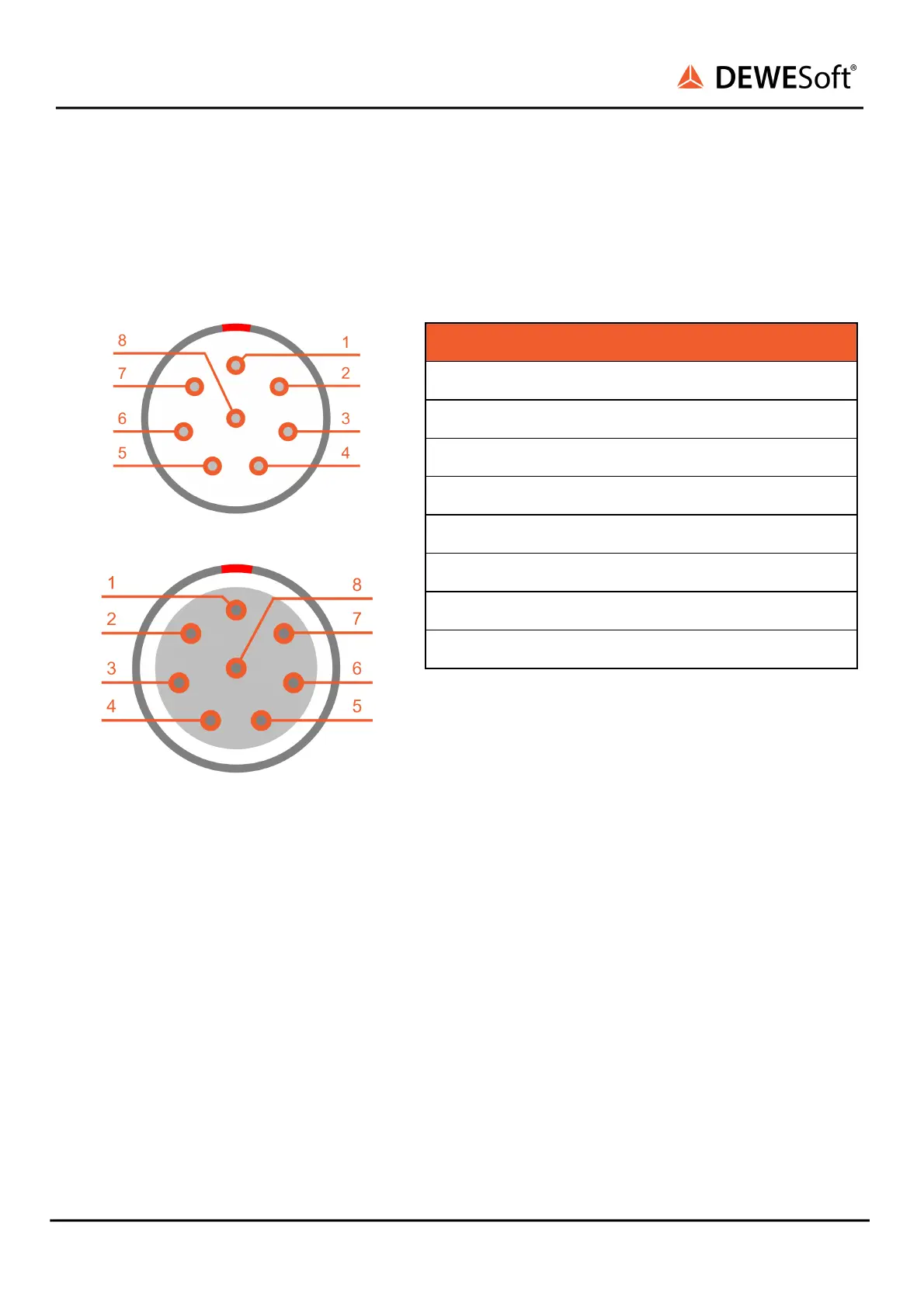

EtherCAT IN connector: pin-out (8-pin LEMO male) 

EtherCAT OUT connector: pin-out (8-pin LEMO female) 

Pin 
Name 
Description 
1 
TX_P 
Transmission + 
2 
TX_N 
Transmission - 
3 
RX_P 
Reception + 
4 
RX_N 
Reception - 
5 
VCC 
PWR OUT 
6 
VCC 
PWR OUT 
7 
GND 
Ground 
8 
GND 
Ground 


Connectors (on the device): 
EGG.1T.308.CLN LEMO 8-pin female 
EGJ.1T.308.CLD LEMO 8-pin male 

Mating connector (for the cable): 
FGG.1T.308.CLA.1433 cable, MALE 
FGJ.1T.308.CLL.1433 cable FEMALE 
 
SIRIUS
®
V20-1 47 / 336  

DEWESOFT SIRIUS Series Specifications

General

Category	Data Loggers
Manufacturer	DEWESOFT
Series	SIRIUS
Resolution	24-bit
Interface	USB, EtherCAT
Software	DEWESoft X
Channels	Expandable
Sampling Rate	Up to 200 kS/s per channel
Input Types	Voltage, Current, IEPE, Strain, Thermocouple, RTD, Resistance, Digital, Counter
Input Voltage Range	±10 V, ±200 V
Isolation	Channel-to-channel and channel-to-ground
Connectivity	Ethernet, USB
Operating Temperature	-10 °C to +50 °C
Storage Temperature	-20 °C to +70 °C
Power Supply	10 to 30 V DC
Dimensions	Varies depending on module configuration
Weight	Varies depending on module configuration
Analog Inputs	Yes, depending on module configuration
