4.3. Miscellaneous  
4.3.1. Click mechanism 
You can use the SIRIUS slices independently or combine them to a single fully-synchronised              
multi-channel measurement system. The clever Click mechanism makes it easy to physically attach             
modules to each other. Click mechanism is available for Modular Solutions, Hub Solutions, SIRIUS Mini,               
SIRIUS PCM, SIRIUS-SBOXe, SIRIUS-SBOXfe and some accessories e.g. Battery Packs and Mounting            
plates. 
To lock two SIRIUS modules turn all four tabs on the bottom of the module into the open position. Now                    
fit the module right above the fitting of the second module and stack it together as shows the picture                   
below ❶ . Make sure that it fits well and then turn the four tabs towards the inside of the module to hear                      
the click ❷ . 


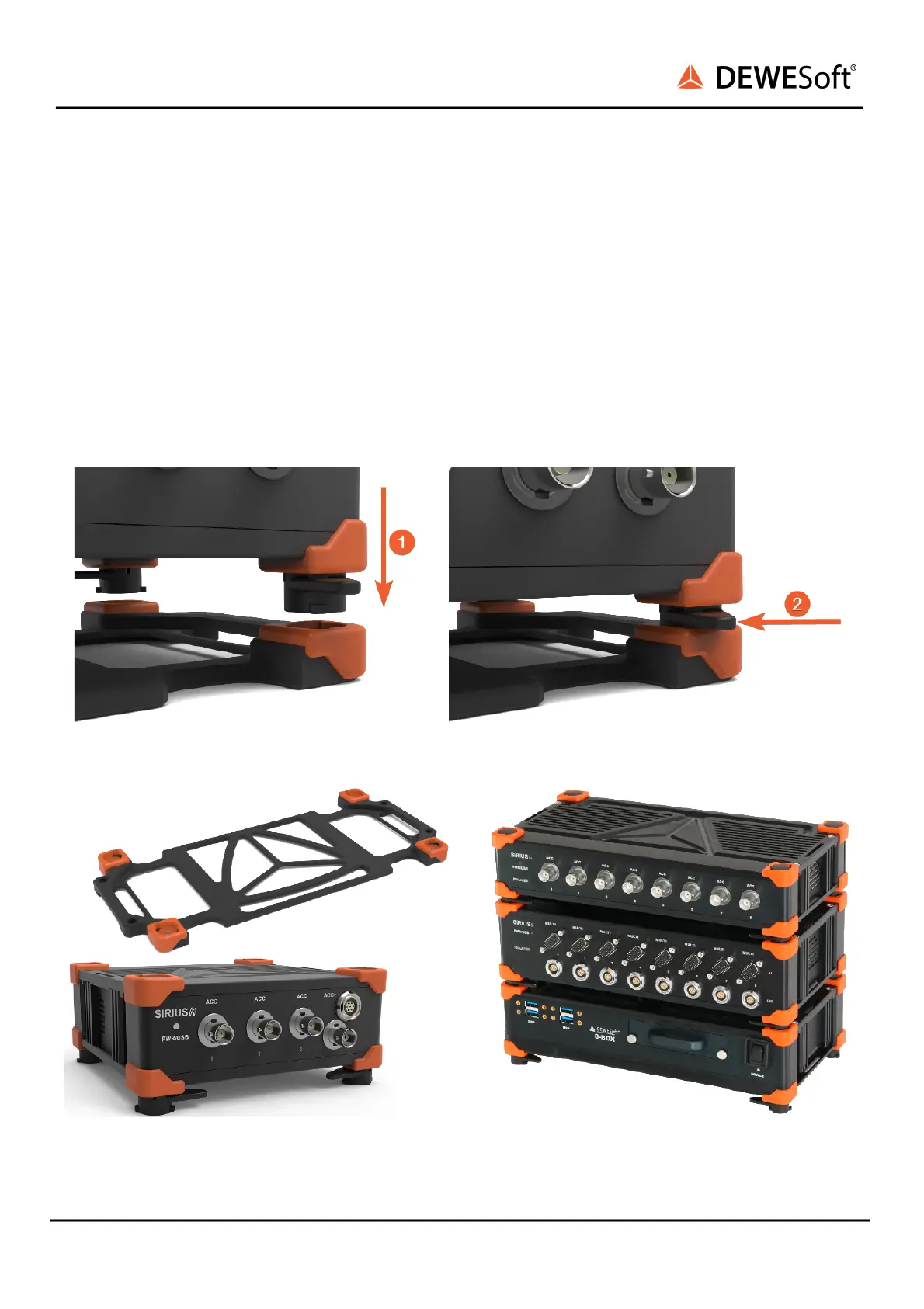

The steps of how to stack the SIRIUS modules with the Click mechanism 

Options of using the SIRIUS Click mechanism 
SIRIUS
®
V20-1 41 / 336  

DEWESOFT SIRIUS Series Specifications

General

Category	Data Loggers
Manufacturer	DEWESOFT
Series	SIRIUS
Resolution	24-bit
Interface	USB, EtherCAT
Software	DEWESoft X
Channels	Expandable
Sampling Rate	Up to 200 kS/s per channel
Input Types	Voltage, Current, IEPE, Strain, Thermocouple, RTD, Resistance, Digital, Counter
Input Voltage Range	±10 V, ±200 V
Isolation	Channel-to-channel and channel-to-ground
Connectivity	Ethernet, USB
Operating Temperature	-10 °C to +50 °C
Storage Temperature	-20 °C to +70 °C
Power Supply	10 to 30 V DC
Dimensions	Varies depending on module configuration
Weight	Varies depending on module configuration
Analog Inputs	Yes, depending on module configuration
