SIRIUS
®
TECHNICAL REFERENCE MANUAL
4.9. SIRIUS-R3
R3 is a rack mountable DAQ system built into standard PC computer chassis and integrated SIRIUS data
acquisition slices. Ready for simple and inexpensive upgrade of PC components.
R3 can be easily mounted into 19-inch rack cabinet. The aluminium chassis includes handles with
screws or easy slide-in mechanism.

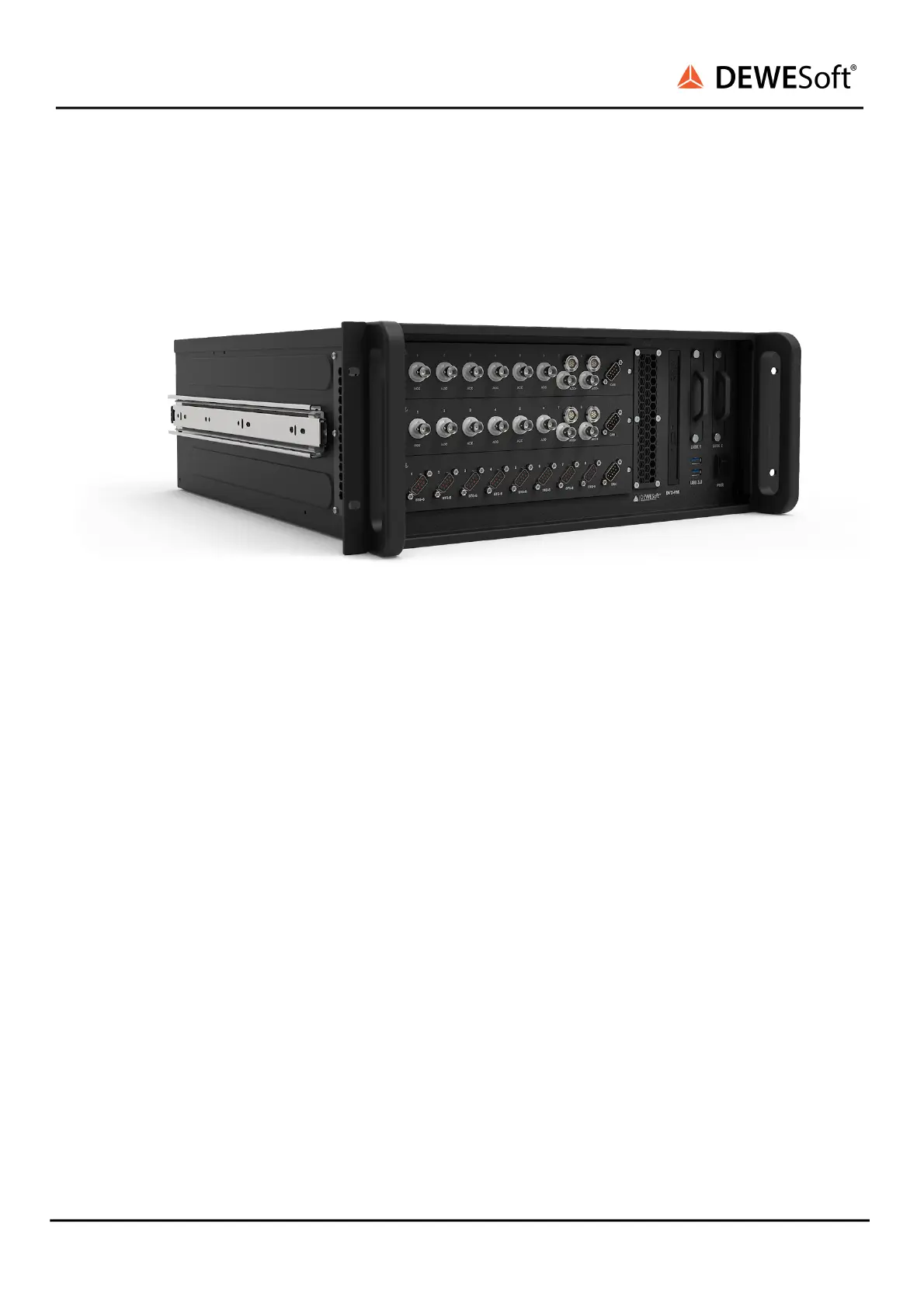

SIRIUS-R3
Main features:
● HIGH-END SIGNAL CONDITIONING: R3 data acquisition system is built around SIRIUS DAQ
technology and features the same versatile and powerful amplifiers for world-leading signal
conditioning.
● UP TO 48 ANALOG INPUTS: R3 can be configured with up to three SIRIUS DAQ slices for a total of
32 analog inputs for virtually any sensor.
● UP TO 24 COUNTER/ENCODER INPUTS: Up to 16 counter/encoder or 48 digital input channels, all
equipped with our patented SUPERCOUNTER technology.
● UP TO 3 ISOLATED CAN PORTS: Up to 3 high speed CAN 2.0b channels with 1 Mbit/sec data
throughput with additional support for CCP, OBDII, J1939, and CAN output.
● HIGH-PERFORMANCE COMPUTER: PC computer inside is built with standard off the shelf
computer components which allows easy upgrade of hard-drive, memory, CPU, and other
components.
● 19'' RACK MOUNTABLE: The included PC chassis can be mounted in any 19'' rack cabinet.
● SENSOR POWER SUPPLY: Each channel provides power for sensor excitation.
● DIGITAL/COUNTER/ENCODER INPUTS: Each channel is capable of 3x digital inputs, 1x event
counter, encoder, period, pulse-width, duty-cycle. Precise frequency and angle measurement
use patented SUPERCOUNTER® technology.
● FULLY SYNCHRONIZED: Each channel, either analog, digital or CAN is synchronized with
microsecond accuracy.
● SOFTWARE INCLUDED WITH FREE LIFETIME UPGRADES: Easy to use and rich in functionality,
our award-winning Dewesoft X software is included with every R3 instrument. Dewesoft X is not
only the best DAQ software but also offers lifetime FREE software upgrades.
SIRIUS
®
V20-1 73 / 336
