TECHNICAL REFERENCE MANUAL 


3.4. Advanced configuration 


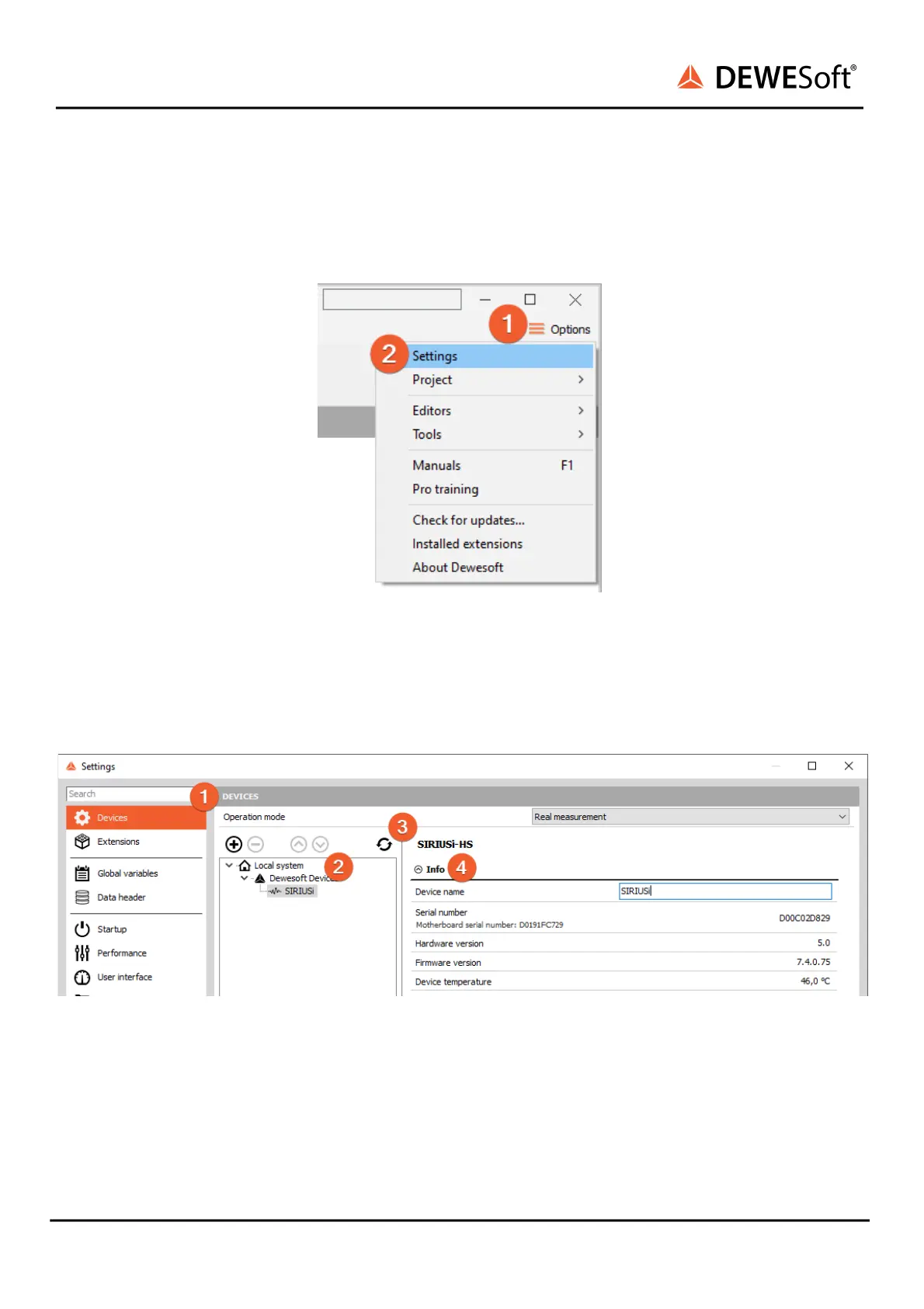

Note, that the Dewesoft launcher has already done the hardware setup for you – you can check this in                   
the Settings dialogue. Click the Option button ❶ – and then click the Settings menu item ❷ . 


Open settings dialogue 

The settings window will appear where all the currently connected devices will be seen. 

If you add a device while this screen is open (or if your device is not shown yet), you can press the                      
Refresh button ❸ to scan for devices. When you select a device from the list you will see all the device                     
details and settings in the right area ❹ . 

Real measurement mode 
3.4.1. Counters and CAN 
The use of analog inputs, CAN and digital interface is the same as with all other DAQ devices, which are                    
supported in DEWESoft®. Please consult the DEWESoft® online-help for more information (see “Help -              
Manual”). 
SIRIUS
®
V20-1 22 / 336  

DEWESOFT SIRIUS Series Specifications

General

Category	Data Loggers
Manufacturer	DEWESOFT
Series	SIRIUS
Resolution	24-bit
Interface	USB, EtherCAT
Software	DEWESoft X
Channels	Expandable
Sampling Rate	Up to 200 kS/s per channel
Input Types	Voltage, Current, IEPE, Strain, Thermocouple, RTD, Resistance, Digital, Counter
Input Voltage Range	±10 V, ±200 V
Isolation	Channel-to-channel and channel-to-ground
Connectivity	Ethernet, USB
Operating Temperature	-10 °C to +50 °C
Storage Temperature	-20 °C to +70 °C
Power Supply	10 to 30 V DC
Dimensions	Varies depending on module configuration
Weight	Varies depending on module configuration
Analog Inputs	Yes, depending on module configuration
