SIRIUS
®
TECHNICAL REFERENCE MANUAL
6.1.5.2. ADC digital filter and oversampling
SIRIUS® will automatically adjust the oversampling depending on the sample rate.
The digital filter cut off frequency is automatically set to half of the sample rate and the internal
sampling frequency is up to 256 times higher than the output rate:
Digital Filter (vs. Sample Rate)
0.1 ... 51.2 kS/s
51.2 ... 102.4 kS/s
102.4 ... 204.8 kS/s
Bandwidth (-3 dB)
0.494 fs
0.49 fs
0.38 fs
Alias-free Bandwidth
DC to 0.42 fs
DC to 0.32 fs
DC to 0.22 fs
Alias Rejection
-95 dB
-92 dB
-97 dB
Delay through ADC
12 / fs
9 / fs
5 / fs
Oversampling
256
128
64
The filter characteristics of the digital ADC filter will also change automatically depending on the
sample rate. 

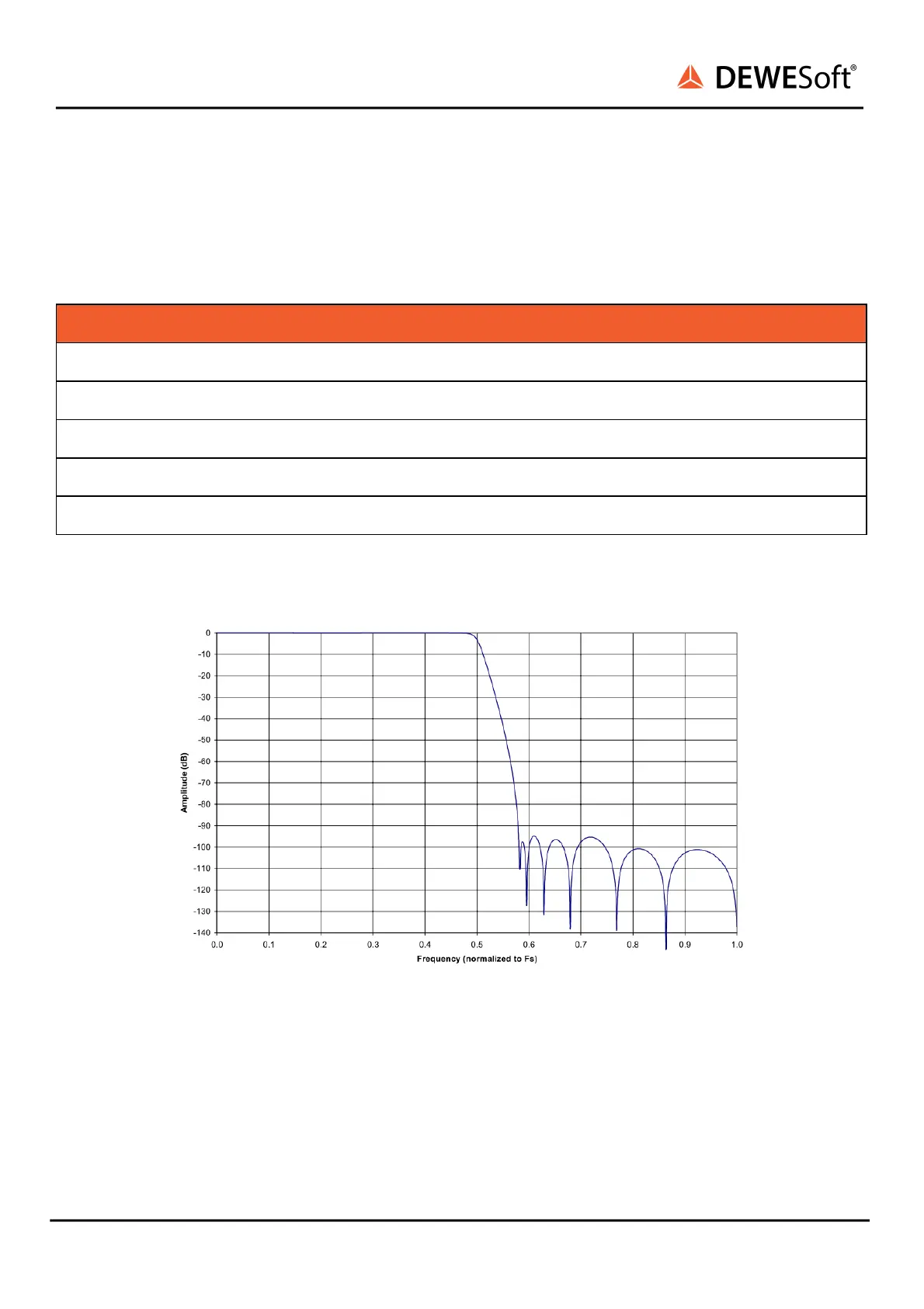

Sample rate 100 Hz to 51.2 kHz stopband rejection
SIRIUS
®
V20-1 282 / 336
