4.10.5. SIRIUS-R2/R4: Front side 


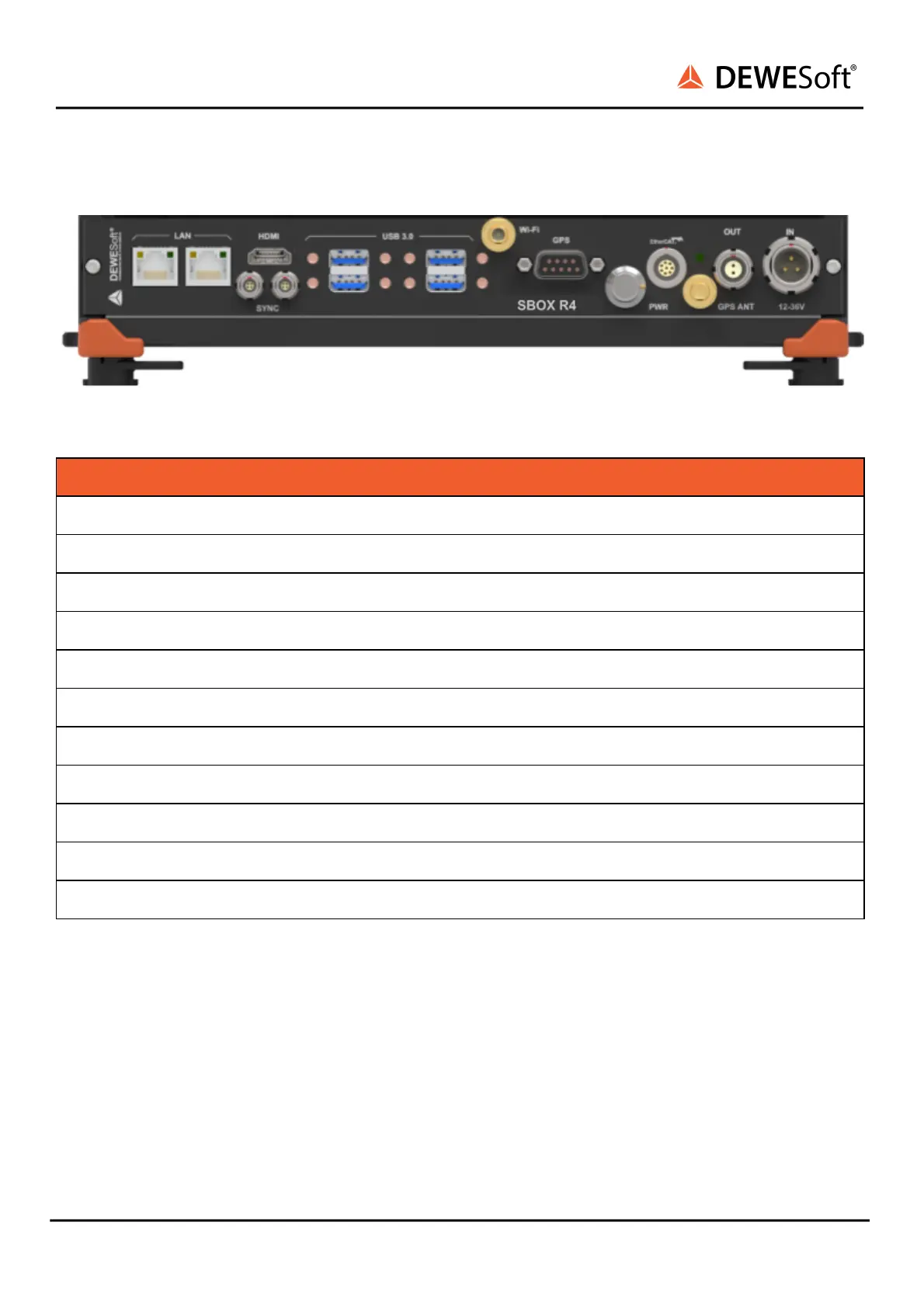

SIRIUS-R4 Front side (SBOX R4) 

On the front side of the SIRIUS-R4 or SBOXse you can find these connectors: 
Name 
Description 
LAN 
2x Ethernet 1 Gbps, RJ45 connector 
Wi-Fi 
RP-SMA Female WLAN antenna: WiFi 802.11 b/g/n 
HDMI 
HDMI Video out 
GPS ANT 
SMA Female GPS antenna 
EtherCAT 
8-pin LEMO female connector 
PWR 
To switch the SBOX on or off. 
GPS 
DSUB-9 female GPS connector 
OUT 
Power out 2-pin LEMO female connector 
SYNC 
2x 4-pin LEMO male sync connector 
IN 
Power in 3-pin LEMO male connector 
USB 3.0 
4x USB 3.0 

 
SIRIUS
®
V20-1 81 / 336  
