4.2.1.2. Single slice: Rear side 
The SIRIUS® USB chassis has following connectors at the rear side: 


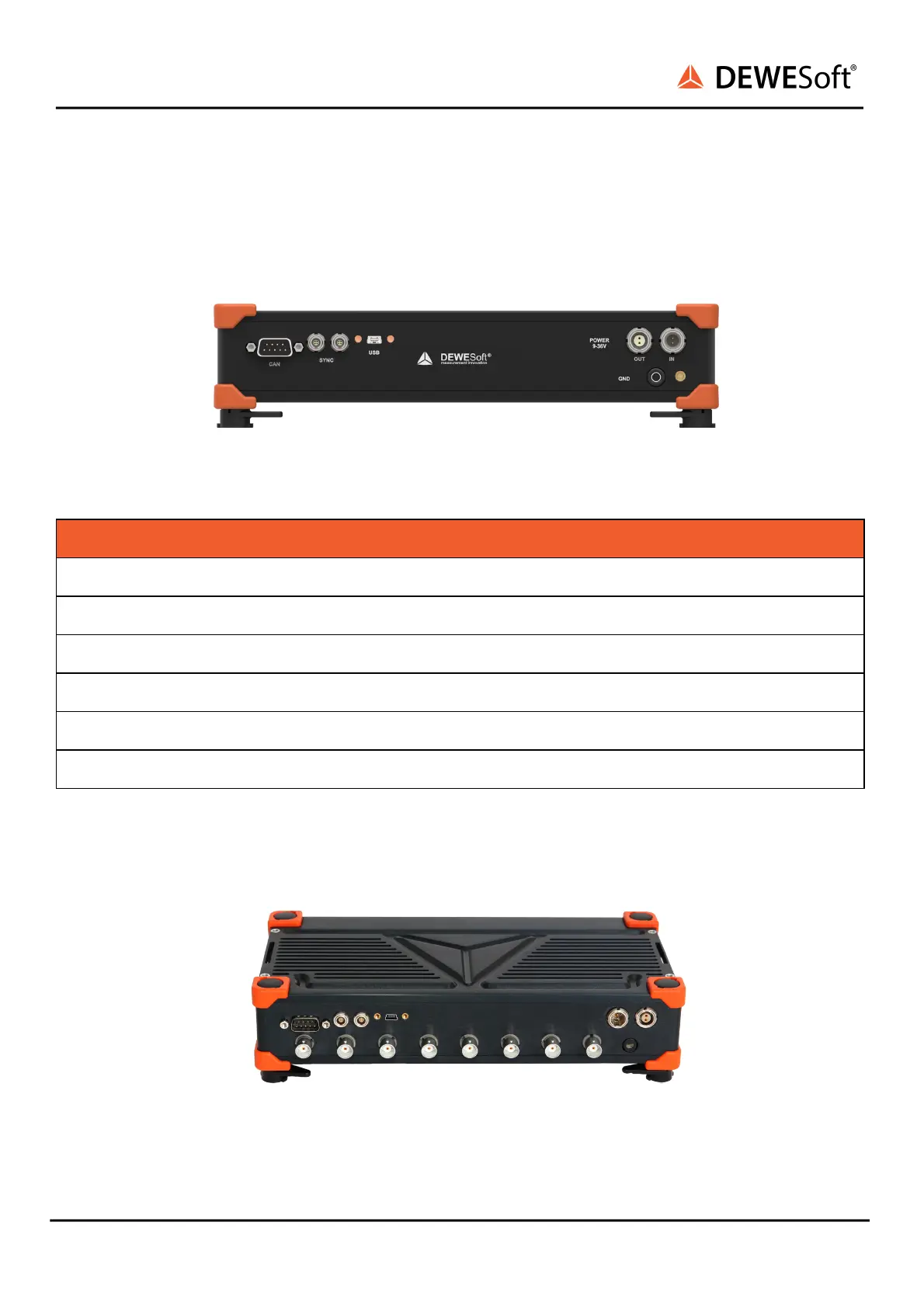

SIRIUS rear side 

Name 
Description 
CAN 
CAN bus DSUB-9 male connector 
SYNC 
Two 4-pin LEMO female sync connectors 
USB 
USB-mini to transfer the data to the SBOX or PC 
GND 
Protective Ground banana plug and M4 screw insert. 
POWER IN 
2-pin LEMO male connector 
POWER OUT 
2-pin LEMO female connector 
Analog-out connectors 
The optional analog output version of the SIRIUS Single Slice has 8 additional BNC connectors for the                 
analog output channels on the rear side (for detailed information see chapter: Analog out option). 

Rear side connectors of the analog-out version 
SIRIUS
®
V20-1 35 / 336  

DEWESOFT SIRIUS Series Specifications

General

Category	Data Loggers
Manufacturer	DEWESOFT
Series	SIRIUS
Resolution	24-bit
Interface	USB, EtherCAT
Software	DEWESoft X
Channels	Expandable
Sampling Rate	Up to 200 kS/s per channel
Input Types	Voltage, Current, IEPE, Strain, Thermocouple, RTD, Resistance, Digital, Counter
Input Voltage Range	±10 V, ±200 V
Isolation	Channel-to-channel and channel-to-ground
Connectivity	Ethernet, USB
Operating Temperature	-10 °C to +50 °C
Storage Temperature	-20 °C to +70 °C
Power Supply	10 to 30 V DC
Dimensions	Varies depending on module configuration
Weight	Varies depending on module configuration
Analog Inputs	Yes, depending on module configuration
