SIRIUS
®
TECHNICAL REFERENCE MANUAL
4.2.4. Rack enclosure
SIRIUS Slices are also available as modular rack system versions.
Important
Notes for the rack series:
SIRIUSr Rack slices can be changed between different Rack enclosures (R2, R4, R3, R8).
Depending on original configuration Rack slices will be orientated either horizontal or
vertical (settings and front panel engravings).
All R8 rack versions contain an integrated PC and you can choose up to 8 SIRIUS®
measurement slices.
R2 and R4 instruments can be equipped either with SBOX PC or USB HUB.
All module combinations are possible (except for the Extended Height Enclosure
modules) The Dual-Core series can be mixed with HD (High Density) and HS (High Speed)
modules. You can even mix isolated and differential slices. 
All slices are internally connected to SBOX PC via USB / Sync / Power / GND.
In comparison to the Modular Solution, the Rack has the CAN connectors on the same
side as the analog channels, except HD where CAN connector is not possible.
The analog output option is available only for the on SIRIUS-R8 (the other Rack versions
have the display where the analog output would be). 
The analog output option is also available on SIRIUS-R2 and R4.
R2, R4 and R8 instruments can be also configured with EtherCAT Slave ports.
Please see individual chapters in this manual for details. 

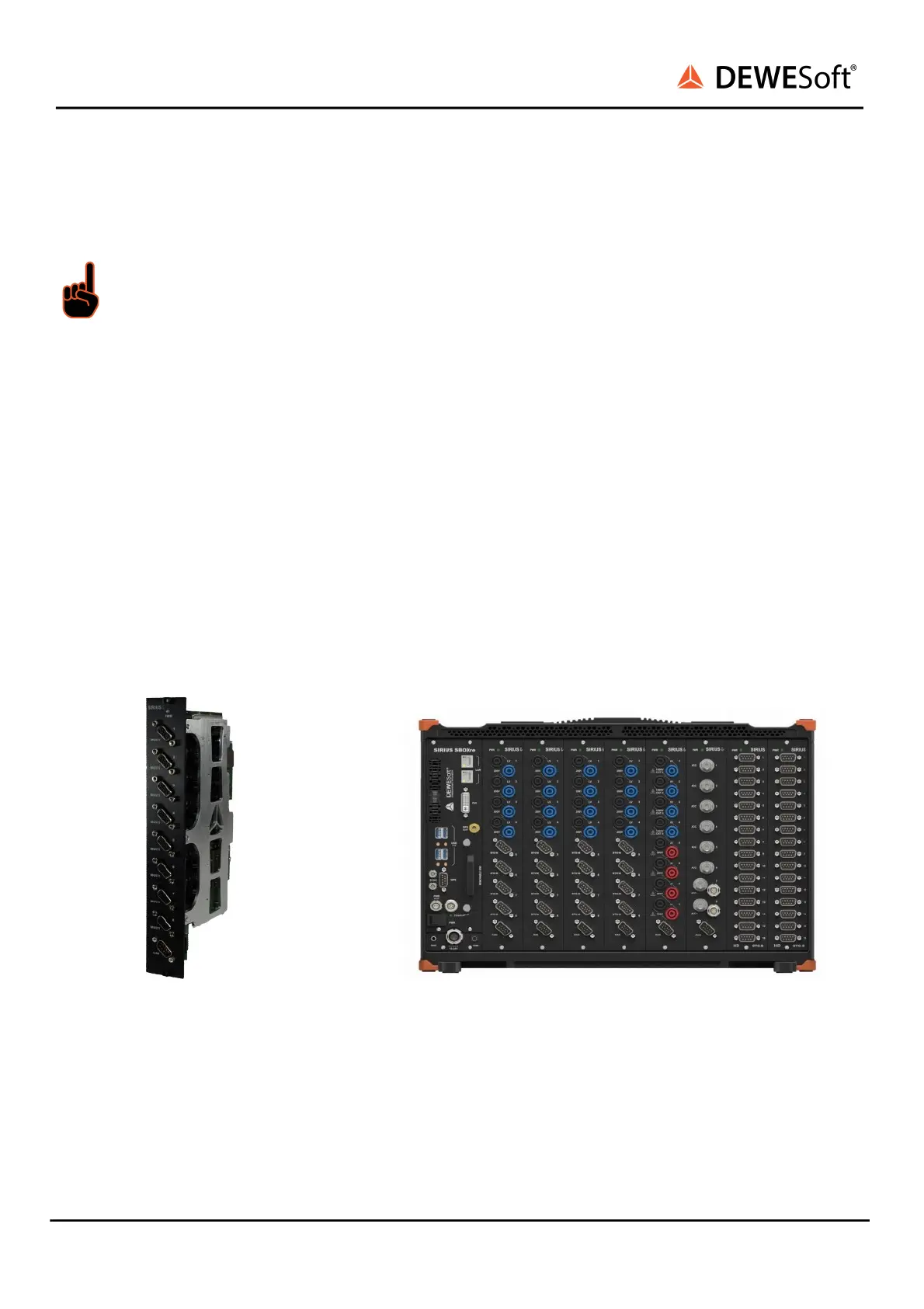

SIRIUS® Rack slice SIRIUS® Rack with 8 measurement slices
SIRIUS
®
V20-1 39 / 336
