5.12.3. MULTI-L2B16f (STGM-L2B16f) 
Important 
For STGM-L2B16f MULTI: Specifications will apply, Analog Out is Not Connected! 




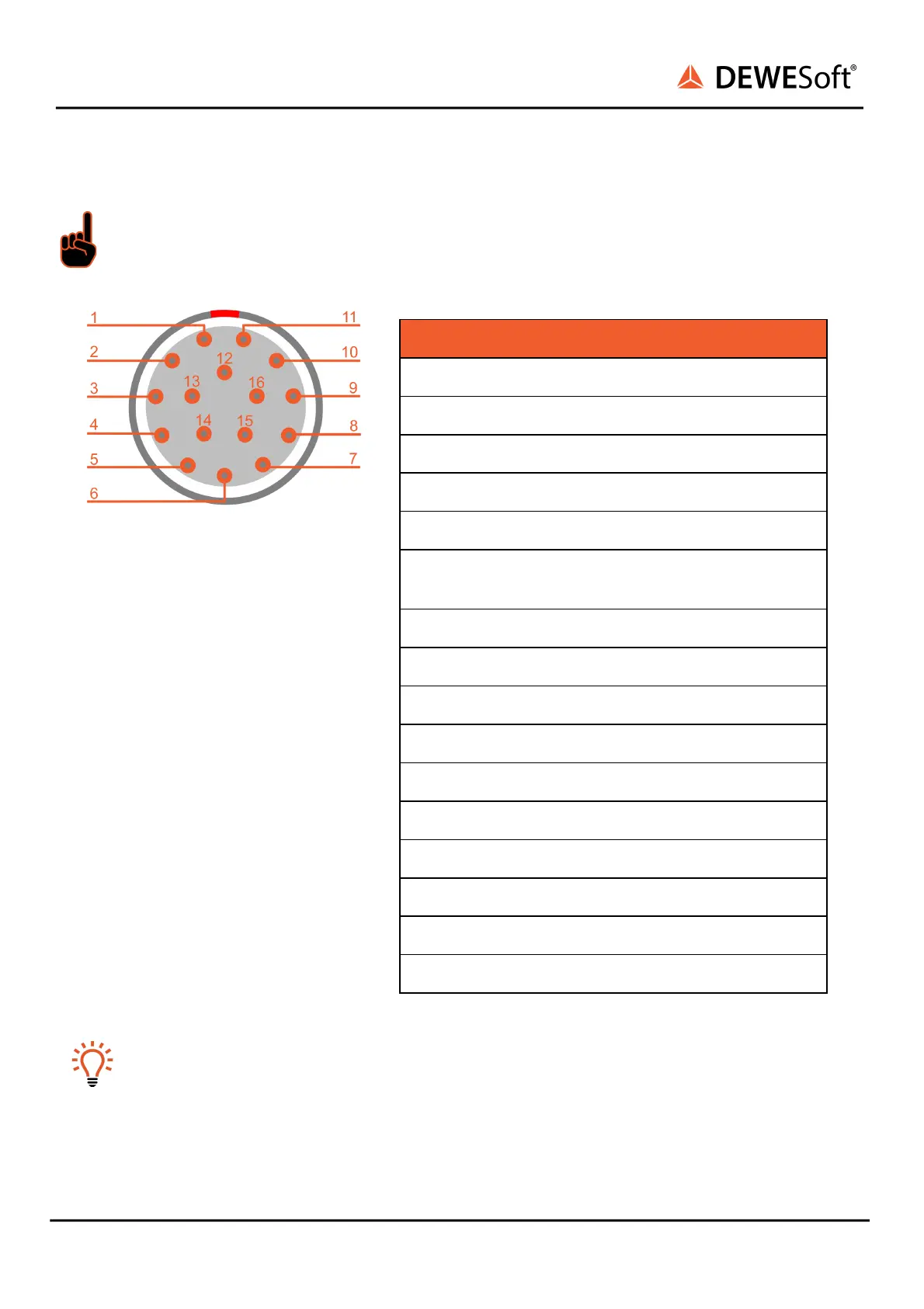

MULTI-L2B16f connector: pin-out 
(16-pin LEMO female) 

Pin 
Name 
Description 
1 
TEDS 
TEDS 
2 
Exc- 
Excitation - 
3 
Exc + 
Excitation + 
4 
R+ 
¼ Bridge/Shunt 
5 
In+ 
Input + 
6 
Aout 
NC 
Analog output (w. MULTI) 
Not Connected (w. STGM) 
7 
Sns+ 
Sense + 
8 
Sns- 
Sense - 
9 
GND 
Ground 
10 
In- 
Input - 
11 
+5V 
+5 V (max. 100 mA) supply 
12 
+14V5 
+14.5 V (max. 50 mA) supply 
13 
IN0/A 
Counter input IN0/A 
14 
IN1/B 
Counter input IN1/B 
15 
IN2/Z 
Counter input IN2/Z 
16 
-14V5 
-14.5 V (max. 50 mA) supply 


Hint 
You can use the analog input, analog output and counters at the same time. 
 
