4.4.1.2. Power in connector 


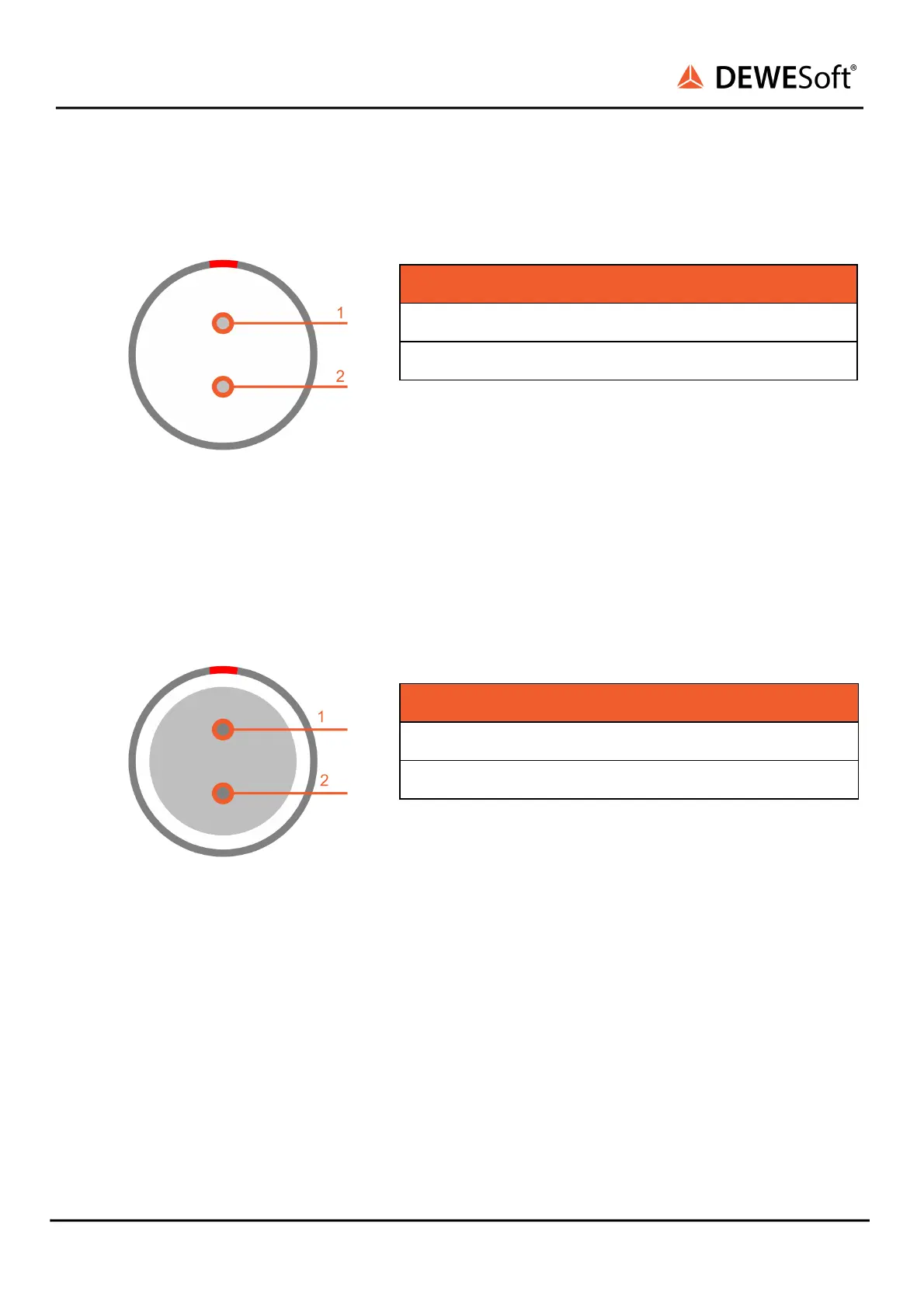

Power in connector: pin-out (2-pin LEMO male) 

Pin 
Name 
Description 
1 
V + 
Supply 
2 
V - 
Ground 

Power In connector (on the device): EXJ.1B.302.CLA 
Mating connector (for the cable): FGJ.1B.302.CLLD52Z 
4.4.1.3. Power out connector 
Power out connector: pin-out (2-pin LEMO female) 

Pin 
Name 
Description 
1 
V+ 
Supply 
2 
V- 
Ground 

Power Out connector (on the device): EXG.1B.302.CLL 
Mating connector (for the cable): FGG.1B.302.CLAD52Z 
The Power Out power plug can be used to daisy-chain several devices together. 
Daisy chain cable: L1B2m-L1B2f 

SIRIUS
®
V20-1 46 / 336  

DEWESOFT SIRIUS Series Specifications

General

Category	Data Loggers
Manufacturer	DEWESOFT
Series	SIRIUS
Resolution	24-bit
Interface	USB, EtherCAT
Software	DEWESoft X
Channels	Expandable
Sampling Rate	Up to 200 kS/s per channel
Input Types	Voltage, Current, IEPE, Strain, Thermocouple, RTD, Resistance, Digital, Counter
Input Voltage Range	±10 V, ±200 V
Isolation	Channel-to-channel and channel-to-ground
Connectivity	Ethernet, USB
Operating Temperature	-10 °C to +50 °C
Storage Temperature	-20 °C to +70 °C
Power Supply	10 to 30 V DC
Dimensions	Varies depending on module configuration
Weight	Varies depending on module configuration
Analog Inputs	Yes, depending on module configuration
