SIRIUS

® 

TECHNICAL REFERENCE MANUAL 



Bridge connection types 

Bridge type 

Full bridge 

Ranges @ 10 Vexc(low 

range) 

2 mV/V…1000 mV/V free programmable with Dual Core 

Input short, Sensor offset 

adjust 

Software selectable 

Counters (only on LV+ type) 

Inputs 

1 digital counter input 

3 digital inputs 

Fully synchronised with analog data 

Alarm output 

Counter modes 

Counting, waveform timing, encoder, tacho, gear-tooth sensor 

General Counter 

Speciﬁcations 

See "SIRIUS counter speciﬁcations" 

Additional Speciﬁcations 

Misc function 

Excitation control monitoring, Ampliﬁer Short, Single Ended/Differential 

Input connector 

DSUB-9, BNC, Banana (others on request) 

TEDS support 

Standard + DSI® adapters 

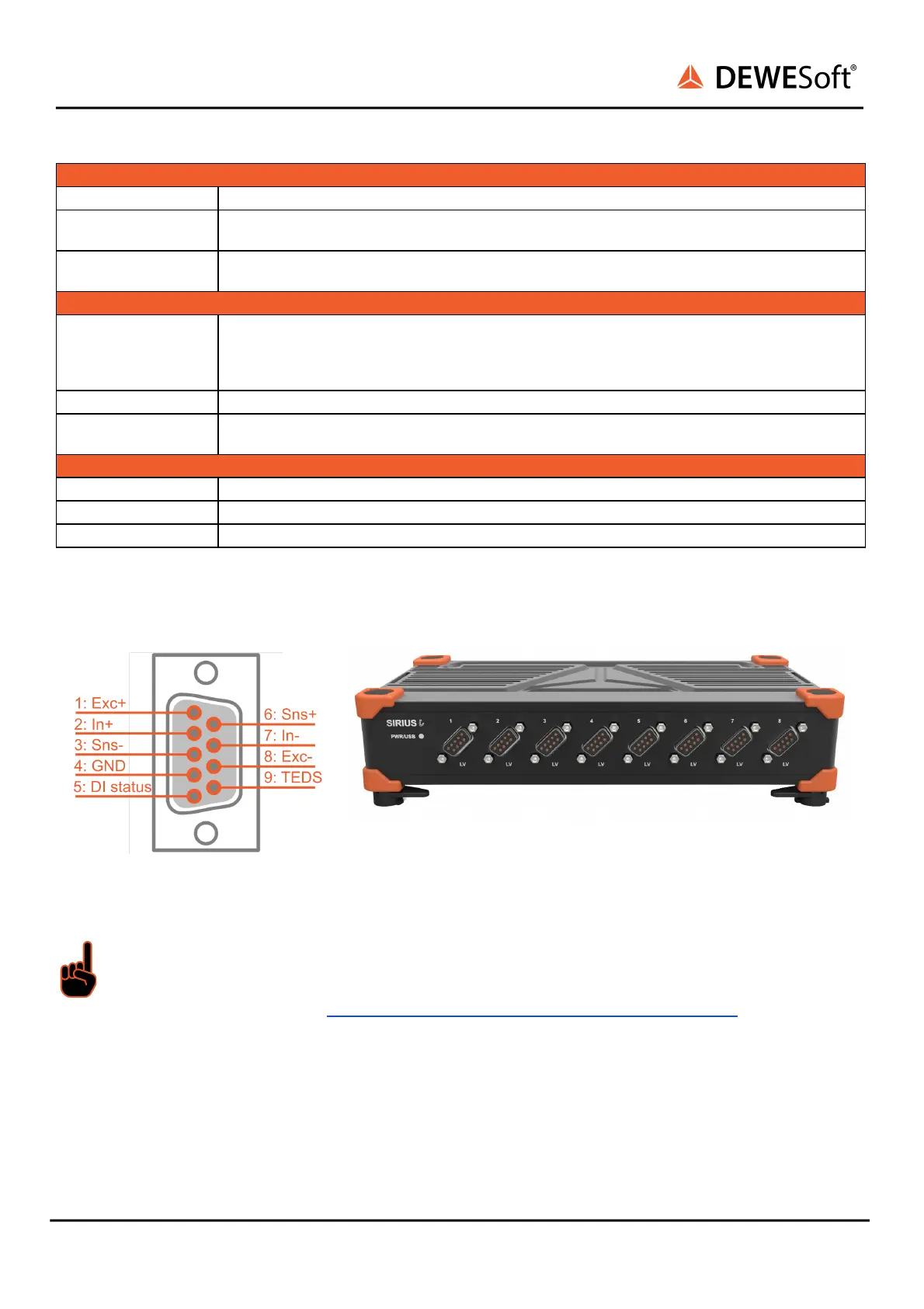

5.11.2. LV 



LV connector: pin-out (DSUB-9 female) 



SIRIUSi-8xLV 



Important 

Digital status input 

Pin 5: DI Status is used for digital status input: i.e. show alarm status in DEWESoft® when a                  

current clamp is open. See “ Accessories and Sensors Technical Reference Manual ”!  

SIRIUS

V20-1 159 / 336  
