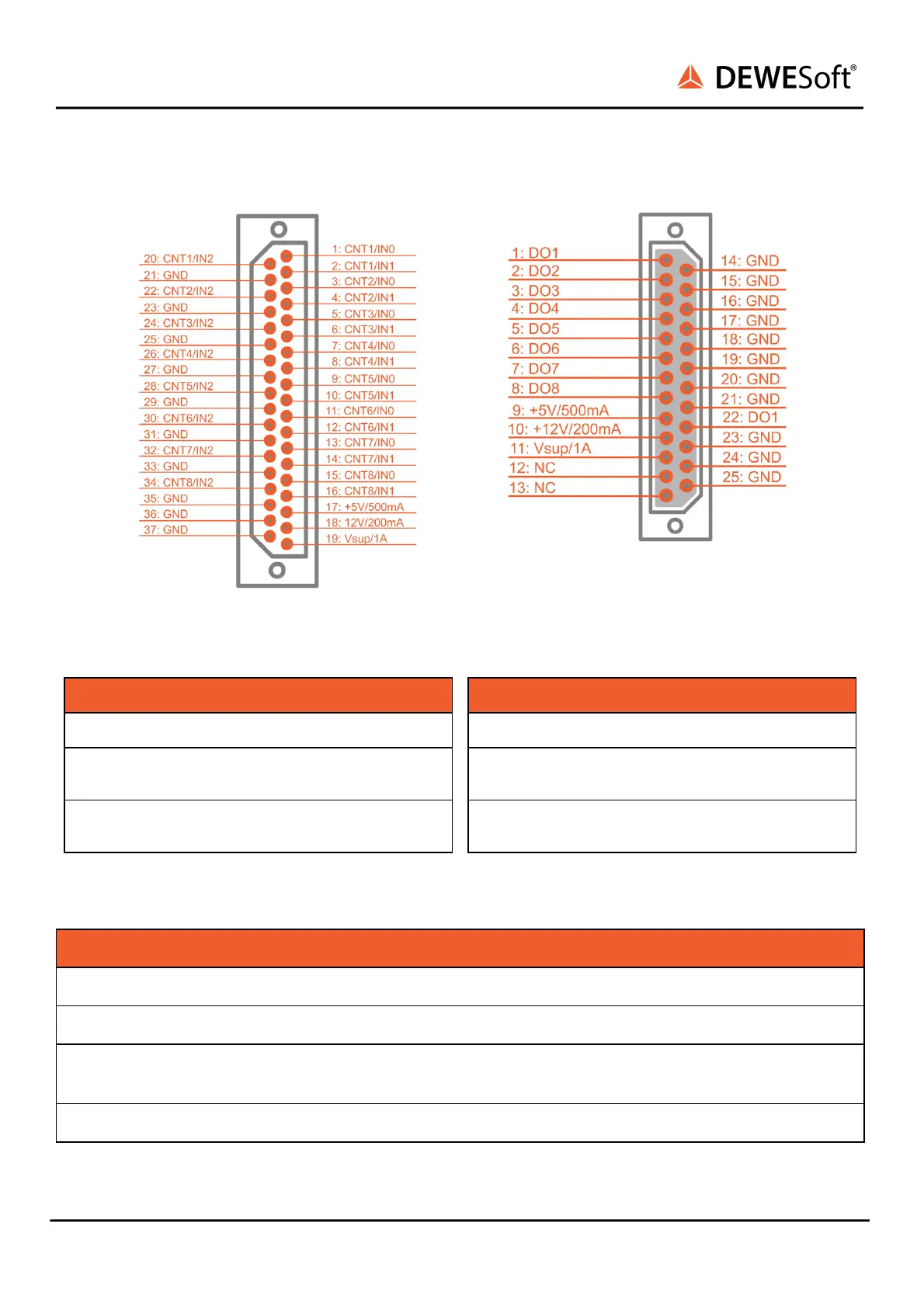

STGM-DB connector: pin-out (DSUB-37 male)  

STGM-DB connector: pin-out (DSUB-25 female) 

Pin 
Name 
Description 
17 
+5V/500mA 
+5 Vdc out 
18 
+12V/200mA 
+12 Vdc if Vsup > 15 V 
Vsup - 2 Vdc if Vsup < 15 V 
19 
Vsup/1A 
SIRIUS input DC 
supply voltage 


Pin 
Name 
Description 
9 
+5V/500mA 
+5 Vdc out 
10 
+12V/200mA 
+12 Vdc if Vsup > 15 V 
Vsup - 2 Vdc if Vsup < 15 V 
11 
Vsup/1A 
SIRIUS input DC 
supply voltage 




Counters parallel use 
8 counter / 24 digital inputs fully synchronised with analog 
Modes 
counting, waveform timing, encoder, tacho, gear-tooth sensor 
Digital out 
High side switch to supply voltage with internal 3.9 kΩ pull 
down, max. 150 mA, short circuit protected. 
Connector type 
DSUB-37 male, DSUB-25 female 
SIRIUS
®
V20-1 182 / 336  

DEWESOFT SIRIUS Series Specifications

General

Category	Data Loggers
Manufacturer	DEWESOFT
Series	SIRIUS
Resolution	24-bit
Interface	USB, EtherCAT
Software	DEWESoft X
Channels	Expandable
Sampling Rate	Up to 200 kS/s per channel
Input Types	Voltage, Current, IEPE, Strain, Thermocouple, RTD, Resistance, Digital, Counter
Input Voltage Range	±10 V, ±200 V
Isolation	Channel-to-channel and channel-to-ground
Connectivity	Ethernet, USB
Operating Temperature	-10 °C to +50 °C
Storage Temperature	-20 °C to +70 °C
Power Supply	10 to 30 V DC
Dimensions	Varies depending on module configuration
Weight	Varies depending on module configuration
Analog Inputs	Yes, depending on module configuration
