Sampling and digital filter 

Example 

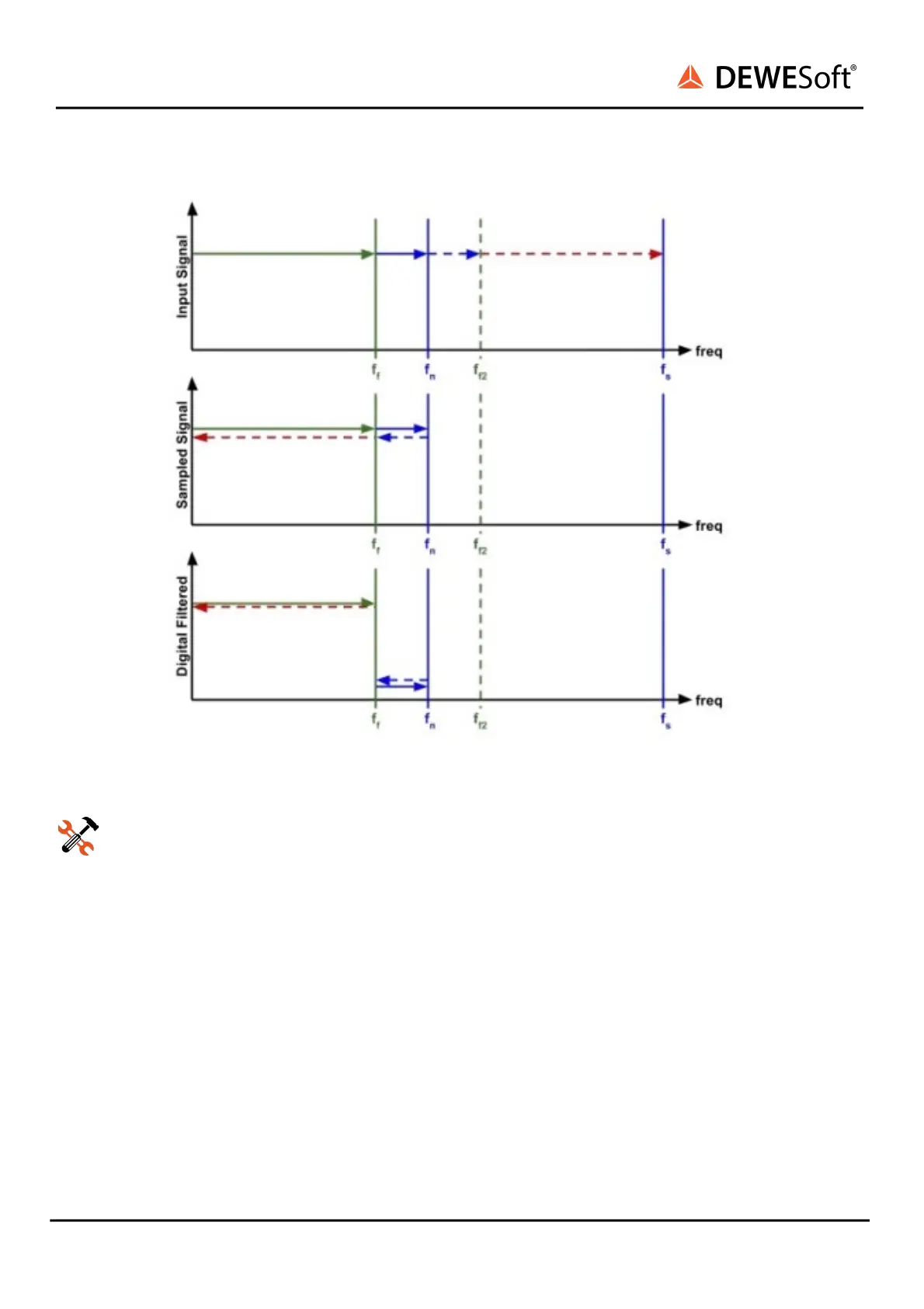

Legend for illustration “Sampling and digital filter”, from left to right: 
● f
f
: Filter frequency: e.g. 800 Hz 
● f
n
: Nyquist frequency: e.g. 1 kHz 
● f
f2
: f
s
-f
f
= 1.2 kHz 
● f
s
: Sampling frequency: e.g. 2 kHz 
Sampled Signal: Since we have a sampling frequency of 2 kHz all signals over 1 kHz are folded back to                    
the Nyquist band (due to aliasing) when they are sampled by the AD converter (dashed lines in                 
Illustration “Sampling and Digital Filter”). Thus the Sampled Signal will already contain the wrong signal               
components. 
The digital filter will now attenuate all frequencies of the Sampled Signal (which already contains the                
aliased signals) that are higher than 800 Hz. 
