SIRIUS
®
TECHNICAL REFERENCE MANUAL

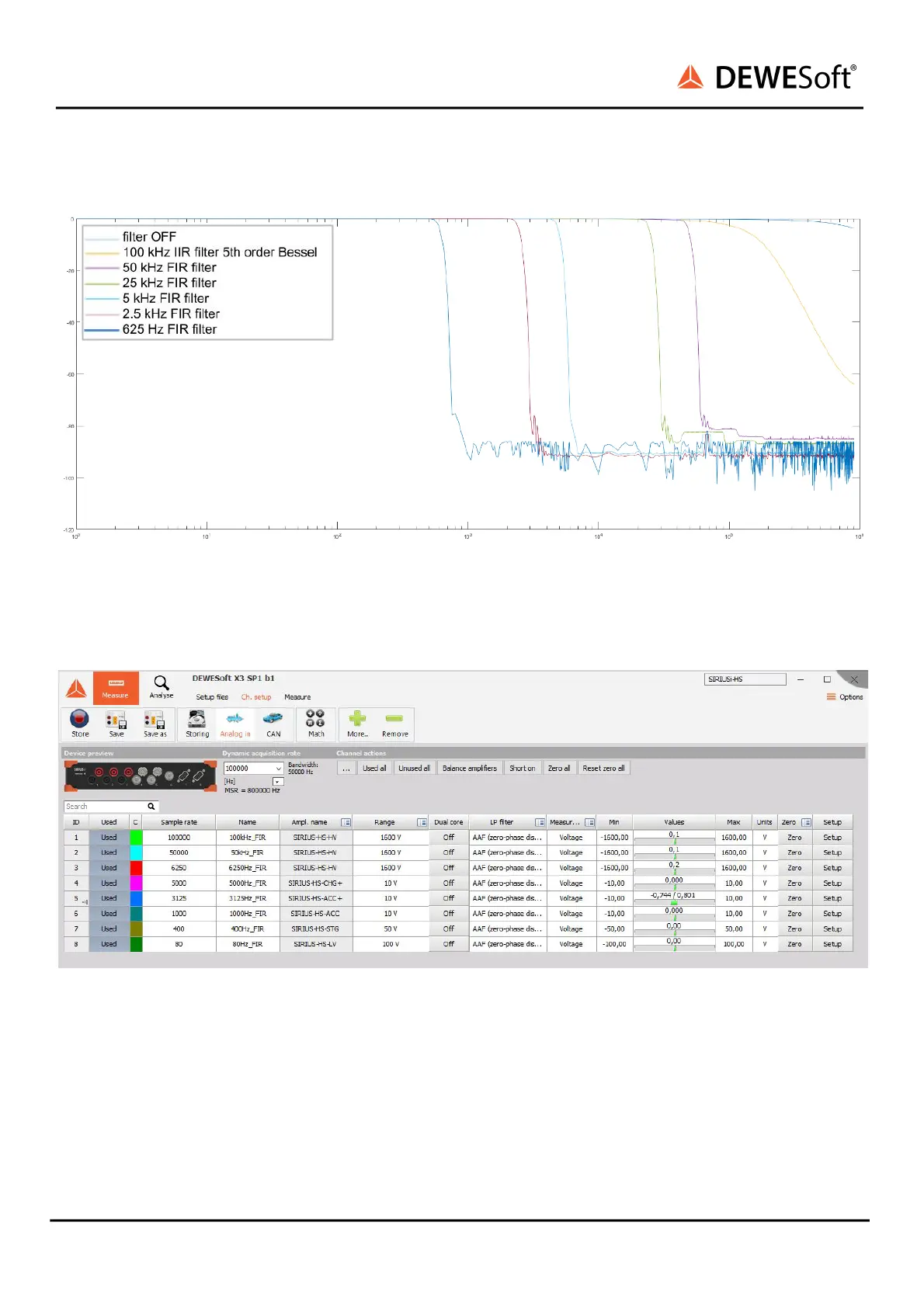

With this setup characteristic of each filter was measured. Illustration below shows the result of this
measurement.
Measurement results of FIR filters and 100 kHz hardware filter
Illustration below “ Example channel setup in X3 ” shows an example of an updated version of the AAF
used in a setup. Main sampling frequency is no longer 1 MHz, filters are enabled automatically, sample
rate dividers are no longer required.
Example channel setup in X3
SIRIUS
®
V20-1 296 / 336
