Digi DC-150 - Programming Screen for Task Order; Programming Task Order

100

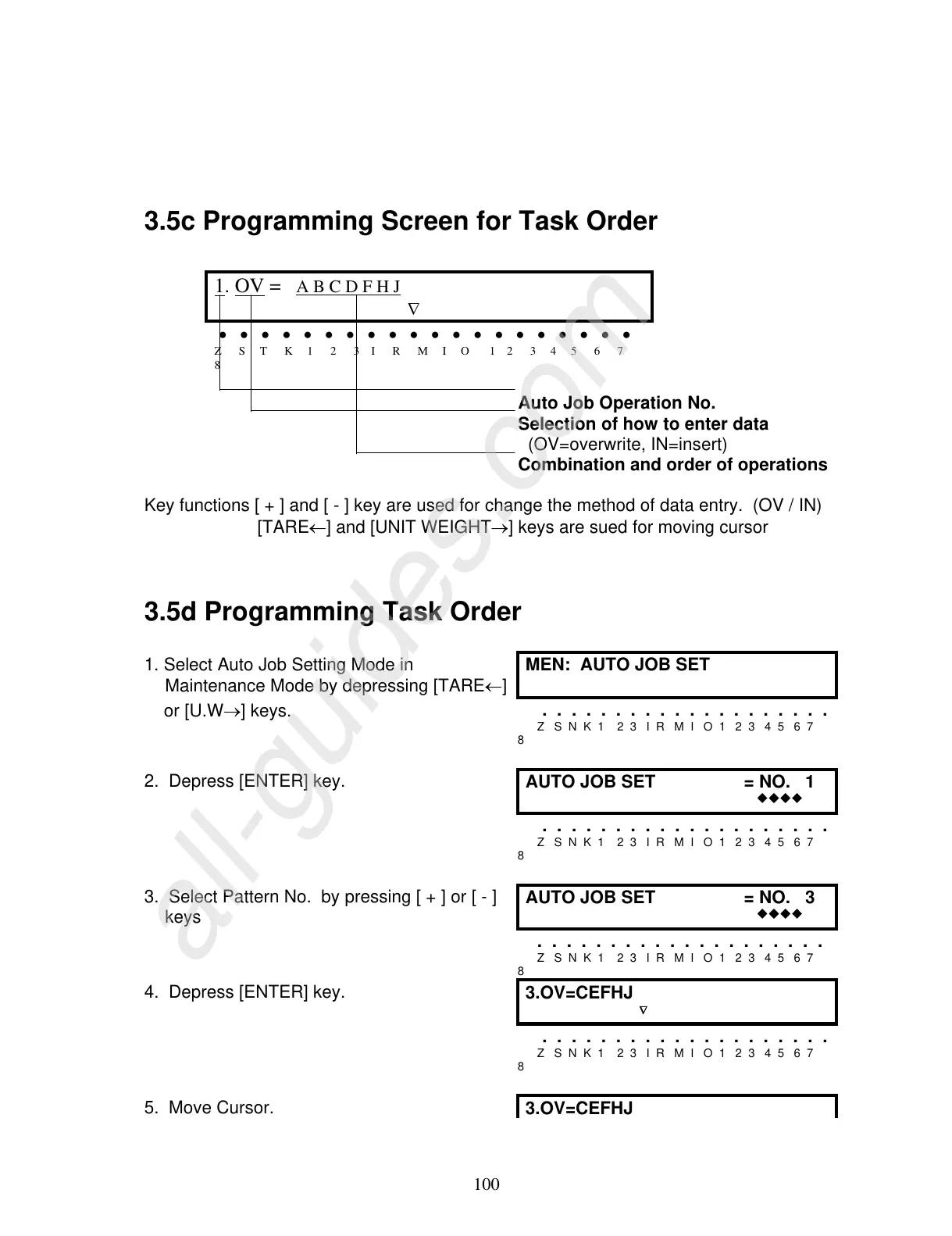

3.5c Programming Screen for Task Order
1. OV = A B C D F H J
∇
• • • • • • • • • • • • • • • • • • • •
Z S T K 1 2 3 I R M I O 1 2 3 4 5 6 7
8
Auto Job Operation No.
Selection of how to enter data
(OV=overwrite, IN=insert)
Combination and order of operations
Key functions [ + ] and [ - ] key are used for change the method of data entry. (OV / IN)
[TARE←] and [UNIT WEIGHT→] keys are sued for moving cursor
3.5d Programming Task Order
1. Select Auto Job Setting Mode in
Maintenance Mode by depressing [TARE←]
MEN: AUTO JOB SET
or [U.W→] keys.
. . . . . . . . . . . . . . . . . . . .
Z S N K 1 2 3 I R M I O 1 2 3 4 5 6 7
8
2. Depress [ENTER] key.
AUTO JOB SET = NO. 1

. . . . . . . . . . . . . . . . . . . .
Z S N K 1 2 3 I R M I O 1 2 3 4 5 6 7
8
3. Select Pattern No. by pressing [ + ] or [ - ]
keys
AUTO JOB SET = NO. 3

. . . . . . . . . . . . . . . . . . . .
Z S N K 1 2 3 I R M I O 1 2 3 4 5 6 7
8
4. Depress [ENTER] key.
3.OV=CEFHJ
∇
. . . . . . . . . . . . . . . . . . . .
Z S N K 1 2 3 I R M I O 1 2 3 4 5 6 7
8
5. Move Cursor.
3.OV=CEFHJ
