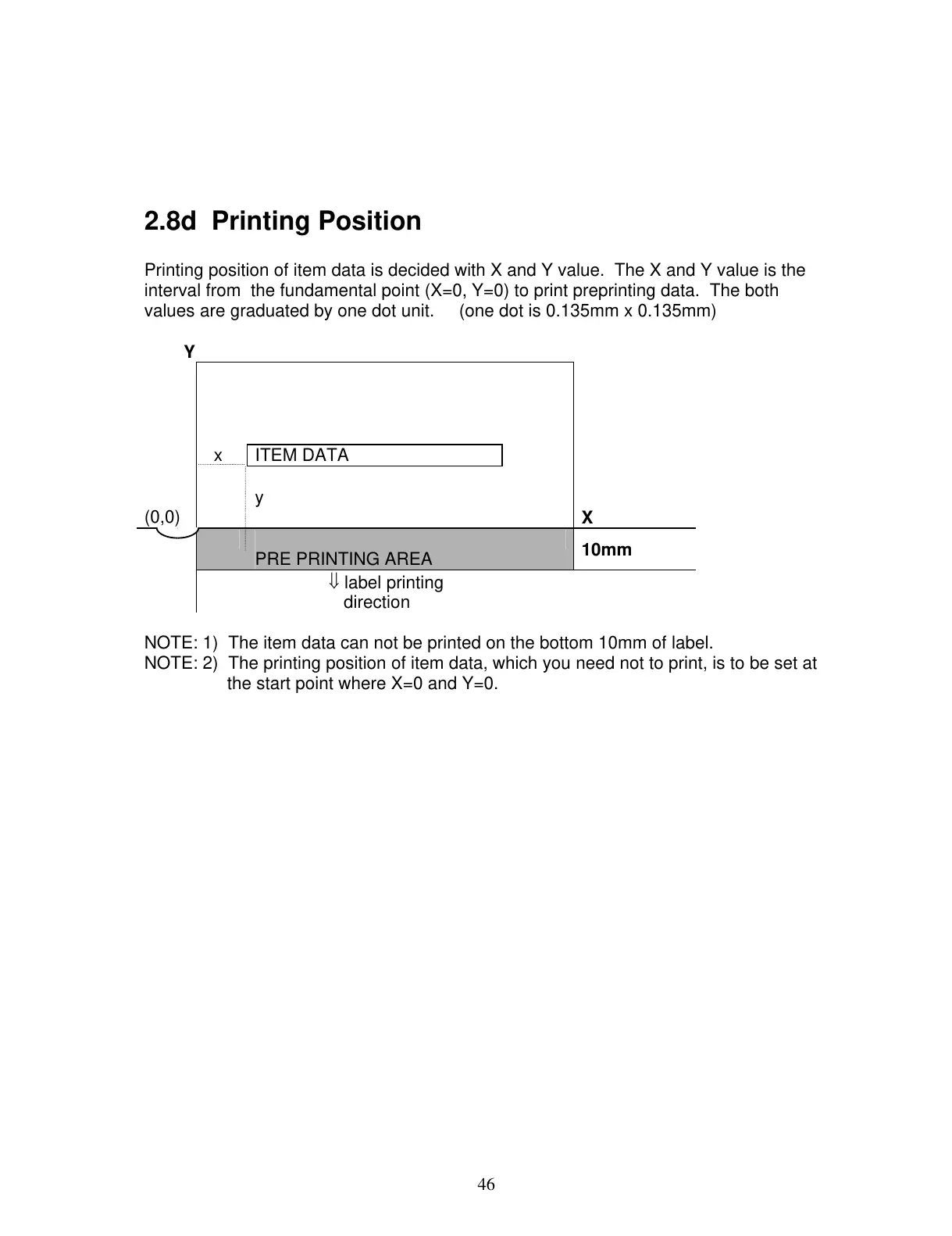

2.8d Printing Position
Printing position of item data is decided with X and Y value. The X and Y value is the
interval from the fundamental point (X=0, Y=0) to print preprinting data. The both
values are graduated by one dot unit. (one dot is 0.135mm x 0.135mm)
Y
x ITEM DATA
(0,0)
y
X
PRE PRINTING AREA
10mm
⇓ label printing
direction
NOTE: 1) The item data can not be printed on the bottom 10mm of label.
NOTE: 2) The printing position of item data, which you need not to print, is to be set at
the start point where X=0 and Y=0.
