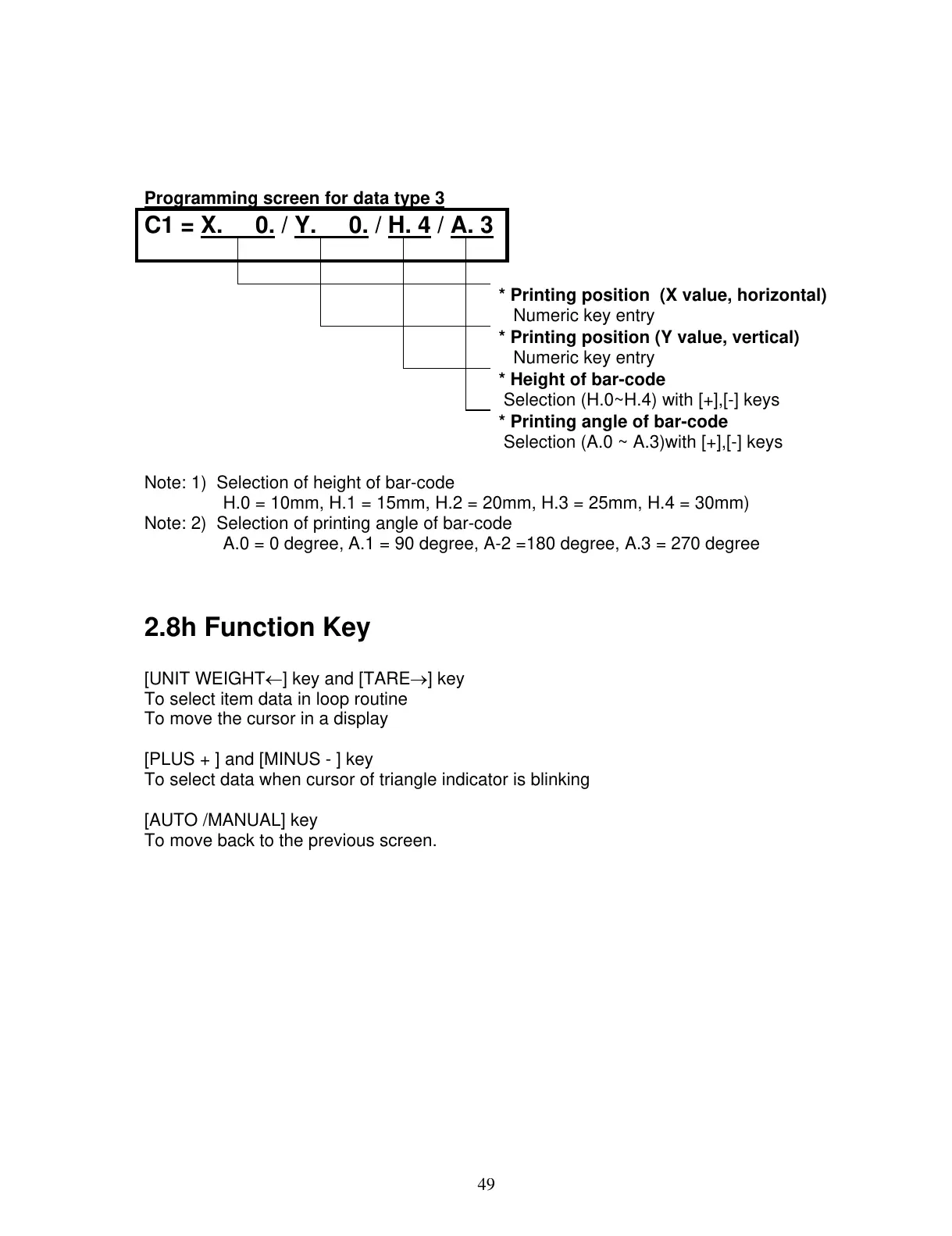

Programming screen for data type 3
C1 = X. 0. / Y. 0. / H. 4 / A. 3
* Printing position (X value, horizontal)
Numeric key entry
* Printing position (Y value, vertical)
Numeric key entry
* Height of bar-code
Selection (H.0~H.4) with [+],[-] keys
* Printing angle of bar-code
Selection (A.0 ~ A.3)with [+],[-] keys
Note: 1) Selection of height of bar-code
H.0 = 10mm, H.1 = 15mm, H.2 = 20mm, H.3 = 25mm, H.4 = 30mm)
Note: 2) Selection of printing angle of bar-code
A.0 = 0 degree, A.1 = 90 degree, A-2 =180 degree, A.3 = 270 degree
2.8h Function Key
[UNIT WEIGHT←] key and [TARE→] key
To select item data in loop routine
To move the cursor in a display
[PLUS + ] and [MINUS - ] key
To select data when cursor of triangle indicator is blinking
[AUTO /MANUAL] key
To move back to the previous screen.
