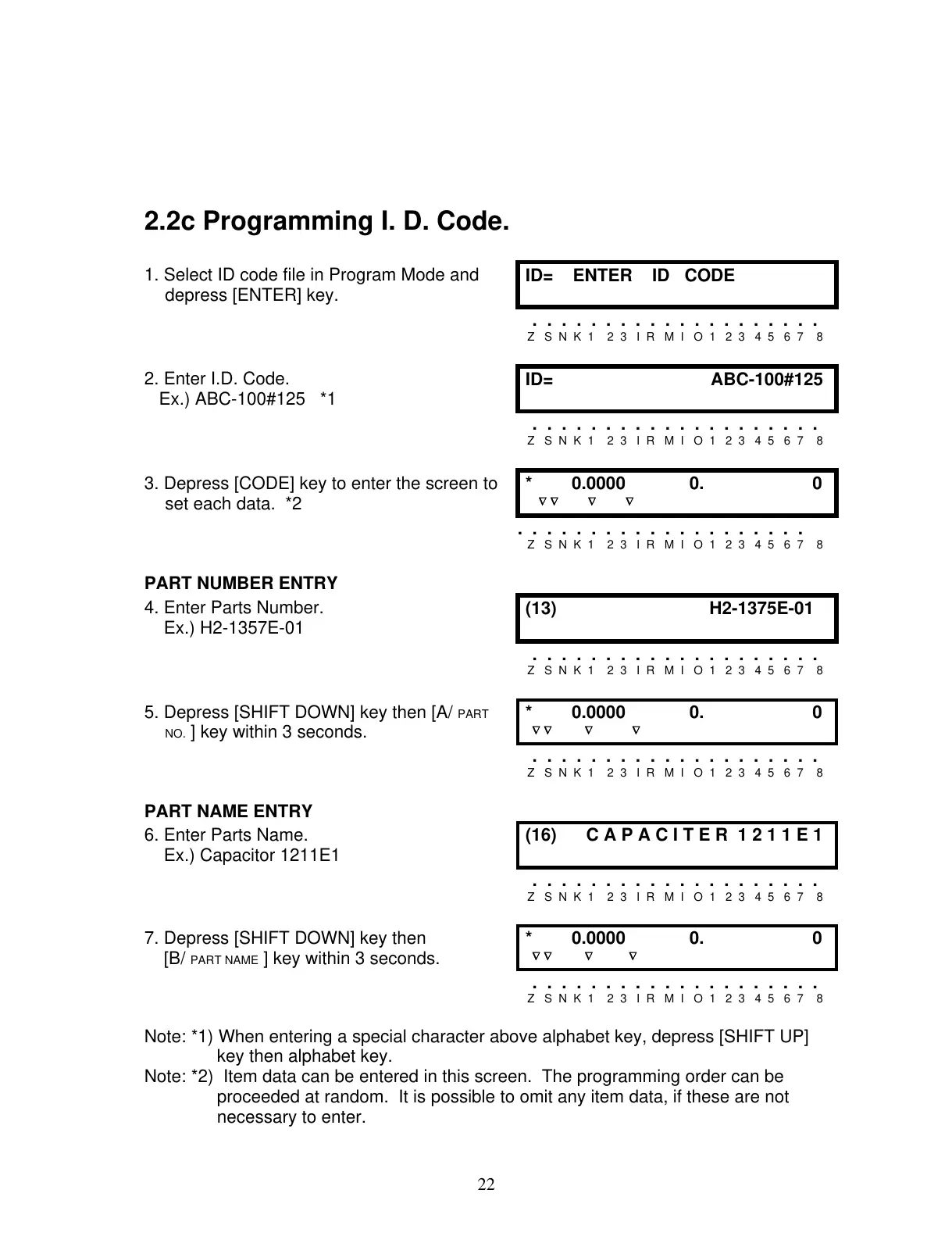

2.2c Programming I. D. Code.
1. Select ID code file in Program Mode and
depress [ENTER] key.
ID= ENTER ID CODE
. . . . . . . . . . . . . . . . . . . .
Z S N K 1 2 3 I R M I O 1 2 3 4 5 6 7 8
2. Enter I.D. Code.
Ex.) ABC-100#125 *1
ID= ABC-100#125
. . . . . . . . . . . . . . . . . . . .
Z S N K 1 2 3 I R M I O 1 2 3 4 5 6 7 8
3. Depress [CODE] key to enter the screen to
set each data. *2
* 0.0000 0. 0
∇ ∇ ∇ ∇
. . . . . . . . . . . . . . . . . . . .
Z S N K 1 2 3 I R M I O 1 2 3 4 5 6 7 8
PART NUMBER ENTRY
4. Enter Parts Number.
Ex.) H2-1357E-01
(13) H2-1375E-01
. . . . . . . . . . . . . . . . . . . .
Z S N K 1 2 3 I R M I O 1 2 3 4 5 6 7 8
5. Depress [SHIFT DOWN] key then [A/ PART
NO.
] key within 3 seconds.
* 0.0000 0. 0
∇ ∇ ∇ ∇
. . . . . . . . . . . . . . . . . . . .
Z S N K 1 2 3 I R M I O 1 2 3 4 5 6 7 8
PART NAME ENTRY
6. Enter Parts Name.
Ex.) Capacitor 1211E1
(16) C A P A C I T E R 1 2 1 1 E 1
. . . . . . . . . . . . . . . . . . . .
Z S N K 1 2 3 I R M I O 1 2 3 4 5 6 7 8
7. Depress [SHIFT DOWN] key then
[B/ PART NAME ] key within 3 seconds.
* 0.0000 0. 0
∇ ∇ ∇ ∇
. . . . . . . . . . . . . . . . . . . .
Z S N K 1 2 3 I R M I O 1 2 3 4 5 6 7 8
Note: *1) When entering a special character above alphabet key, depress [SHIFT UP]
key then alphabet key.
Note: *2) Item data can be entered in this screen. The programming order can be
proceeded at random. It is possible to omit any item data, if these are not
necessary to enter.
