Digi DC-150 - Label Angle and Bar-Code Angle; Character Size and Magnifications; (Height of Bar-Code)

47

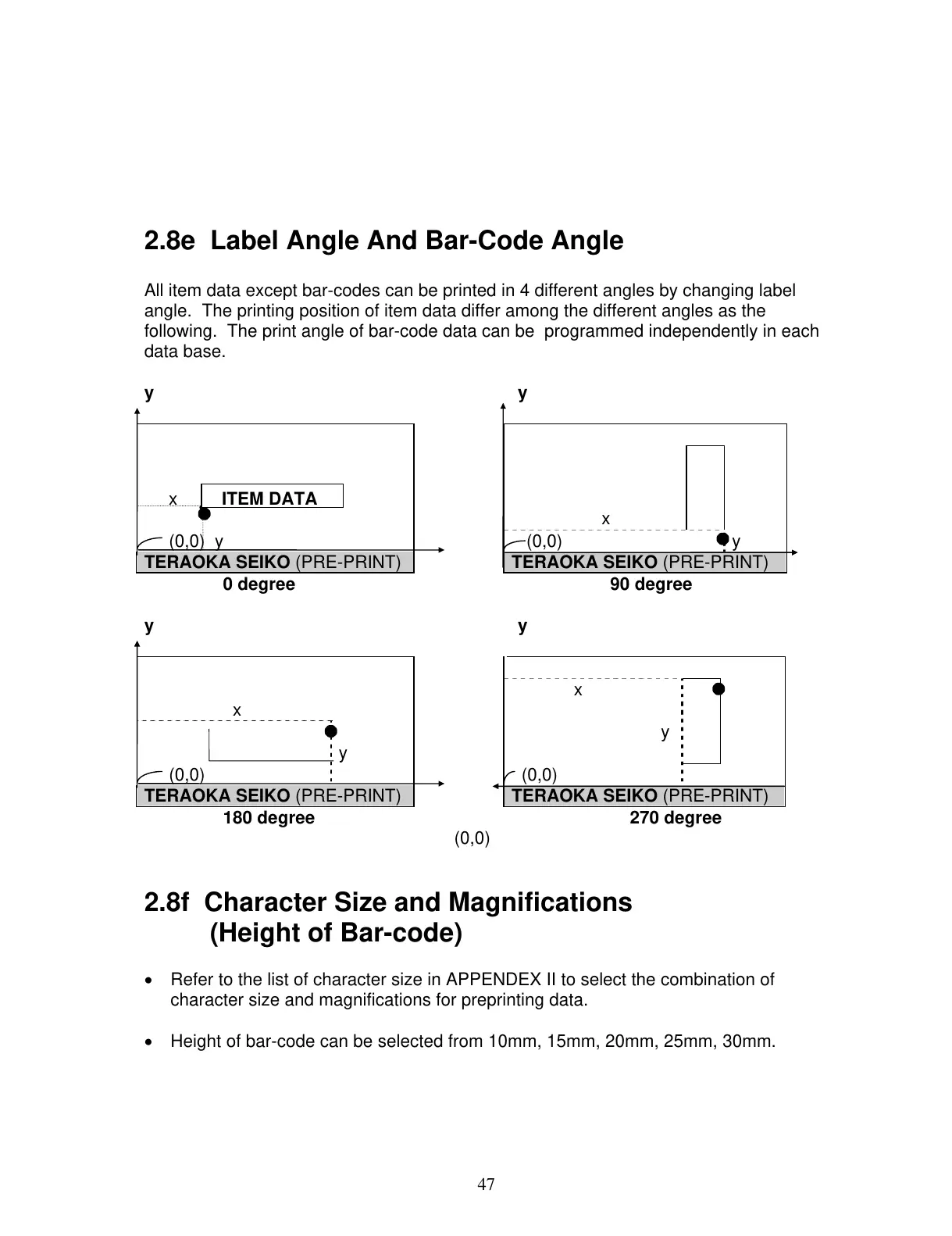

2.8e Label Angle And Bar-Code Angle
All item data except bar-codes can be printed in 4 different angles by changing label
angle. The printing position of item data differ among the different angles as the
following. The print angle of bar-code data can be programmed independently in each
data base.
y y
x ITEM DATA
x
(0,0) y (0,0) y
TERAOKA SEIKO (PRE-PRINT) TERAOKA SEIKO (PRE-PRINT)
0 degree 90 degree
y y
x
x
y
y
(0,0) (0,0)
TERAOKA SEIKO (PRE-PRINT) TERAOKA SEIKO (PRE-PRINT)
180 degree 270 degree
(0,0)
2.8f Character Size and Magnifications
(Height of Bar-code)
• Refer to the list of character size in APPENDEX II to select the combination of
character size and magnifications for preprinting data.
• Height of bar-code can be selected from 10mm, 15mm, 20mm, 25mm, 30mm.
