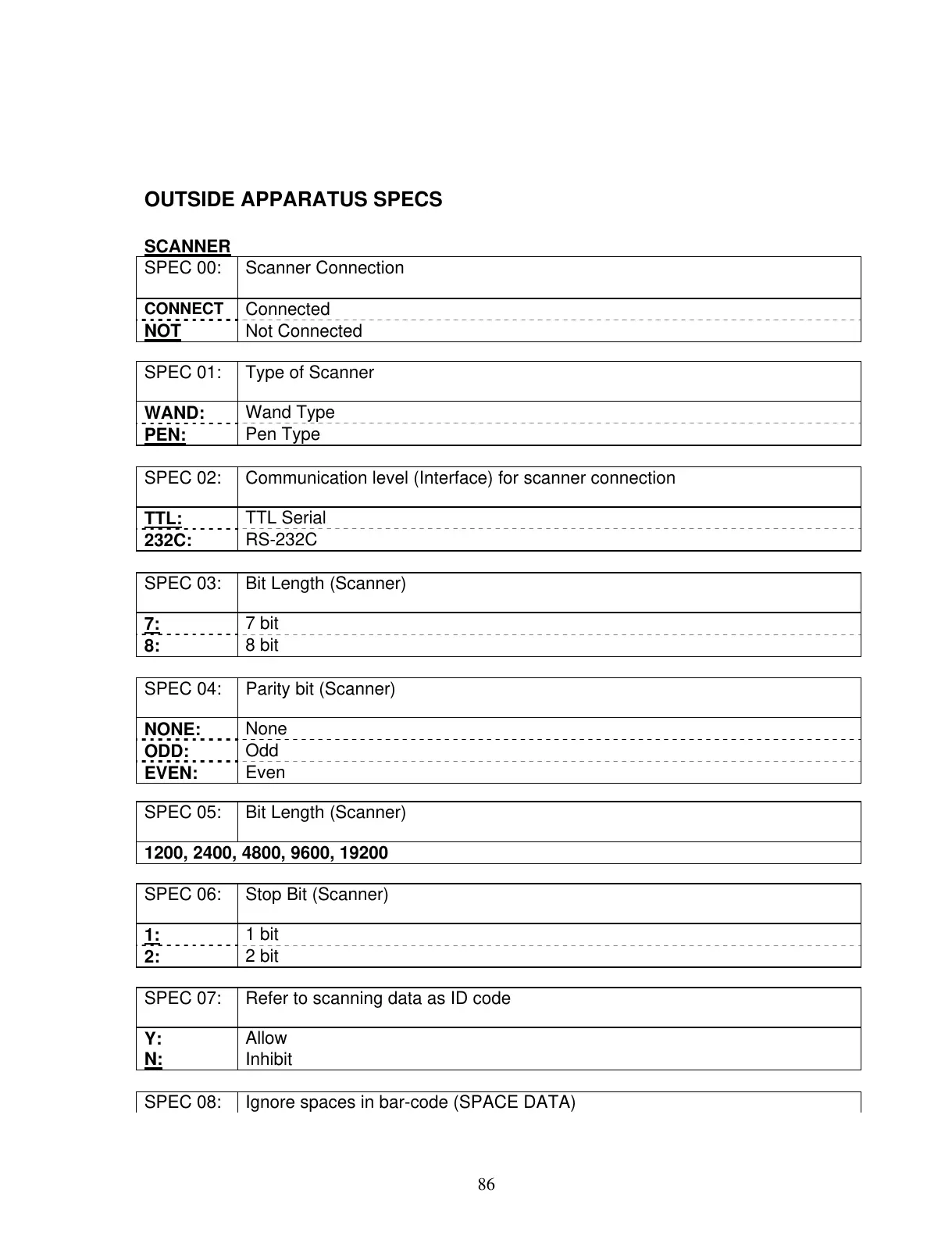

OUTSIDE APPARATUS SPECS
SCANNER
SPEC 00: Scanner Connection
CONNECT
Connected
NOT
Not Connected
SPEC 01: Type of Scanner
WAND:
Wand Type
PEN:
Pen Type
SPEC 02: Communication level (Interface) for scanner connection
TTL:
TTL Serial
232C:
RS-232C
SPEC 03: Bit Length (Scanner)
7:
7 bit
8:
8 bit
SPEC 04: Parity bit (Scanner)
NONE:
None
ODD:
Odd
EVEN:
Even
SPEC 05: Bit Length (Scanner)
1200, 2400, 4800, 9600, 19200
SPEC 06: Stop Bit (Scanner)
1:
1 bit
2:
2 bit
SPEC 07: Refer to scanning data as ID code
Y:
Allow
N:
Inhibit
SPEC 08: Ignore spaces in bar-code (SPACE DATA)
