Scrolling in the Patchbay
To scroll through the channel list (vertically):
1 Move the cursor over a channel name at the left of the
Patching Grid.
2 Press the Up or Down Arrow keys on the keyboard.
To scroll through the hardware I/O list (horizontally):
■ Move the cursor over a hardware I/O channel at the top of
the Patching Grid.
■ Press the Left or Right Arrow keys on the keyboard.
To scroll the Patching Grid, do one of the following:
■ Click the up/down or left/right Patching Grid scroll arrows
to move square by square.
■ Click the up or down Patching Grid double arrows to move
screen by screen.
■ Right-click in the Patching Grid and drag in any direction.
Routing Channels in the Patchbay
To route channels in the Patchbay:
1 Go to a patchbay page by clicking the appropriate I/O tab,
Channel Type tab, and Hardware tab.
2 Place the cursor over the Patching Grid. The cursor changes
to a crosshair, and lines extend above and to the left of the
current cursor location to identify the column and row in
which it is located.
3 Click in the row for the channel and in the column for the
hardware I/O source. For example, to route Stage Rack analog
input 4 to D-Show Input Channel 4, click in row 4, column 4
as shown below.
4 Repeat for other channels as needed.
Using the Arrow Keys to Route Channels
You can also use the Arrow keys instead of the trackball to as-
sign routing.
To route channels using the Arrow Keys on the keyboard:
1 Place the cursor over the Patching Grid so that the cursor
changes to the crosshair.
2 Press the Left or Right Arrow keys to move the crosshair to
the next or previous hardware I/O column; press the Down or
Up Arrow keys to move the cursor to the next or previous
D-Show channel.
3 When the crosshair is over the correct square in the grid,
press Enter to assign the patch.

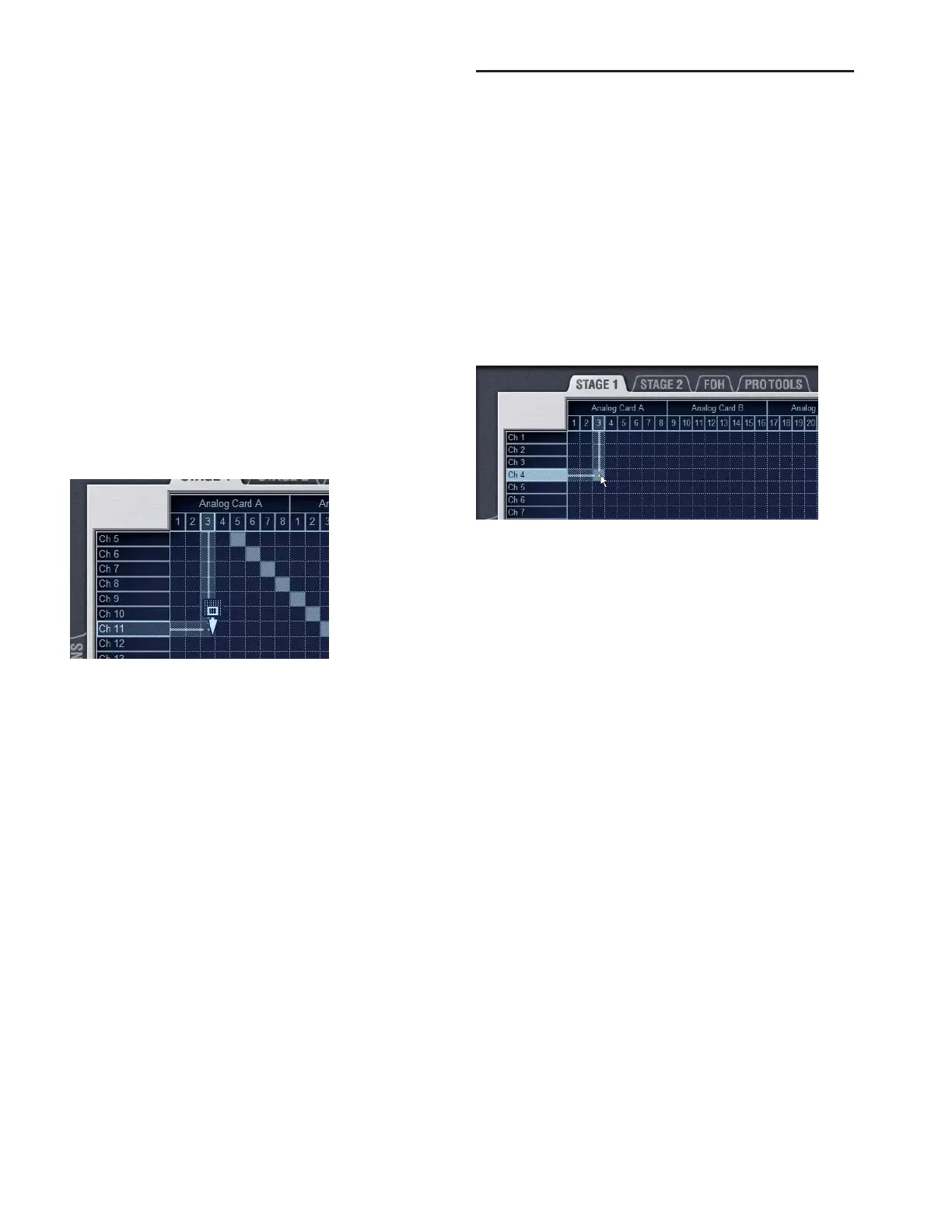

Scrolling the Patching Grid by right-clicking and dragging
Routing a hardware input to an Input Channel
